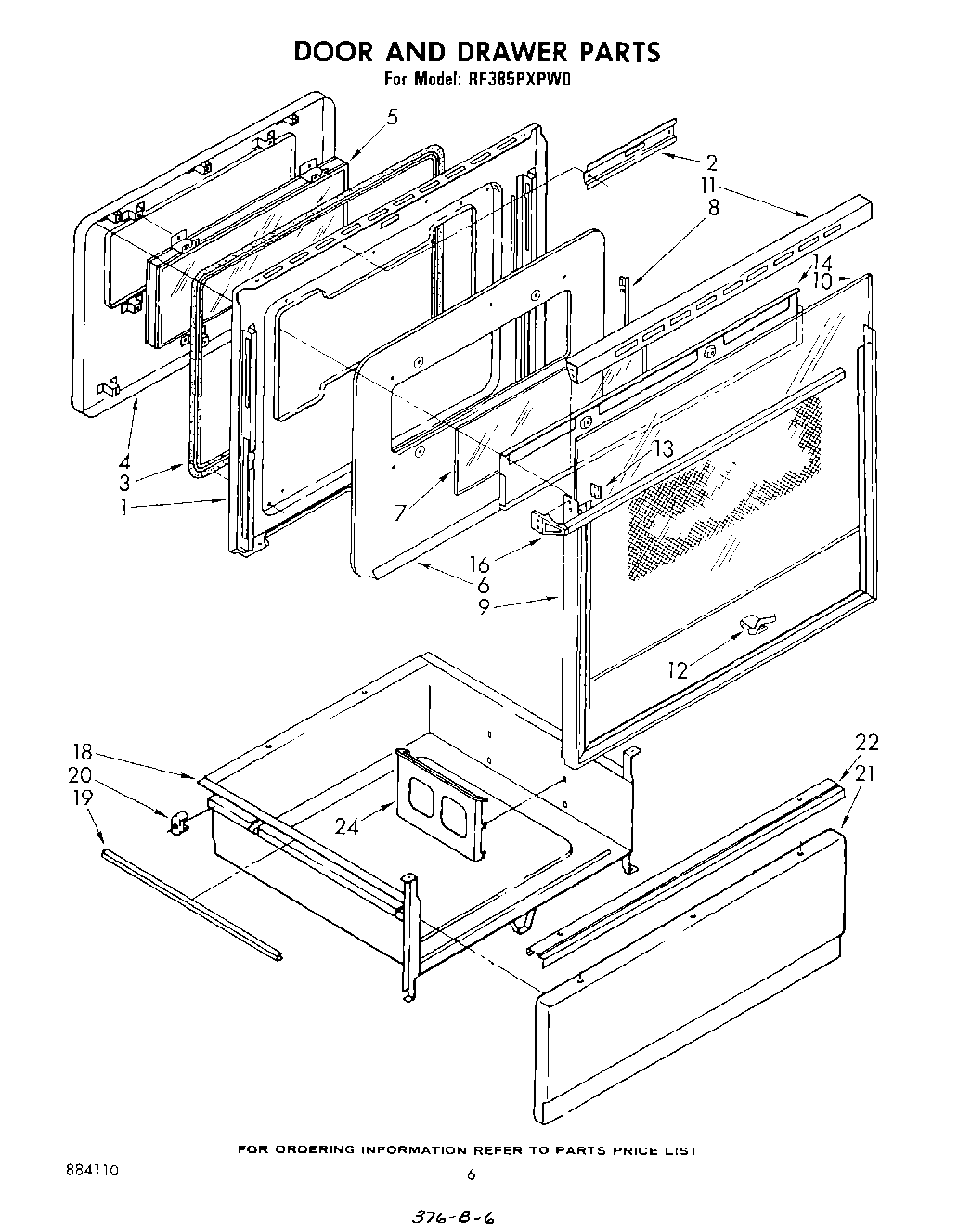

RF385PXPW0 04 – DOOR AND DRAWER

Products

Position	Product
1	Screw (3)
1	Liner, Door
2	Screw (2)
2	Channel, Latch
3	Seal, Fiberglass
4	Panel, Inner
5	Window Package
6	Retainer, Insulation
7	Glass (6.81“ x 18.31“)
8	Retainer, Glass (2)
9	frame, door 30“
10	Glass, Outer
11	Top, Door Frame
12	clip, glass (10)
13	screw (3)
14	Baffle, Heat
14	WP90296 Whirlpool Clip
16	WP355515 Whirlpool Screw
16	Handle, Oven Door
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
20	Screw, 10A x 1/2 (2) (Black)
21	WP488787 Whirlpool Refrigerator Screw
21	Panel, Drawer (Platinum)
21	Panel, Drawer (Toast)
21	Panel Drawer (Harvest Gold)
21	Panel Drawer (White)
21	Panel, Drawer (Almond)
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
24	Rack, Literature
