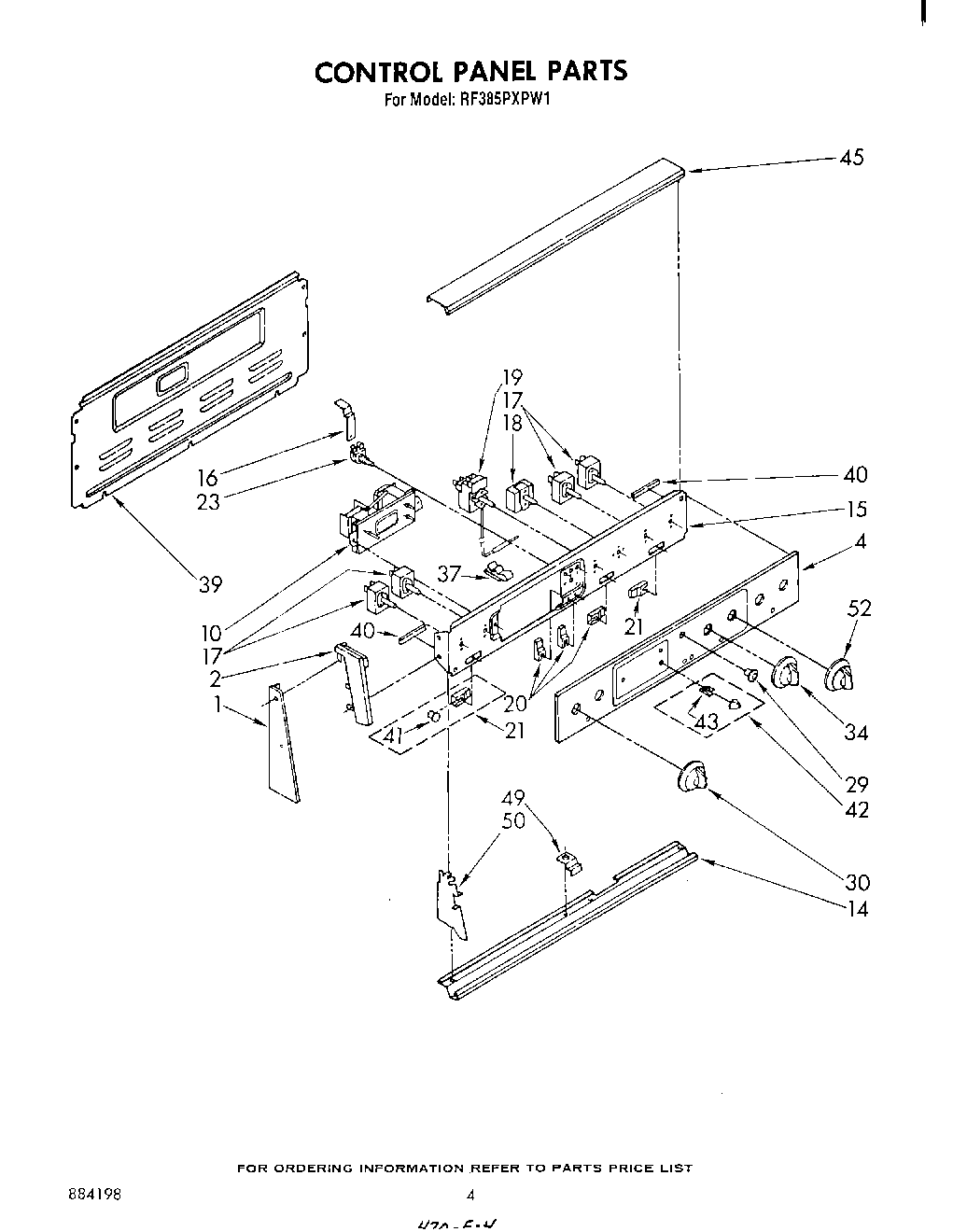

RF385PXPW1 03 – CONTROL PANEL

Products

Position	Product
1	Washer
1	WP3390631 Whirlpool Screw
1	End Trim L.H.
2	End Cap R.H.
2	End Cap L.H.
2	W11693756 Whirlpool Screw Assembly
4	Control Panel, Glass
10	Timer, Digital
14	Bottom Trim
15	Bracket, Control
15	Washer
16	Screw,
16	Brace, Control Bracket
17	W10900107 Whirlpool Oven Surface Element Switch
18	Switch, Selector
18	WP486579 Whirlpool Air Conditioner Screw
19	Thermostat, Oven Pyro
19	WP313808 Whirlpool Screw
20	Light, Indicator (Oven, Lock, Clean) (Includes Illus. 41)
21	Light, Indicator (Surface Unit) (2) (Includes Illus. 41)
23	Switch, Oven Light
23	Lockwasher
29	Bezel Switch (1)
30	Knob, Control (4)
34	Screw
34	Knob, Control (2)
37	Clip, Tube
39	Harness-Conduit Asm.
39	SCREW
40	Seal, Foam
41	Lens (4)
42	WP3169181 Whirlpool Knob
43	Spring (3)
45	Trim, Top
49	Screw
49	Support, Wedge
50	Shield, Glass (2)
50	WP965173 Whirlpool Dishwasher Screw
52	KNOB, CONTROL
52	WP688805 Whirlpool Spring Clip
