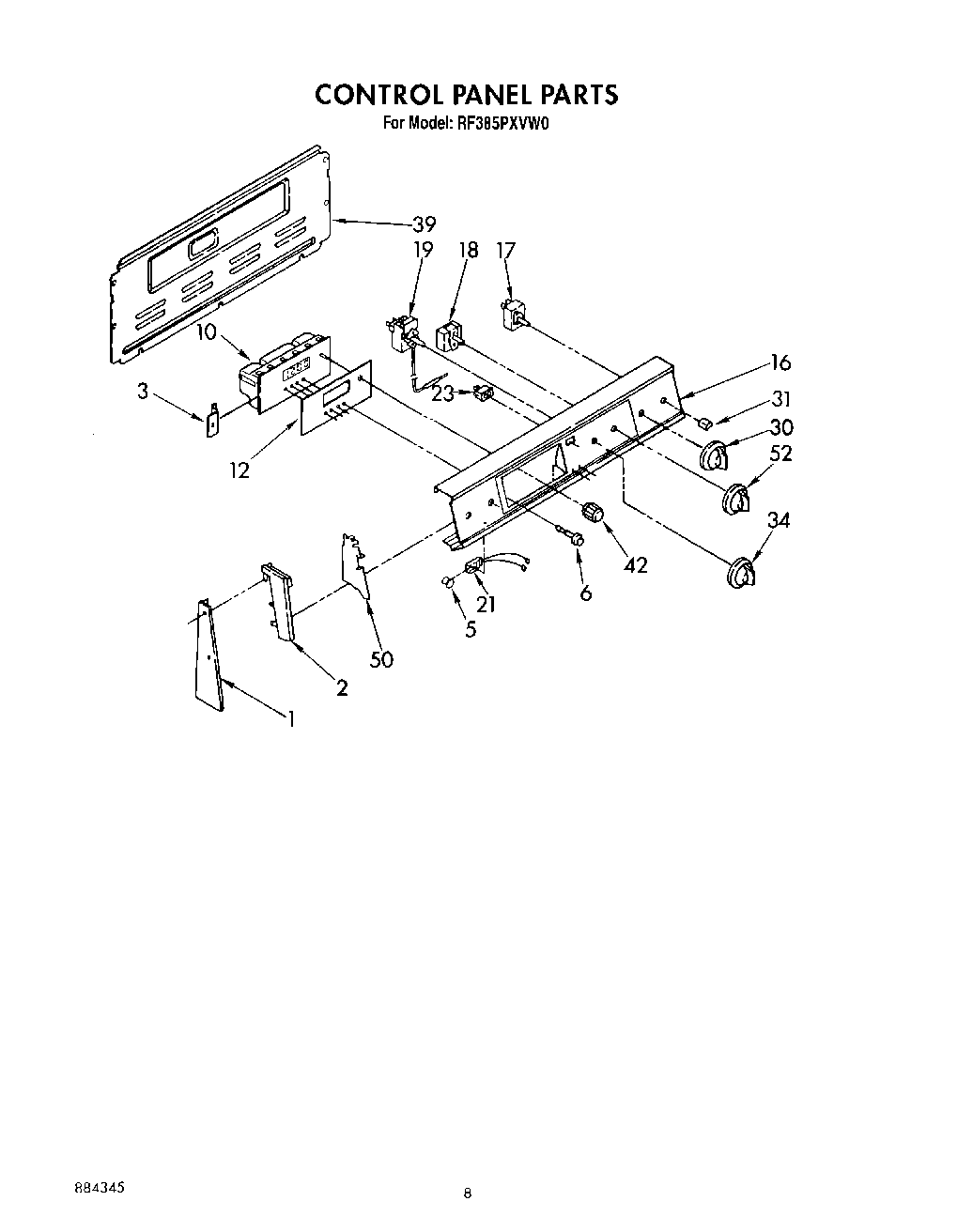

RF385PXVN0 05 – CONTROL PANEL

Products

PositionProduct
1End Trim L.H.
1Washer
1Washer
2End Cap L.H.
2End Cap R.H.
2Screw,
3Bracket, Timer (2)
5Lens, Amber
6Sleeve-Igniter Wire (Lt. or Rt.)
10Timer
12Glass, Timer
16Control, Panel
17WP3148952 Whirlpool Oven Infinite Switch
17WP3149400 Whirlpool Oven Infinite Switch
18Adapter, Terminal
18Switch, Selector (5 Position)
18WP486579 Whirlpool Air Conditioner Screw
19Thermostat, Oven
19WP313808 Whirlpool Screw
21Light, Indicator (Surface Unit (2))
21Indicator Light (1)
21Light, Indicator (250V)
23WP4314961 Whirlpool Lite Switch
30Knob, Control (4)
31WP688805 Whirlpool Spring Clip
31Screw
34Knob, Control (2)
39SCREW
39Harness-Conduit Asm.
42Knob, Bit Generator (Black)
50Shield (2)
50WP965173 Whirlpool Dishwasher Screw
52KNOB, CONTROL
