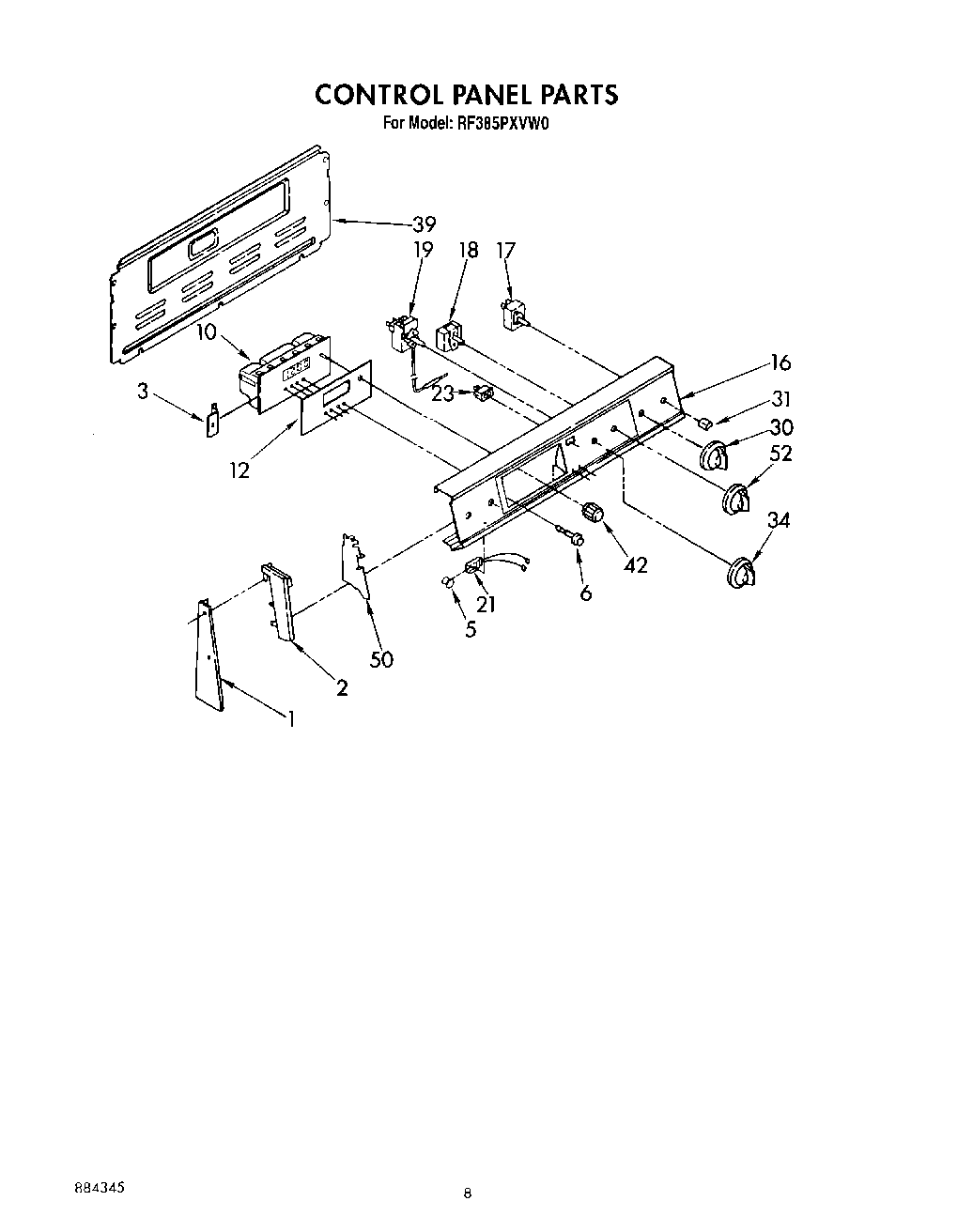

RF385PXVW0 05 – CONTROL PANEL

Products

Position	Product
1	End Trim L.H.
1	Washer
1	Washer
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
3	Bracket, Timer (2)
5	Lens, Amber
6	Sleeve-Igniter Wire (Lt. or Rt.)
10	Timer
12	Glass, Timer
16	Control, Panel
17	WP3148952 Whirlpool Oven Infinite Switch
17	WP3149400 Whirlpool Oven Infinite Switch
18	Adapter, Terminal
18	Switch, Selector (5 Position)
18	WP486579 Whirlpool Air Conditioner Screw
19	Thermostat, Oven
19	WP313808 Whirlpool Screw
21	Light, Indicator (Surface Unit (2))
21	Indicator Light (1)
21	Light, Indicator (250V)
23	WP4314961 Whirlpool Lite Switch
30	Knob, Control (4)
31	WP688805 Whirlpool Spring Clip
31	Screw
34	Knob, Control (2)
39	SCREW
39	Harness-Conduit Asm.
42	Knob, Bit Generator (Black)
50	Shield (2)
50	WP965173 Whirlpool Dishwasher Screw
52	KNOB, CONTROL
