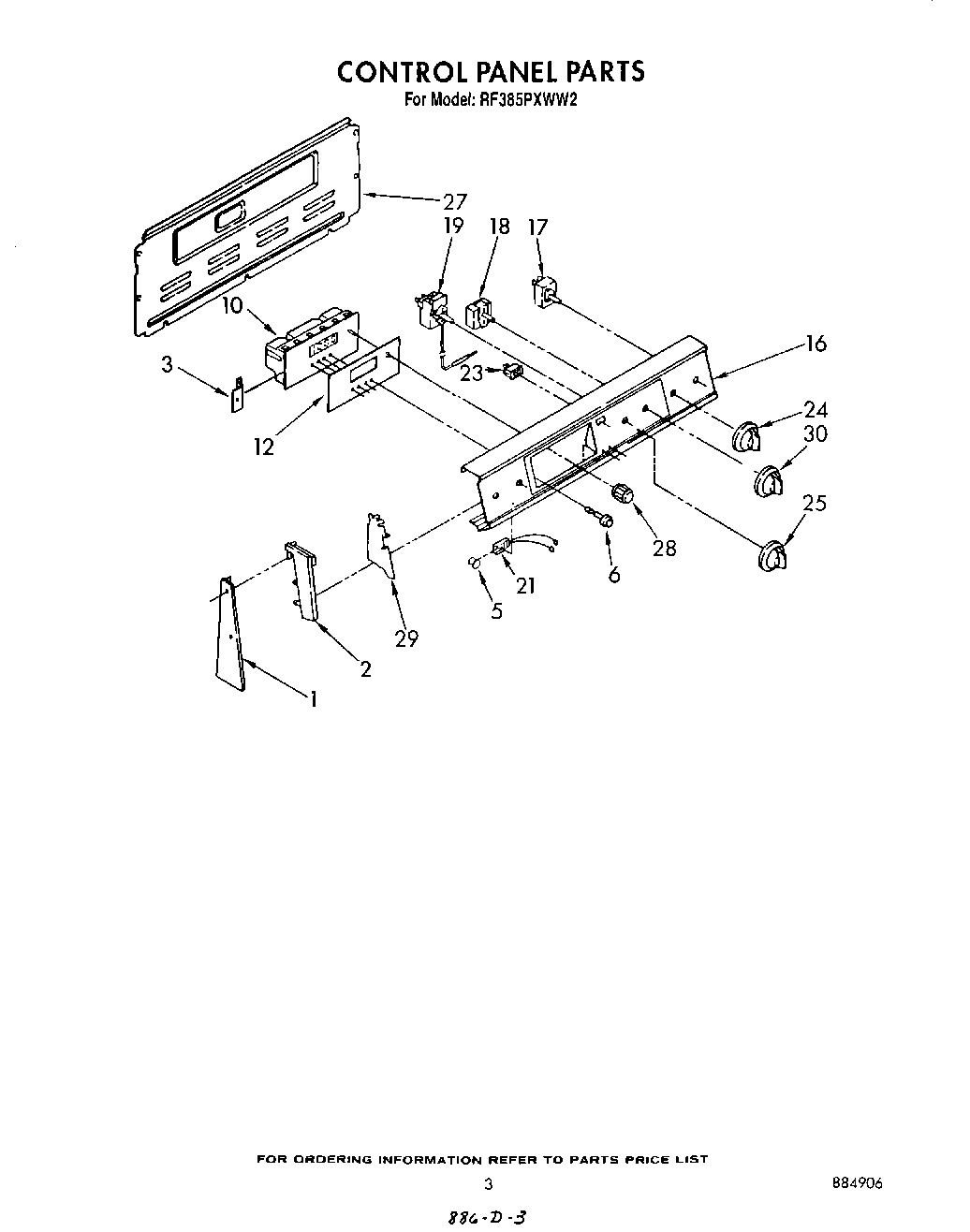

RF385PXWN2 03 – CONTROL PANEL

Products

PositionProduct
1Washer
1Washer
1End Trim L.H.
2End Cap L.H.
2End Cap R.H.
2Screw,
3Bracket, Timer (2)
5Lens, Amber
6Sleeve-Igniter Wire (Lt. or Rt.)
10Timer
12Glass, Timer
16Control, Panel
17WP3149400 Whirlpool Oven Infinite Switch
17WP3148952 Whirlpool Oven Infinite Switch
17WP486579 Whirlpool Air Conditioner Screw
18Switch, Selector
19Thermostat, Oven
19WP313808 Whirlpool Screw
21Indicator Light (1)
21Light, Indicator (250V)
21Light, Indicator (Surface Unit (2))
23WP4314961 Whirlpool Lite Switch
24WP3149983 Whirlpool Knob
25Knob, Oven Temp.
27SCREW
27Harness-Conduit Asm.
28Knob, Bit Generator (Black)
29WP965173 Whirlpool Dishwasher Screw
29Shield (2)
30Knob, Selector
