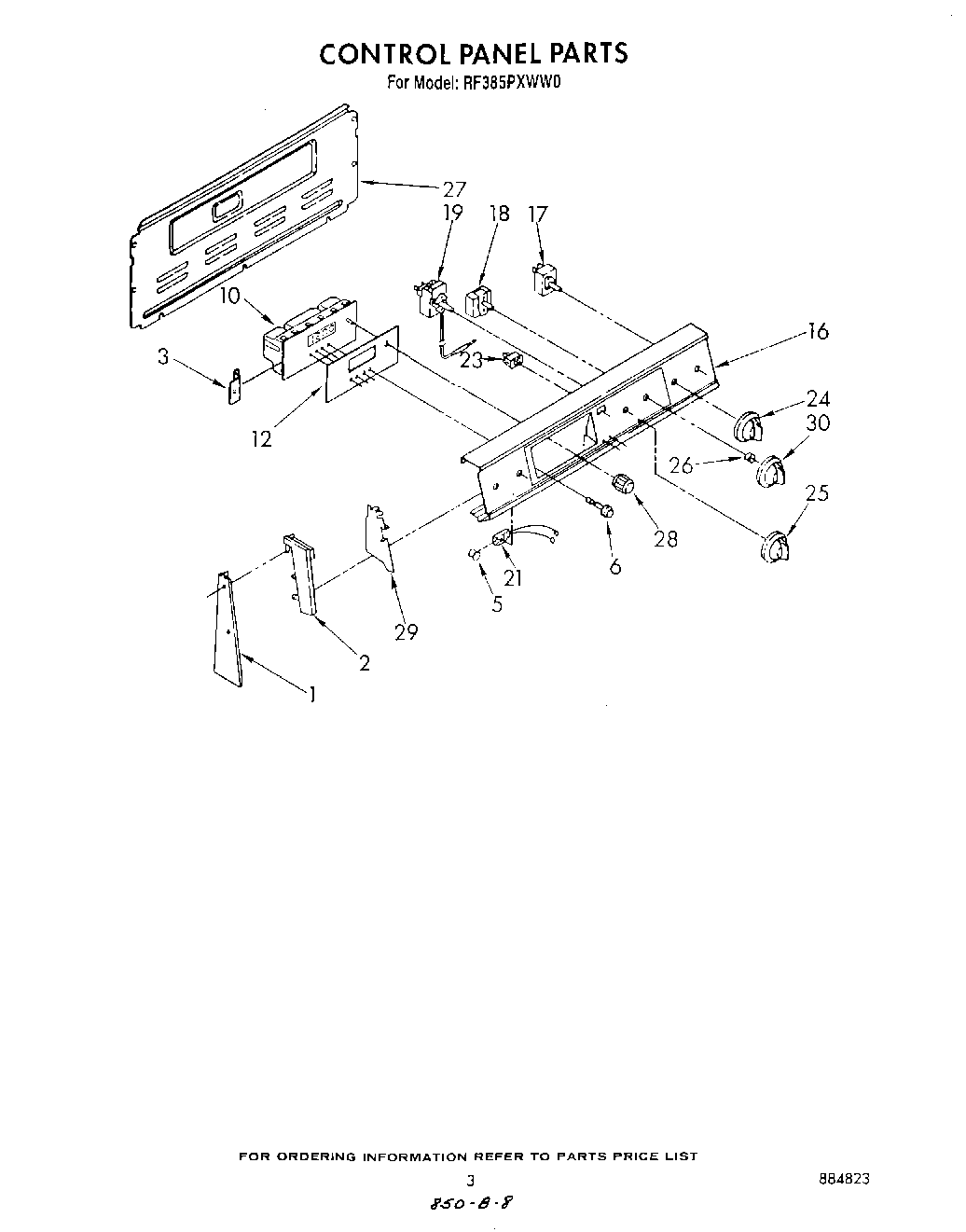

RF385PXWW0 03 – CONTROL PANEL

Products

Position	Product
1	Washer
1	Washer
1	End Trim L.H.
2	End Cap R.H.
2	End Cap L.H.
2	Screw,
3	Bracket, Timer (2)
5	Lens, Amber
6	Sleeve-Igniter Wire (Lt. or Rt.)
10	Timer
12	Glass, Timer
16	Control, Panel
17	WP3149400 Whirlpool Oven Infinite Switch
17	WP3148952 Whirlpool Oven Infinite Switch
18	Switch, Selector (5 Position)
18	WP486579 Whirlpool Air Conditioner Screw
18	Adapter, Terminal
19	Thermostat, Oven
19	WP313808 Whirlpool Screw
21	Indicator Light (1)
21	Light, Indicator (250V)
21	Light, Indicator (Surface Unit (2))
23	WP4314961 Whirlpool Lite Switch
24	WP3149983 Whirlpool Knob
25	Knob, Oven Temp.
26	WP688805 Whirlpool Spring Clip
27	Harness-Conduit Asm.
27	SCREW
28	Knob, Bit Generator (Black)
29	Shield (2)
29	WP965173 Whirlpool Dishwasher Screw
30	Knob, Selector
