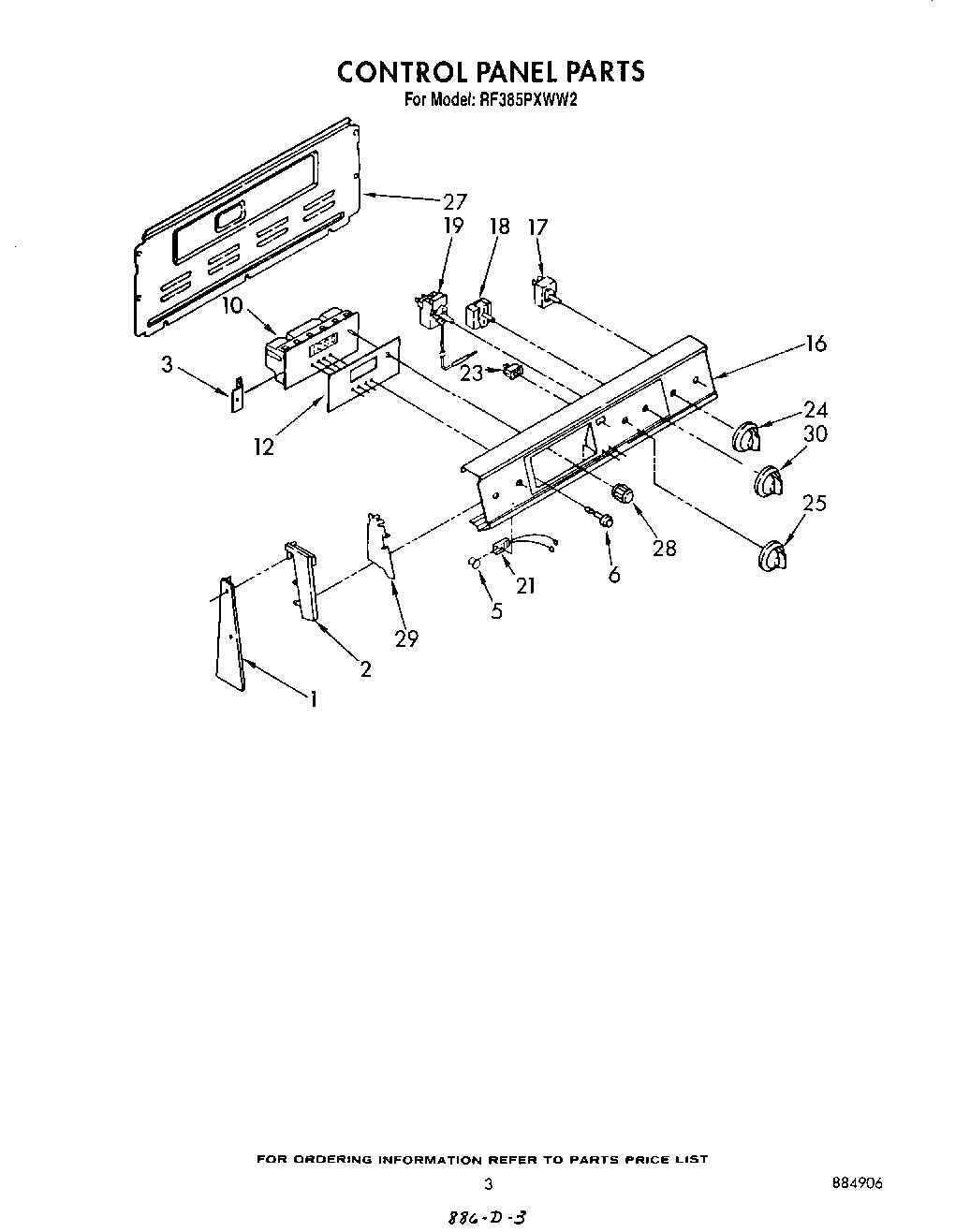

RF385PXWW2 03 – CONTROL PANEL

Products

Position	Product
1	Washer
1	Washer
1	End Trim L.H.
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
3	Bracket, Timer (2)
5	Lens, Amber
6	Sleeve-Igniter Wire (Lt. or Rt.)
10	Timer
12	Glass, Timer
16	Control, Panel
17	WP3149400 Whirlpool Oven Infinite Switch
17	WP3148952 Whirlpool Oven Infinite Switch
17	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector
19	Thermostat, Oven
19	WP313808 Whirlpool Screw
21	Indicator Light (1)
21	Light, Indicator (250V)
21	Light, Indicator (Surface Unit (2))
23	WP4314961 Whirlpool Lite Switch
24	WP3149983 Whirlpool Knob
25	Knob, Oven Temp.
27	SCREW
27	Harness-Conduit Asm.
28	Knob, Bit Generator (Black)
29	WP965173 Whirlpool Dishwasher Screw
29	Shield (2)
30	Knob, Selector
