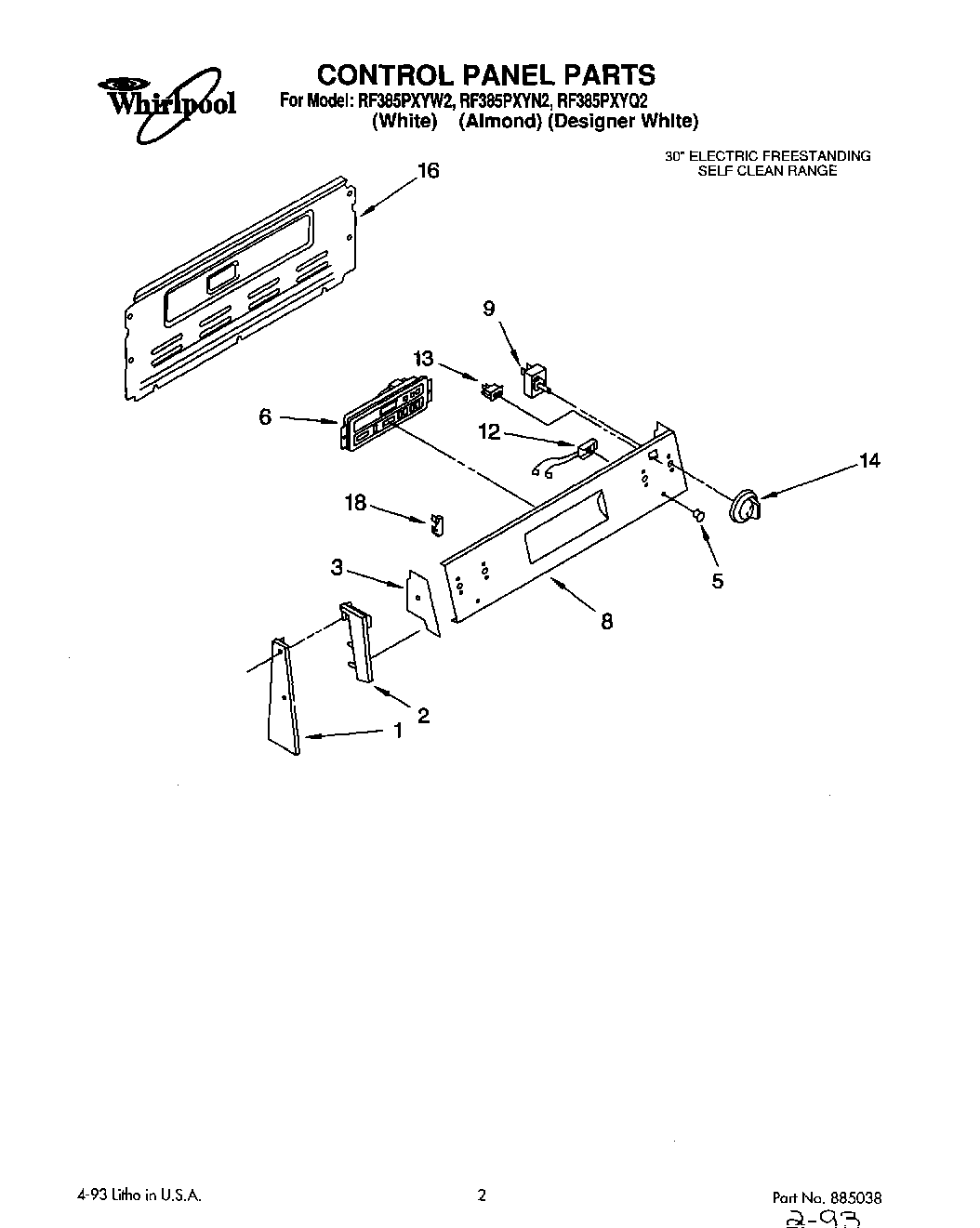

RF385PXYN2 01 – CONTROL PANEL

Products

PositionProduct
1Washer
1Screw 10-32×7/16“
1Screw 10-32×1“
2End Cap L.H.
2End Cap R.H.
2Screw,
3Shield (2)
5Lens, Amber
6WP965173 Whirlpool Dishwasher Screw
6Control, Electronic (White)
6Control, Electronic (Black)
8Control Panel (Designer White)
8Control Panel (White/Almond)
9WP486579 Whirlpool Air Conditioner Screw
9WP3149400 Whirlpool Oven Infinite Switch
9WP3149404 Whirlpool Oven Surface Element Switch
12Light, Indicator (Surface Unit (2))
13Switch, Rocker (White)
13Switch, Rocker
14Knob, (4) Infinite Switch (Designer Mdl)
14Knob, (4) Infinite Switch (White/Almond/Gold)
16Harness-Conduit Asm.
16SCREW
18WP3196548 Whirlpool Thermal Fuse
18Screw (2)
