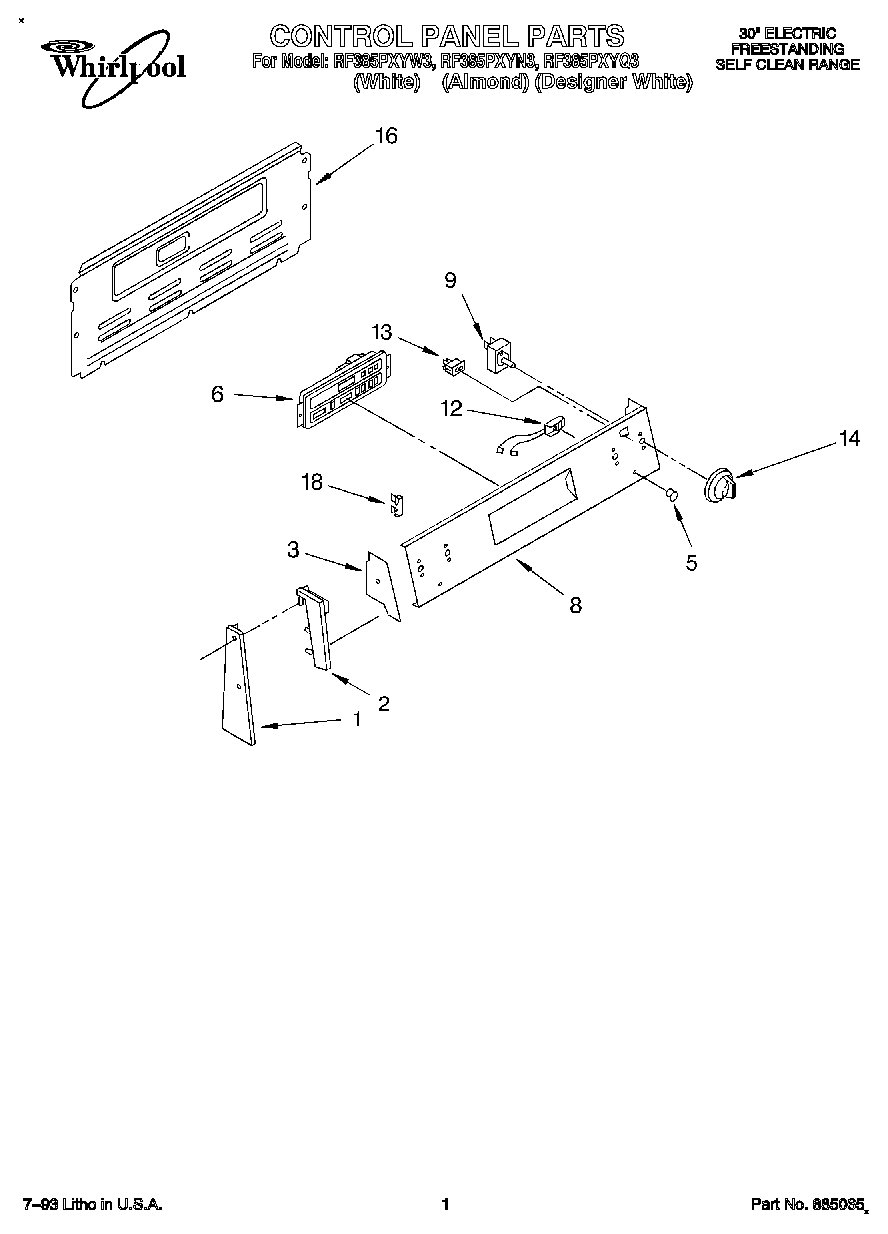

RF385PXYN3 01 – CONTROL PANEL

Products

Position	Product
1	Washer
1	Screw 10-32×7/16“
1	Screw 10-32×1“
2	End Cap R.H.
2	Screw,
2	End Cap L.H.
3	Shield (2)
5	Lens, Amber
6	Control, Electronic (White)
6	WP965173 Whirlpool Dishwasher Screw
6	Control, Electronic (Black)
8	Control Panel (White/Almond)
8	Control Panel (Designer White)
9	WP3149404 Whirlpool Oven Surface Element Switch
9	WP3149400 Whirlpool Oven Infinite Switch
9	Screw, 8-32 x 3/16 (2)
12	Light, Indicator (Surface Unit (2))
13	Switch, Rocker
13	Switch, Rocker (White)
14	Knob, (4) Infinite Switch (White/Almond/Gold)
14	Knob, (4) Infinite Switch (Designer Mdl)
16	Rear Cover Contr
16	SCREW
18	Screw (2)
18	WP3196548 Whirlpool Thermal Fuse
