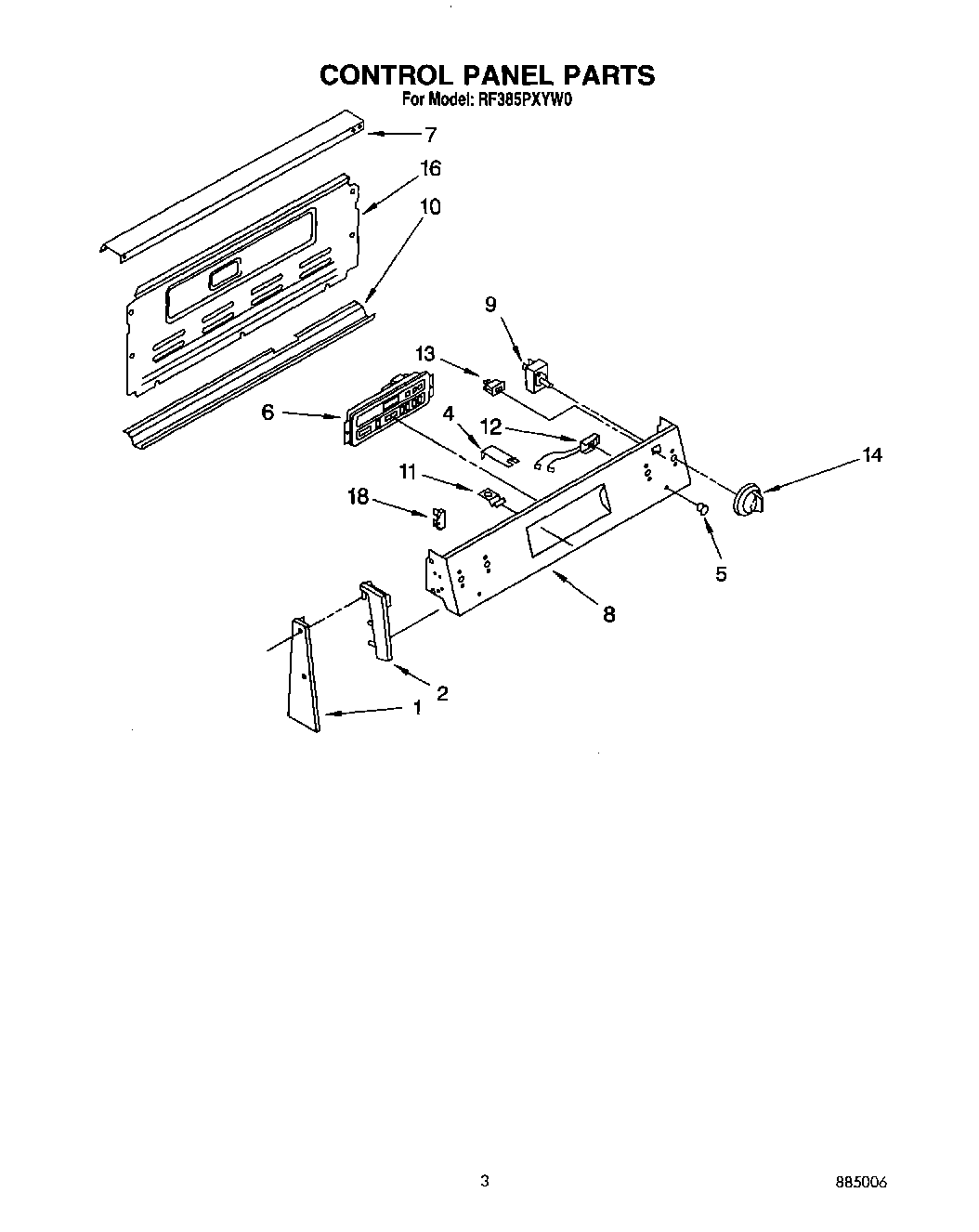

RF385PXYQ0 03 – CONTROL PANEL

RF385PXYQ0 03 – CONTROL PANEL

Written by

in

RF385PXYQ0 03 – CONTROL PANEL

Products

PositionProduct
1Washer
1Screw 10-32×7/16“
1Screw 10-32×1“
2End Cap L.H.
2End Cap R.H.
2Screw,
4Bracket, Support ERC
5Lens, Amber
6Control, Electronic (Black)
6Control, Electronic (White)
7Top Trim, Black
7Top Trim – White
8Control Panel (Designer White)
8Control Panel (White/Almond)
9WP3149404 Whirlpool Oven Surface Element Switch
9WP486579 Whirlpool Air Conditioner Screw
9WP3149400 Whirlpool Oven Infinite Switch
10Bottom Trim
11Bracket, Support Wedge
11WP965173 Whirlpool Dishwasher Screw
12Light, Indicator (Surface Unit (2))
13Switch, Rocker (White)
13Switch, Rocker
14Knob, (4) Infinite Switch (White/Almond/Gold)
14Knob, (4) Infinite Switch (Designer Mdl)
16Harness-Conduit Asm.
16SCREW
18WP3196548 Whirlpool Thermal Fuse
