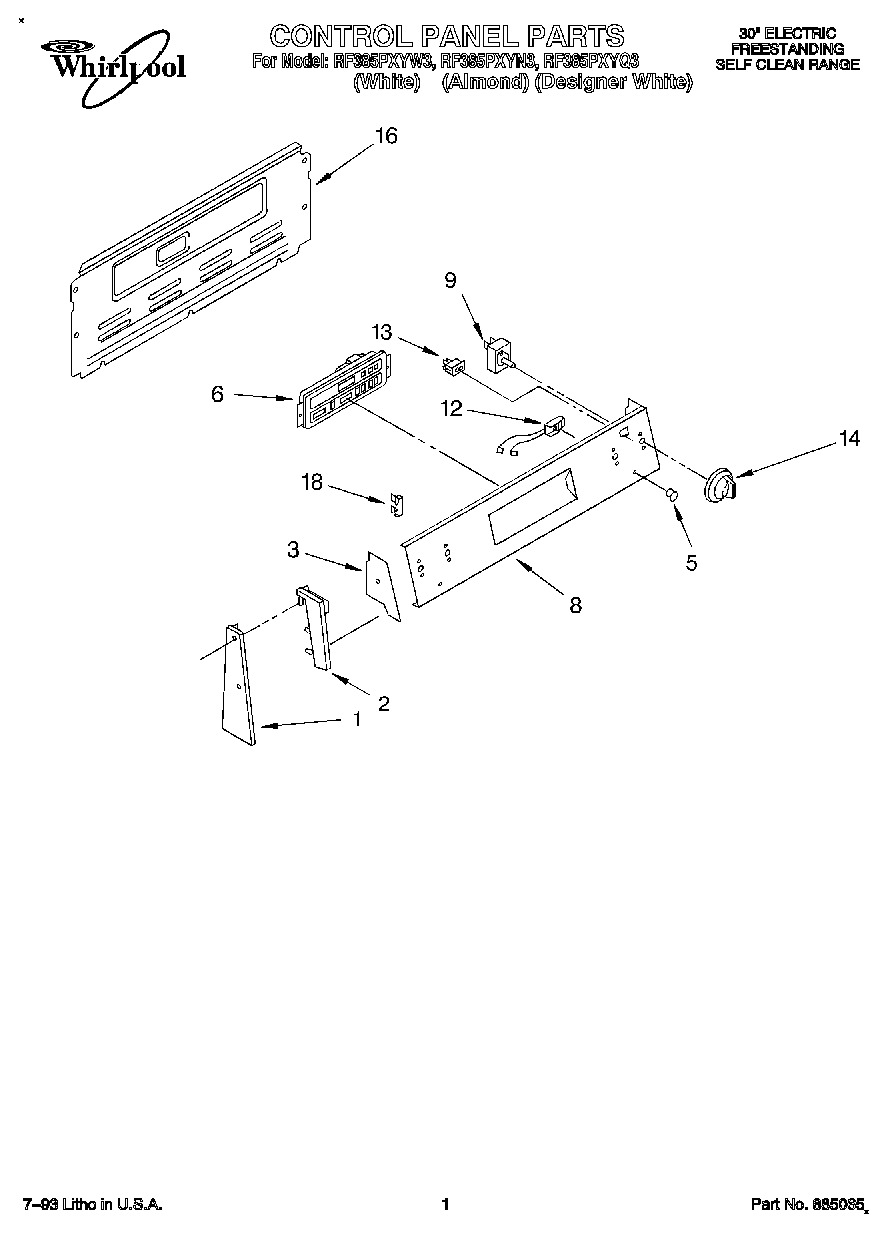

RF385PXYQ3 01 – CONTROL PANELadmin2025-04-26T12:50:02+00:00RF385PXYQ3 01 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Washer |
| 1 | Screw 10-32x7/16`` |
| 1 | Screw 10-32x1`` |
| 2 | End Cap R.H. |
| 2 | Screw, |
| 2 | End Cap L.H. |
| 3 | Shield (2) |
| 5 | Lens, Amber |
| 6 | Control, Electronic (White) |
| 6 | WP965173 Whirlpool Dishwasher Screw |
| 6 | Control, Electronic (Black) |
| 8 | Control Panel (White/Almond) |
| 8 | Control Panel (Designer White) |
| 9 | WP3149404 Whirlpool Oven Surface Element Switch |
| 9 | WP3149400 Whirlpool Oven Infinite Switch |
| 9 | Screw, 8-32 x 3/16 (2) |
| 12 | Light, Indicator (Surface Unit (2)) |
| 13 | Switch, Rocker |
| 13 | Switch, Rocker (White) |
| 14 | Knob, (4) Infinite Switch (White/Almond/Gold) |
| 14 | Knob, (4) Infinite Switch (Designer Mdl) |
| 16 | Rear Cover Contr |
| 16 | SCREW |
| 18 | Screw (2) |
| 18 | WP3196548 Whirlpool Thermal Fuse |
