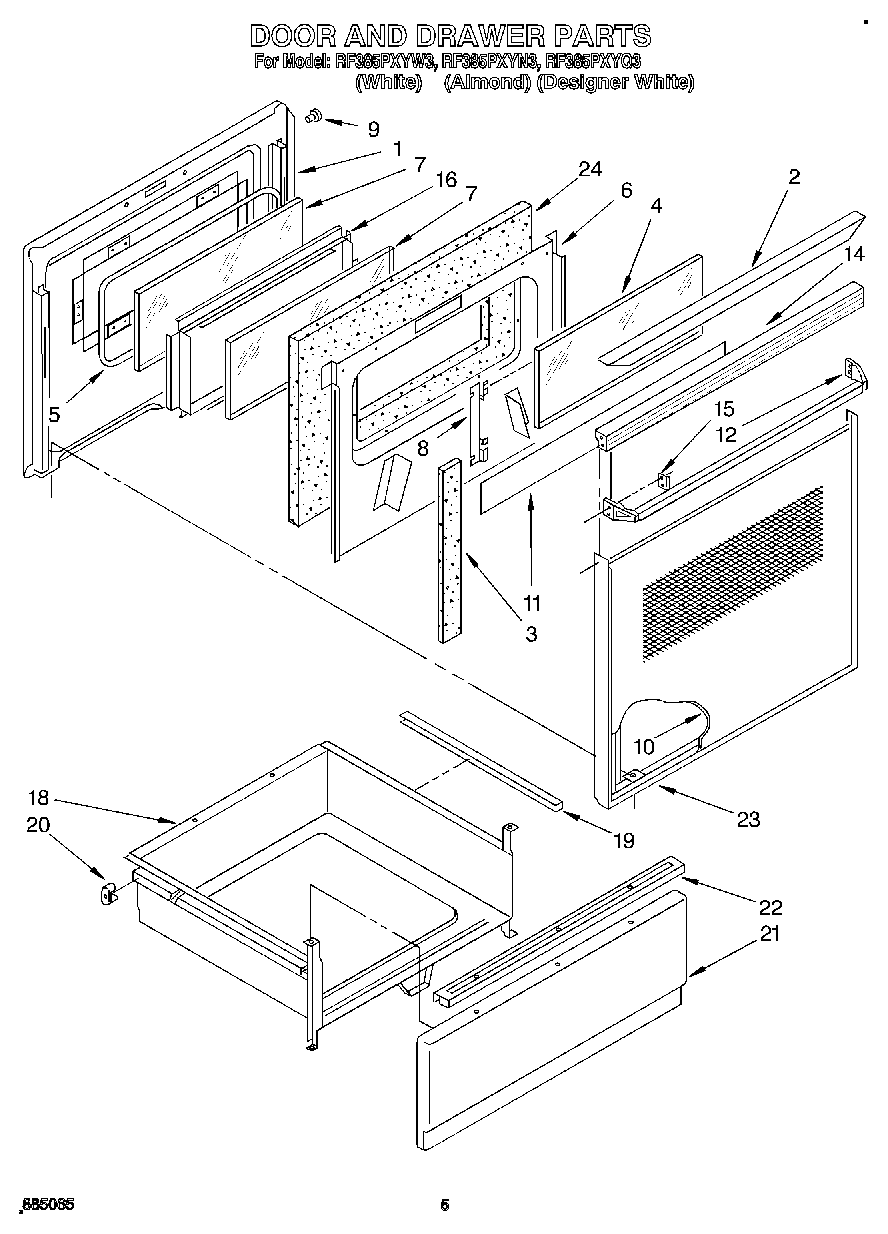

RF385PXYQ3 04 – DOOR AND DRAWER

Products

Position	Product
1	Screw
1	Liner, Door
2	Cap, Top
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
10	Glass, Panel (White)
11	Foil, Door
12	WP355515 Whirlpool Screw
12	Handle, Door (White)
12	Handle, Oven Door
14	Top, Door (White Model)
14	WP308685 Whirlpool Microwave Screw
14	Top, Door (Black Model)
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
21	Panel Drawer (White)
21	Panel, Drawer (Almond)
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
23	Frame, Door
23	Screw, 10A x 1/2 (2) (Black)
24	Insulation, Door
