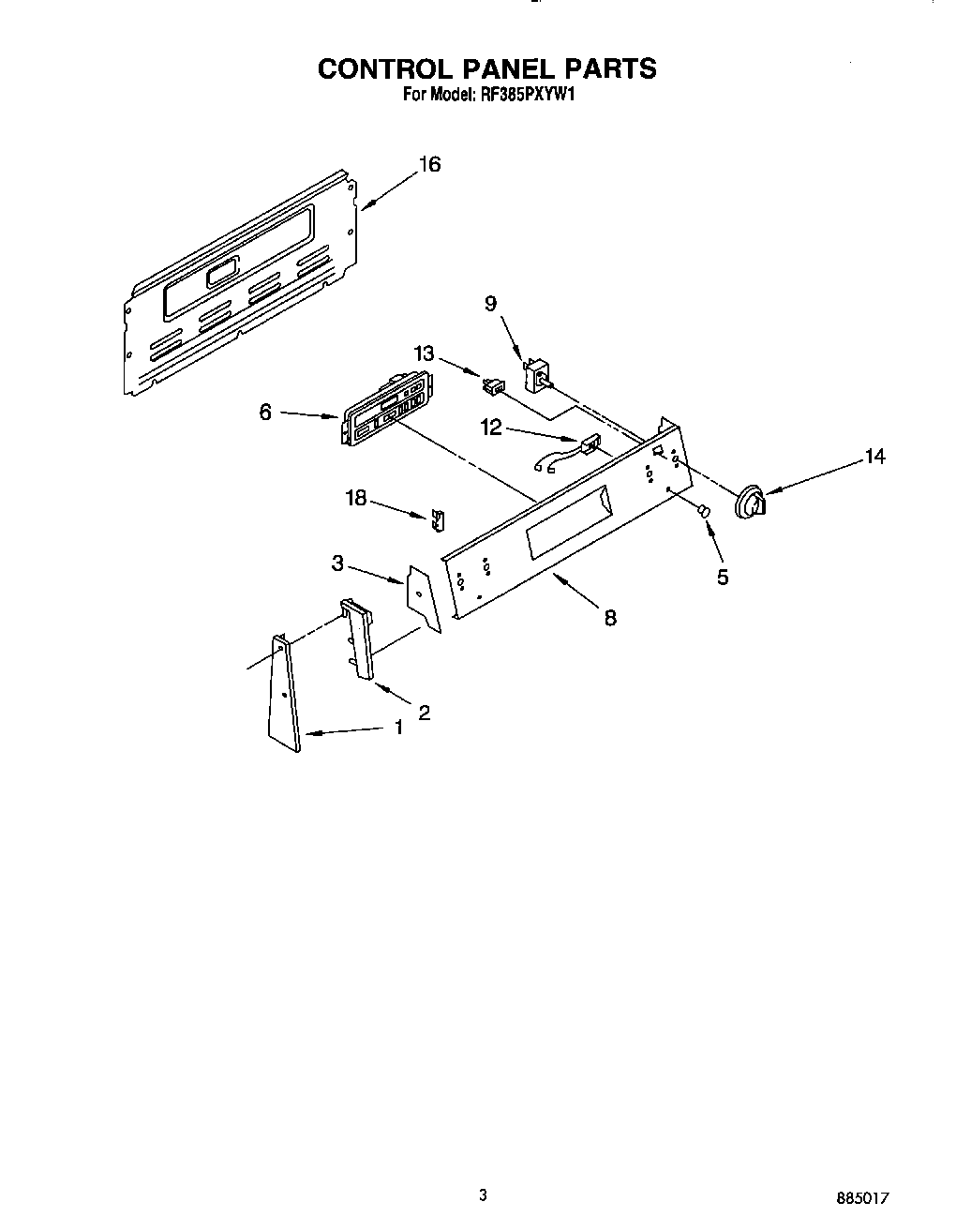

RF385PXYW1 03 – CONTROL PANEL

Products

Position	Product
1	Washer
1	Screw 10-32×7/16“
1	Screw 10-32×1“
2	End Cap R.H.
2	Screw,
2	End Cap L.H.
3	Shield (2)
5	Lens, Amber
6	WP965173 Whirlpool Dishwasher Screw
6	Control, Electronic (White)
6	Control, Electronic (Black)
8	Control Panel (White/Almond)
8	Control Panel (Designer White)
9	WP486579 Whirlpool Air Conditioner Screw
9	WP3149404 Whirlpool Oven Surface Element Switch
9	WP3149400 Whirlpool Oven Infinite Switch
12	Light, Indicator (Surface Unit (2))
13	Switch, Rocker
13	Switch, Rocker (White)
14	Knob, (4) Infinite Switch (Designer Mdl)
14	Knob, (4) Infinite Switch (White/Almond/Gold)
16	Harness-Conduit Asm.
16	SCREW
18	WP3196548 Whirlpool Thermal Fuse
