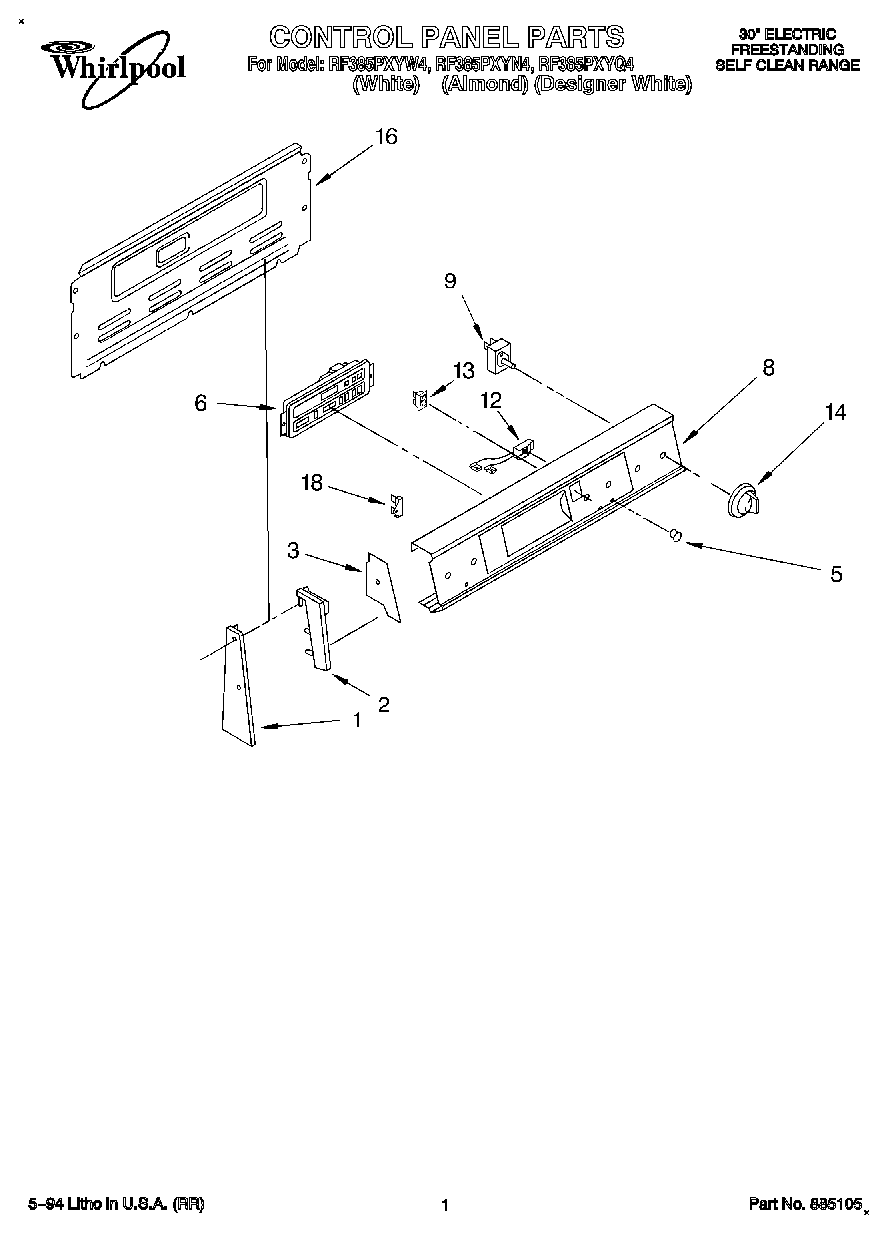

RF385PXYW4 01 – CONTROL PANEL

Products

PositionProduct
1Screw 10-32×7/16“
1Washer
1Screw 10-32×1“
2End Cap L.H.
2End Cap R.H.
2Screw,
3Shield (2)
5Lens, Amber
6WP965173 Whirlpool Dishwasher Screw
6Control, Electronic (White)
6Control, Electronic (Black)
8Control Panel (Designer White)
8Control Panel (White/Almond)
9WP3149404 Whirlpool Oven Surface Element Switch
9Screw, 8-32 x 3/16 (2)
9WP3149400 Whirlpool Oven Infinite Switch
12Light, Indicator (Surface Unit (2))
13Switch, Rocker (White)
13Switch, Rocker
14Knob, (4) Infinite Switch (Designer Mdl)
14Knob, (4) Infinite Switch (White/Almond/Gold)
16Rear Cover Contr
16SCREW
18Fuse, Thermal
18Screw (2)
