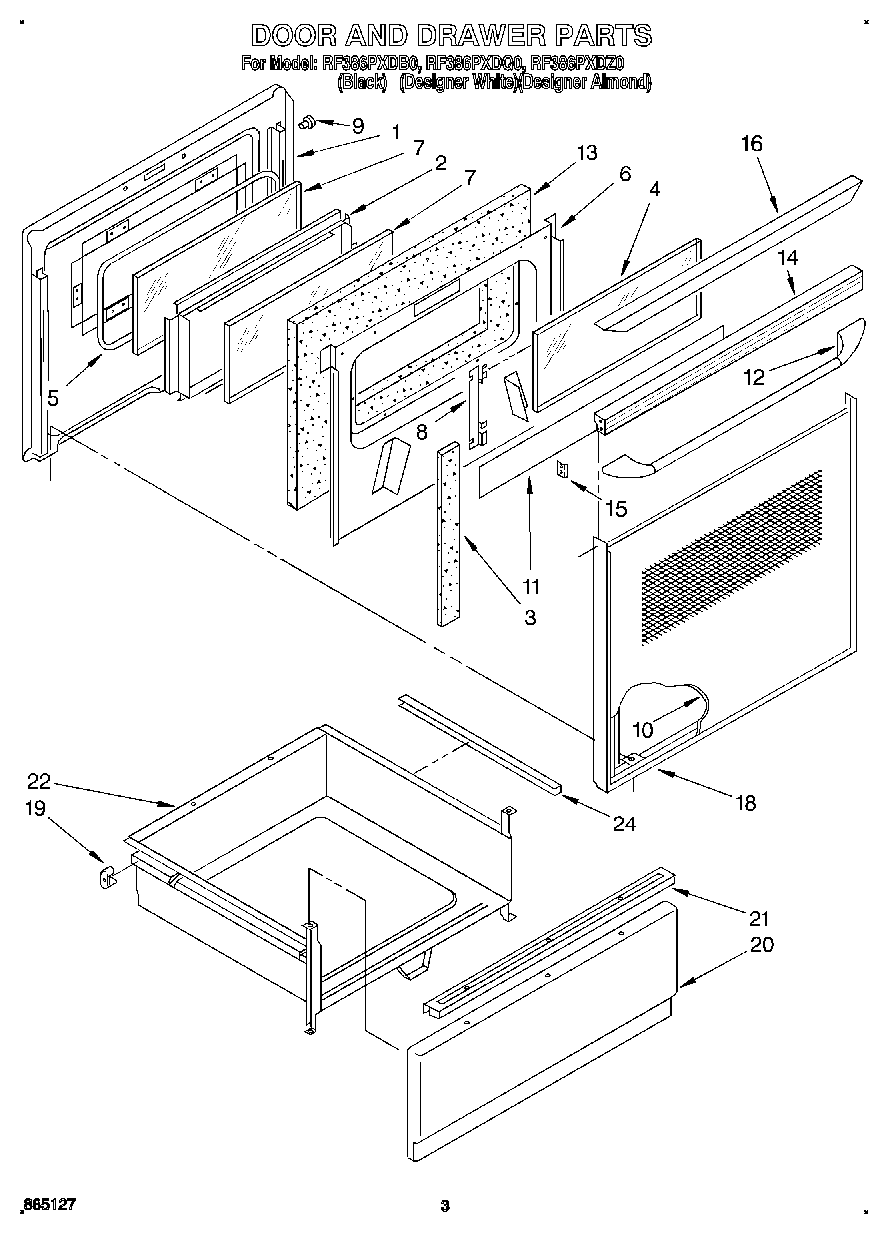

RF386PXDB0 03 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
8	Screw
9	Bumper (4)
10	Glass Panel, Outer (White)
10	Glass Panel, Outer (Black)
10	Glass Panel, Outer (Almond)
11	Foil, Door
12	Handle, Door (Black)
12	Handle, Door (White)
12	WP999367 Whirlpool Refrigerator Screw
12	Handle, Door (Almond)
13	Insulation, Door
14	Top, Door Frame (Designer White)
14	Top, Door Frame (Black)
14	Top, Door Frame (Designer Almond)
15	Clip, Mtg (2)
16	Cap, Top (Designer White)
16	Cap, Top (Designer Almond)
16	Top, Door Frame (Screw (2))
16	Top, Door Frame (Screw (2))
18	Frame, Door (Almond)
18	Handle, Door (Screw (4))
18	Handle, Door (Screw)
18	Screw
18	Back Splash (Screw (4) 10AB x 1/2“)
18	Frame, Door (Screw (4))
18	Frame, Door (Black)
18	Frame, Door (White)
19	Glide, Rear (2)
20	P
20	Panel Drawer (Almond)
20	Panel Drawer (White)
20	WP488627 Whirlpool Refrigerator Screw
21	Handle, Drawer (Almond)
21	Handle, Drawer (White)
21	Handle, Drawer
22	Drawer, Utility
24	Protector, Drawer (2)
