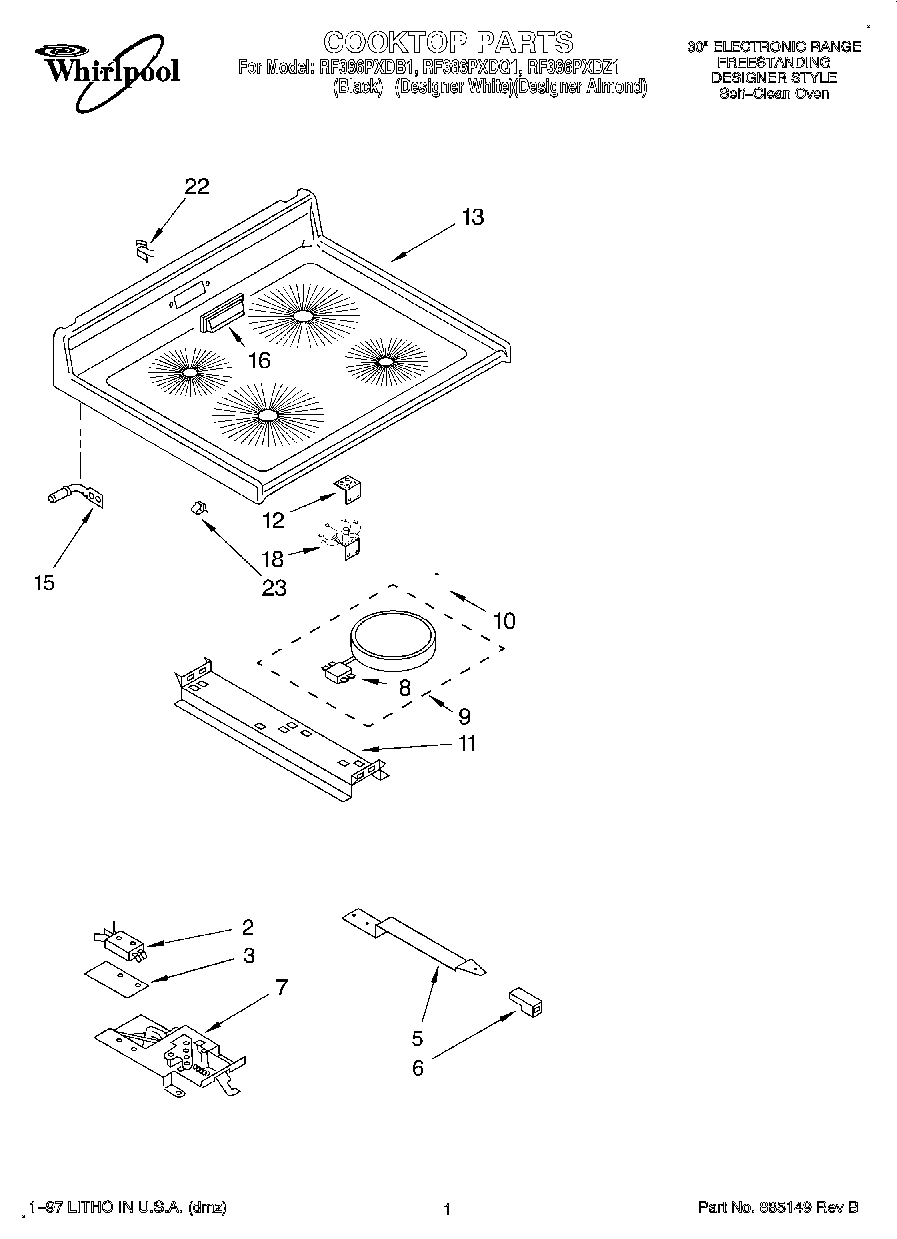

RF386PXDB1 01 – COOKTOP

Products

Position	Product
2	WPL 312717
2	Safety Switch
3	Insulator, Switch
5	Handle, Latch
5	Screw
5	Handle, Latch
6	Knob, Latch
6	Designer Almond
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
7	Latch Mechanism
8	Limiter, Temp. (1700W, RF-LR)
8	Limiter, Temp. (2100W, LF-RR)
8	Limiter, Temp. (1400W – LR)
8	Limiter, Temp. (2400W – LF)
9	Element, Surface (Includes No.1) (1700W, RF-LR)
9	Element, Surface (Includes No. 18) (2400W – LF)
9	Element, Surface (Includes No.1) (2100W, LF-RR)
9	Element, Surface (Includes No. 18) (1400W – LR)
10	Spring, Locator
10	WP486754 Whirlpool Compactor Screw
11	Bracket, (2) Element Support
12	Bracket, Light
13	Cooktop (Almond)
13	Cooktop (Black)
15	SCREW
15	Pin, Cooktop (2)
16	Cover, Vent (White)
16	cover, vent (almond)
16	Cover, Vent (Black)
18	Screw (2)
18	WPL 3169395
22	Clip, Vent Cover
23	Cooktop (Designer White)
23	Clip
