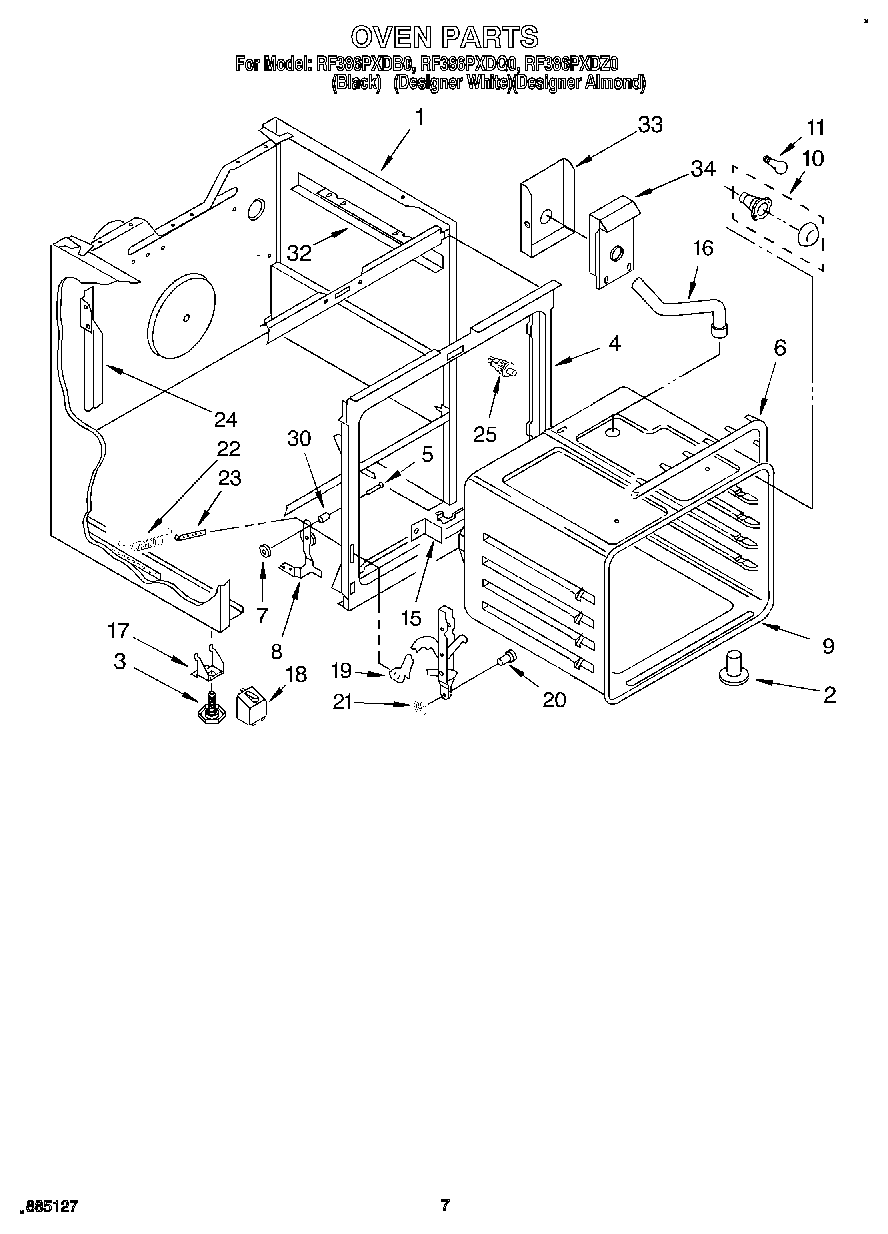

RF386PXDQ0 05 – OVEN

Products

Position	Product
1	Main Chassis (White)
1	Main Chassis (Black)
1	Main Chassis (Almond)
2	Tube, Vent
3	Leg Leveling (4)
4	Screw (Top)
4	Front Frame
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge, R.H.
8	Hinge, L.H.
9	Oven (30“ Pyro)
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
11	RANGE ONLY 40W 120V APPL BULB
15	Bracket, Oven (Mounting)
16	Screw, 10A x 1/2 (2) (Black)
16	Vent, Oven
17	Support, Foot (2)
18	Cover, Foot (2)
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	WP308126 Whirlpool Door Spring
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover-Controls (Right)
24	SCREW
24	Wire Cover
25	Switch, Door
30	Snubber, Door (2)
32	WP3390631 Whirlpool Screw
32	Support, Chassis
33	Shield, Vent
33	Screw (2)
34	Vent, Box
34	WP488627 Whirlpool Refrigerator Screw
34	WPL 3169094
34	WPL 3169093
