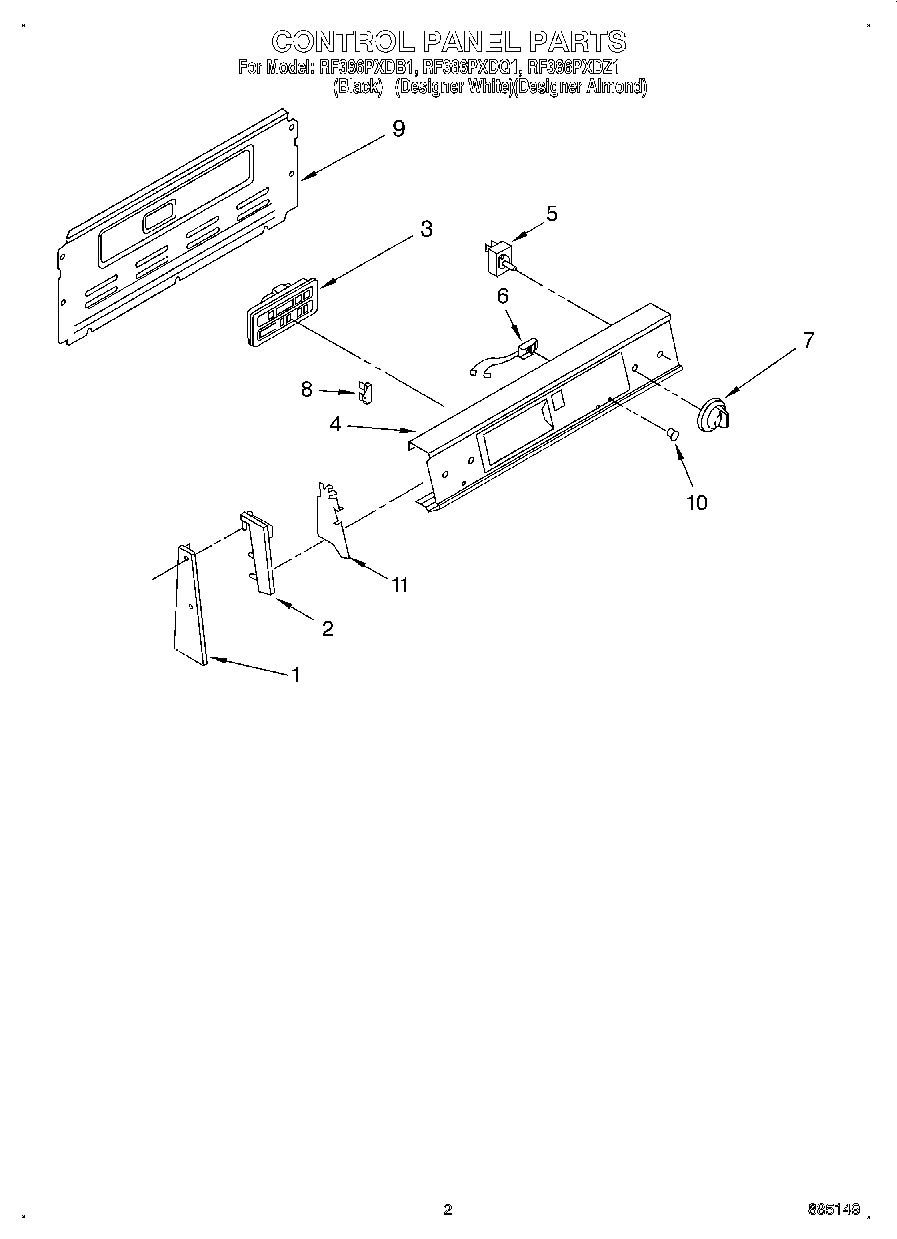

RF386PXDQ1 02 – CONTROL PANELadmin2025-04-26T12:46:21+00:00RF386PXDQ1 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | End Trim R.H. (Designer White) |
| 1 | End Trim |
| 1 | End Trim (LH, Black) |
| 1 | End Trim R.H. (Black) |
| 1 | End Trim (LH, Designer Almond) |
| 1 | End Trim R.H. (Designer Almond) |
| 1 | End Trim (LH, Designer White) |
| 2 | End Cap, R.H. (Black) |
| 2 | End Cap L.H. (Black) |
| 2 | End Cap R.H. (Designer White) |
| 2 | End Cap L.H. (Designer White) |
| 2 | End Cap R.H. (Designer Almond) |
| 2 | End Cap L.H. (Designer Almond) |
| 2 | End Caps |
| 3 | Timer, ERC Control (Designer Almond) |
| 3 | Timer, ERC Control (Black) |
| 3 | Timer, ERC Control (Designer White) |
| 4 | Panel, Control (White) |
| 4 | Panel, Control (Designer White) |
| 4 | Panel, Control |
| 4 | Panel, Control (Screw, 8-18 x 5/8 (4)) |
| 4 | Panel, Control (Almond) |
| 4 | Panel, Control (Almond) |
| 5 | WP3148952 Whirlpool Oven Infinite Switch |
| 5 | Screw, 8-32 x 3/16 (2) |
| 5 | WP3148955 Whirlpool Infinite Switch |
| 6 | Indicator Light (Surface Unit On) |
| 7 | WP3196232 Whirlpool Knob |
| 7 | WP3196231 Whirlpool Knob |
| 7 | WPL 3188723 |
| 8 | Screw (2) |
| 8 | Fuse, Thermal |
| 9 | SCREW |
| 9 | Rear Cover Contr |
| 10 | Lens, Amber |
| 11 | WP965173 Whirlpool Dishwasher Screw |
| 11 | Shield (2) |
