RF386PXDQ1 05 – OVEN, LIT/OPTIONAL

RF386PXDQ1 05 – OVEN, LIT/OPTIONAL

Written by

in

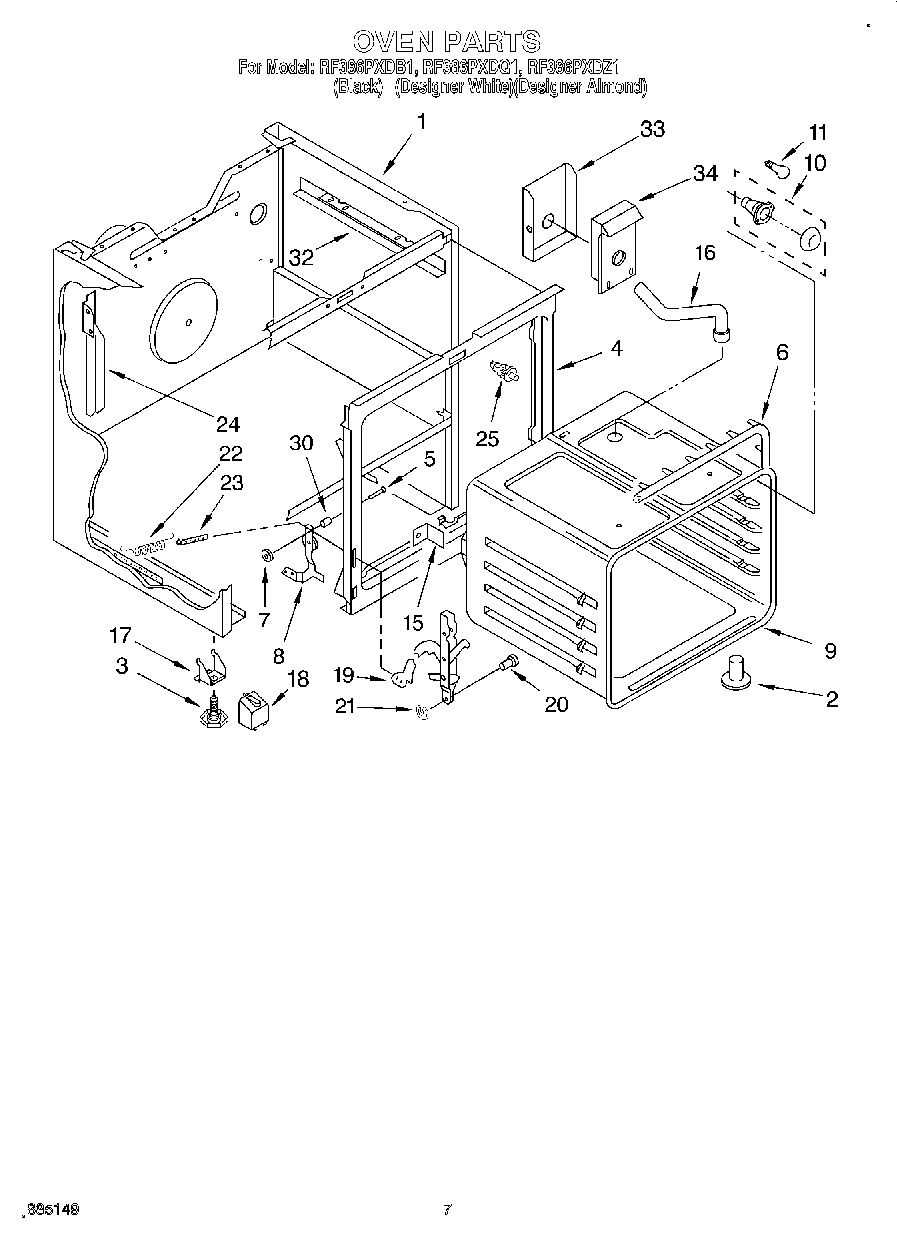

RF386PXDQ1 05 – OVEN, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3169520
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Adapter, Terminal
	8212471 Whirlpool Oven Paint
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	Paint, Spray 13 Oz. (Avocado)
	Wire (14 Ga. 200 c Brown)
	1
	Harness, Wire (Oven)
	Harness, Wire (Surface Unit)
	Harness, Wire (Lock Switch)
	Instructions, Installation
	Harness, Wire (Oven Light)
	WPL LIT677973
	WPL LIT3189073
	Clip
	WPL LIT3150400
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	Grease
	Leveler (Thinner) (2oz.)
	paint, spray 13 oz. (coffee)
	Paint, Touch-Up 1/2 Oz. (Coffee)
	350930 Whirlpool White Spray Paint
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	WPL 72112
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	Golden Harvest (Uncut)
	Golden Harvest
	72113 Whirlpool Touch-Up Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	WPL 799832
	WPW10208653 Whirlpool Insulation
	FOIL, ALUMINUM OVEN (18“ X 25 )
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	72109 Whirlpool Dacor Avocado Touch-Up Paint
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
1	Main Chassis (Almond)
1	Main Chassis (White)
1	Main Chassis (Black)
2	Tube, Vent
3	Leg Leveling (4)
4	Screw (Top)
4	Front Frame
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge, L.H.
8	Hinge, R.H.
9	Screw (3)
9	Oven (30“ Pyro)
10	W11594027 Whirlpool Range Oven Light Socket
11	RANGE ONLY 40W 120V APPL BULB
15	Bracket, Oven (Mounting)
16	Vent, Oven
16	Screw, 10A x 1/2 (2) (Black)
17	Support, Foot (2)
18	Cover, Foot (2)
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	WP308126 Whirlpool Door Spring
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	SCREW
24	Wire Cover
24	Wire Cover-Controls (Right)
25	Switch, Door
30	Snubber, Door (2)
32	WP3390631 Whirlpool Screw
32	Support, Chassis
33	Screw (2)
33	Shield, Vent
34	Insulation
34	WP488627 Whirlpool Refrigerator Screw
34	WPL 3169094
34	WPL 3169093
34	Vent, Box
