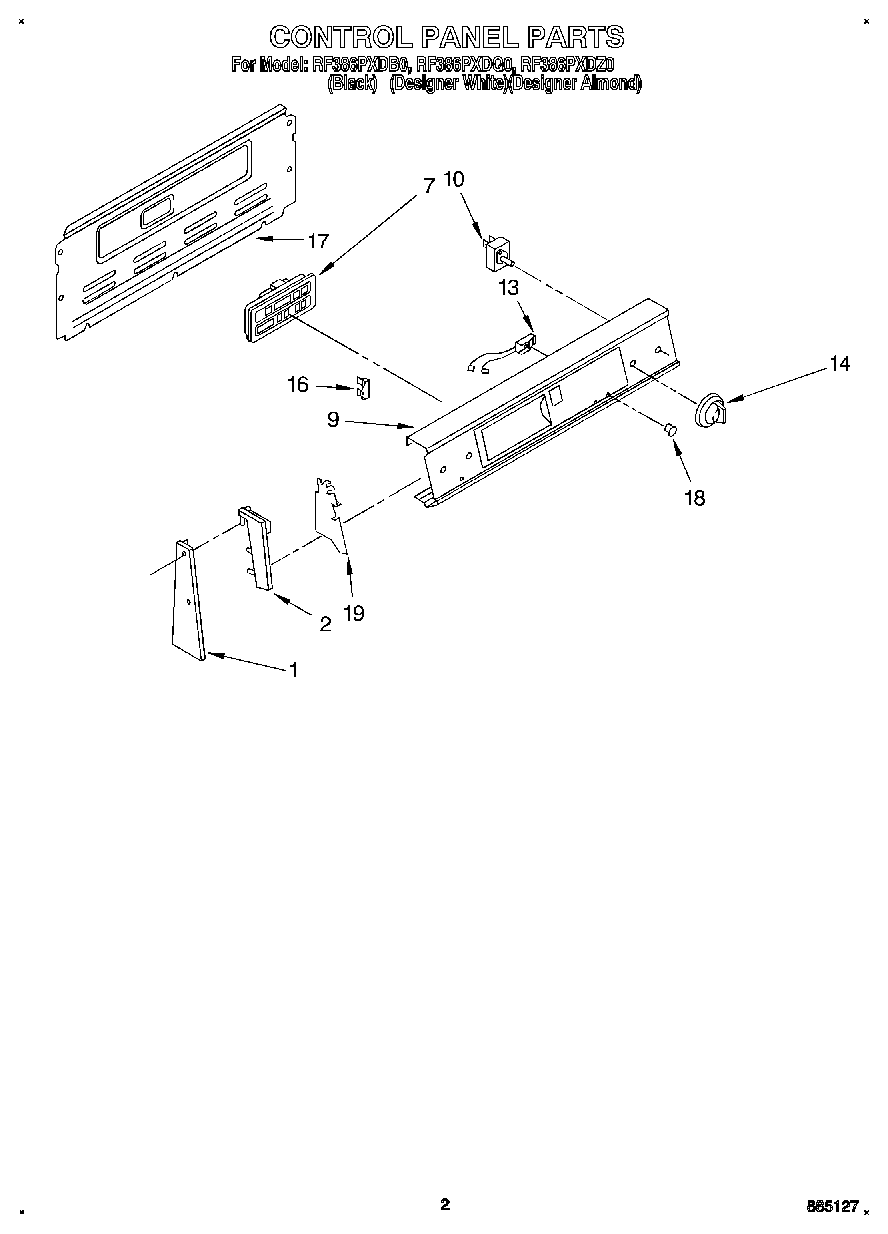

RF386PXDZ0 02 – CONTROL PANEL

Products

Position	Product
1	End Trim (LH, Designer White)
1	End Trim R.H. (Designer White)
1	End Trim (LH, Black)
1	End Trim R.H. (Black)
1	End Trim (LH, Designer Almond)
1	End Trim R.H. (Designer Almond)
2	End Cap, R.H. (Black)
2	End Cap L.H. (Black)
2	End Cap R.H. (Designer White)
2	End Cap L.H. (Designer White)
2	End Cap R.H. (Designer Almond)
2	End Cap L.H. (Designer Almond)
7	Timer, ERC Control (Black)
7	Timer, ERC Control (Designer White)
7	Timer, ERC Control (Designer Almond)
9	Panel, Control
9	Panel, Control (Screw, 8-18 x 5/8 (4))
9	Panel, Control (Designer White)
9	Panel, Control (Almond)
10	WP3148955 Whirlpool Infinite Switch
10	Screw, 8-32 x 3/16 (2)
10	WP3148952 Whirlpool Oven Infinite Switch
13	Indicator Light (Surface Unit On)
14	WPL 3188723
14	WP3196232 Whirlpool Knob
14	WP3196231 Whirlpool Knob
16	Screw (2)
16	Fuse, Thermal
17	SCREW
17	Rear Cover Contr
18	Lens, Amber
19	WP965173 Whirlpool Dishwasher Screw
19	Shield (2)
