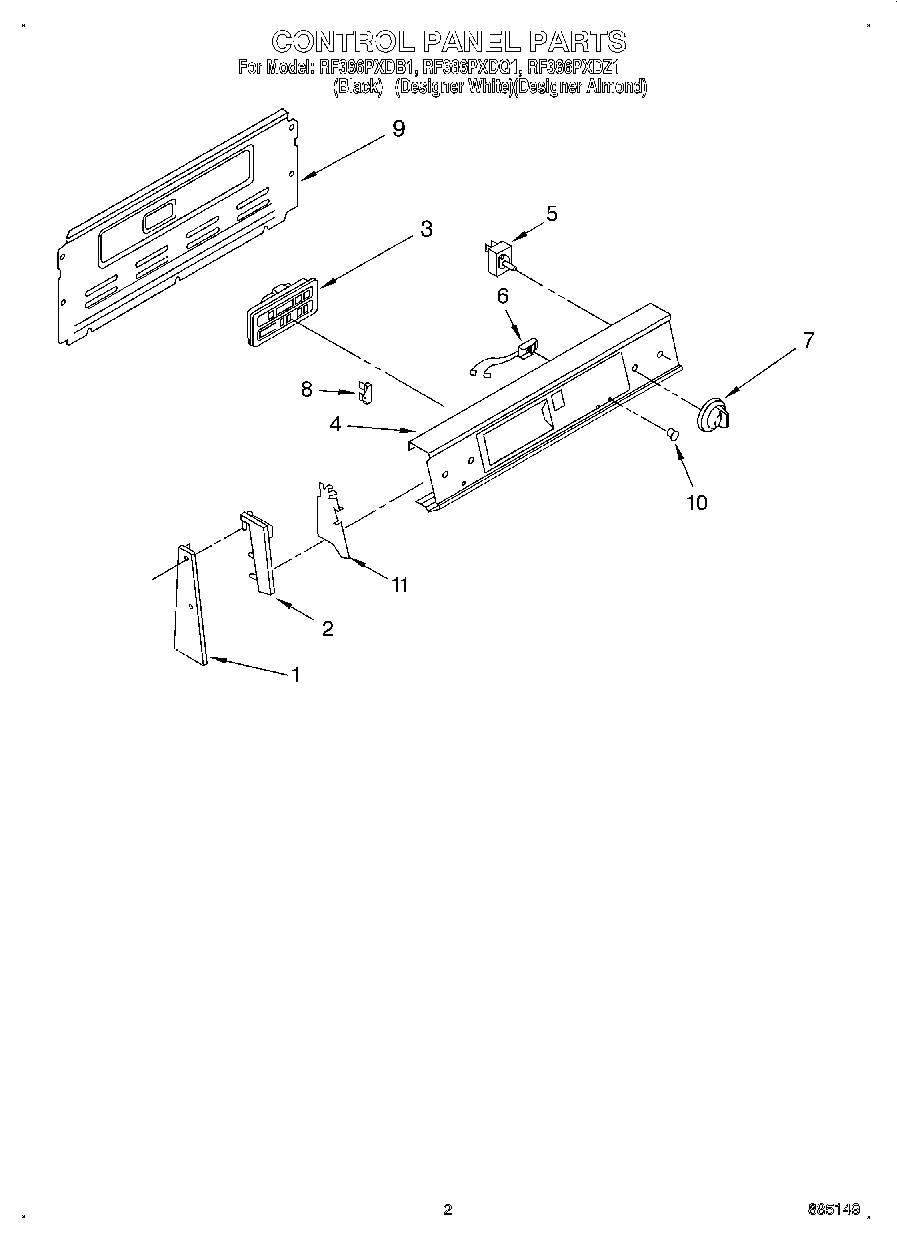

RF386PXDZ1 02 – CONTROL PANEL
Written by
in
RF386PXDZ1 02 – CONTROL PANEL
Products
Position
Product
1
End Trim R.H. (Designer White)
1
End Trim
1
End Trim (LH, Black)
1
End Trim R.H. (Black)
1
End Trim (LH, Designer Almond)
1
End Trim R.H. (Designer Almond)
1
End Trim (LH, Designer White)
2
End Cap, R.H. (Black)
2
End Cap L.H. (Black)
2
End Cap R.H. (Designer White)
2
End Cap L.H. (Designer White)
2
End Cap R.H. (Designer Almond)
2
End Cap L.H. (Designer Almond)
2
End Caps
3
Timer, ERC Control (Designer Almond)
3
Timer, ERC Control (Black)
3
Timer, ERC Control (Designer White)
4
Panel, Control (White)
4
Panel, Control (Designer White)
4
Panel, Control
4
Panel, Control (Screw, 8-18 x 5/8 (4))
4
Panel, Control (Almond)
4
Panel, Control (Almond)
5
WP3148952 Whirlpool Oven Infinite Switch
5
Screw, 8-32 x 3/16 (2)
5
WP3148955 Whirlpool Infinite Switch
6
Indicator Light (Surface Unit On)
7
WP3196232 Whirlpool Knob
7
WP3196231 Whirlpool Knob
7
WPL 3188723
8
Screw (2)
8
Fuse, Thermal
9
SCREW
9
Rear Cover Contr
10
Lens, Amber
11
WP965173 Whirlpool Dishwasher Screw
11
Shield (2)
←
