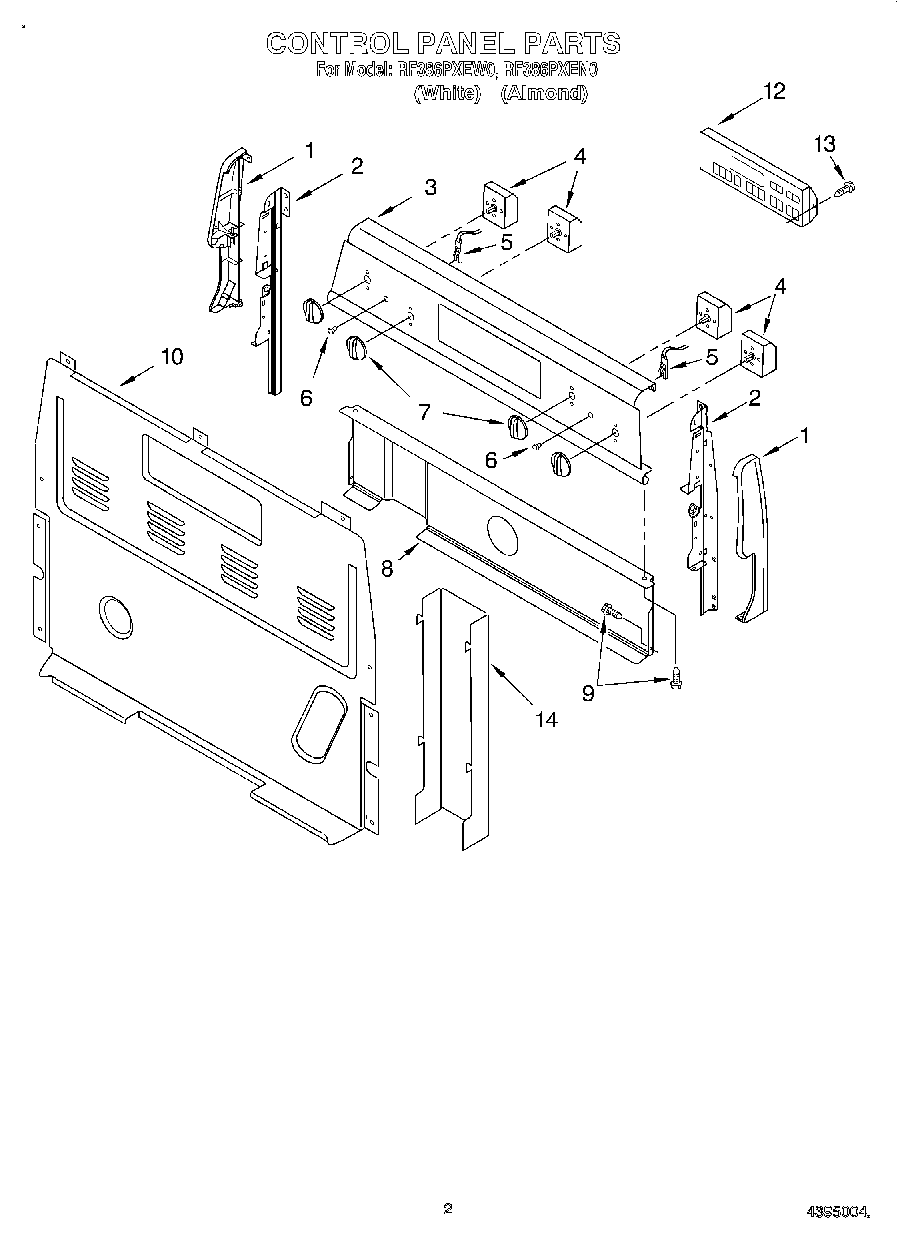

RF386PXEN0 02 – CONTROL PANEL

RF386PXEN0 02 – CONTROL PANEL

Written by

in

RF386PXEN0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard
4WP3148955 Whirlpool Infinite Switch
4Switch, Infinite (Screw (8))
4WP3149404 Whirlpool Oven Surface Element Switch
4WP3148952 Whirlpool Oven Infinite Switch
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7WP3196231 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
12Control, Range
14WPW10326122 Whirlpool Black Cover
14SCREW
