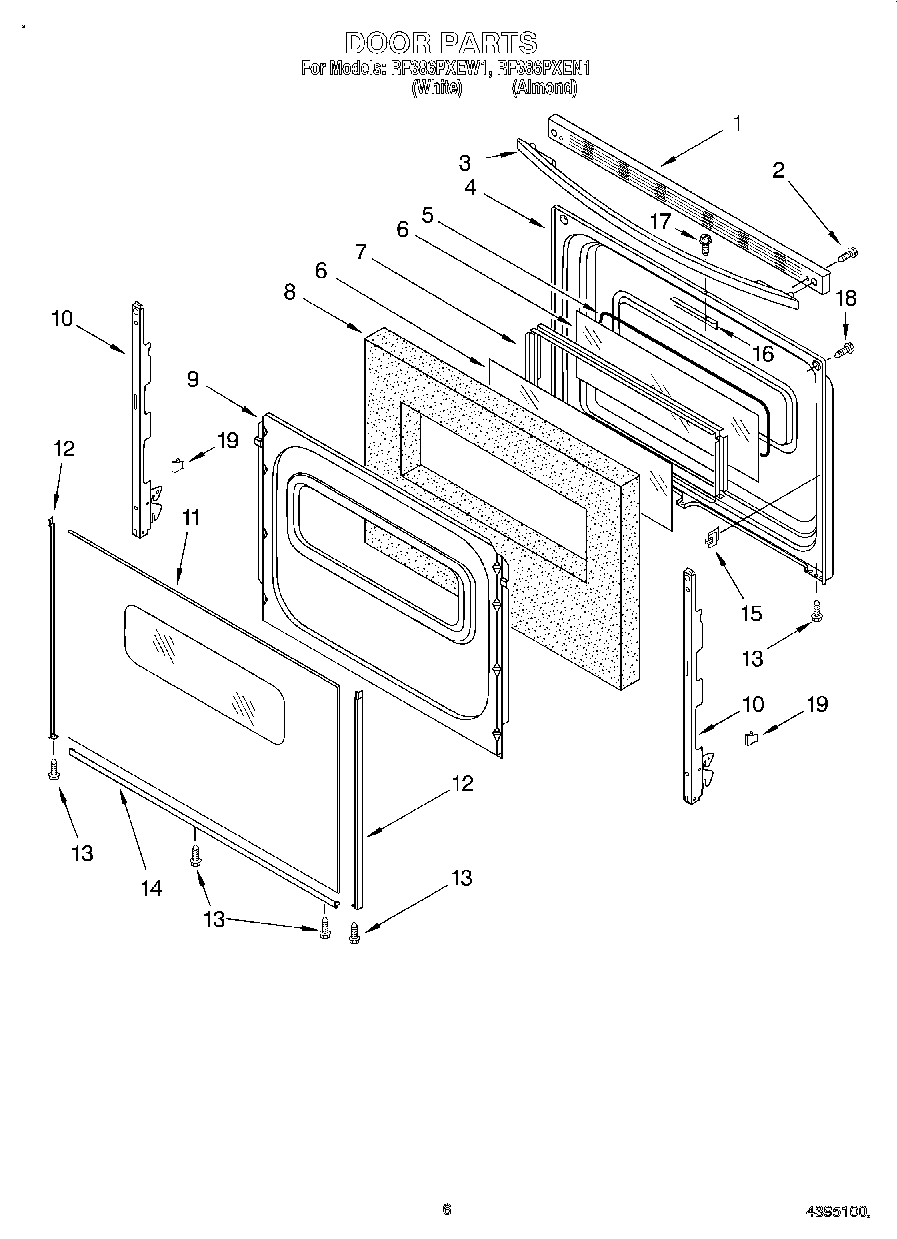

RF386PXEN1 05 – DOOR, LIT/OPTIONAL

RF386PXEN1 05 – DOOR, LIT/OPTIONAL

Written by

in

RF386PXEN1 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3196077
	WP3196154 Whirlpool Screw Assembly
	3196696 Whirlpool Clip
	Harness, Wire (Door Switch)
	3184020 Whirlpool Oven Wire
	W11244557 Whirlpool Screw
	WPL 8053721
	3400964 Whirlpool Oven Clip
	Literature (Installation, Instructions (Template))
	814381 Whirlpool Pin
	Clip, Ground Wire
	WPL LIT3195944
	WPL LIT3196278
	WPL 3195153
	Safer Cooking Tips
1	Trim, Top (Black)
1	238614 Whirlpool Bumper Hinge
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	8522415 Whirlpool Oven Wind Gasket
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
8	Insulation, Door
9	9761499 Whirlpool Oven Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	WP9762477 Whirlpool Glass Door
13	W10491985 Whirlpool Screw
14	8184858 Whirlpool Door Trim
15	Clip, Glass (4)
16	Bracket, Latch
17	WP3400832 Whirlpool Screw
18	WP179051 Whirlpool Screw
19	8212471 Whirlpool Oven Paint
19	Wire (12 Ga. 150 c Black)
19	18 Ga. 80~c Rating (Red)
19	Wire (14 Ga. 200 c Brown)
19	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
19	1
19	Grease
19	72113 Whirlpool Touch-Up Paint
19	Wire (14 Ga. 150 c Yellow)
19	Wire (14 Ga. 150 c Orange)
19	Wire (14 Ga. 150 c Green)
19	350942 Whirlpool Spray Paint
19	WPL 72112
19	Platinum (Uncut)
19	Enamal, Toast (1 Qt. Uncut)
19	Paint, Spray (13 Oz.) (Platinum)
19	Toast
19	Golden Harvest (Uncut)
19	Golden Harvest
19	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19	Almond (Uncut)
19	WP72107 Whirlpool Touchup
19	799344 Whirlpool Refrigerator Paint
19	72017 Whirlpool Appliance Touch-Up Paint White
19	350956 Whirlpool Spray Assembly
19	511873 Whirlpool Refrigerator Paint
19	WPL 799832
19	WPW10208653 Whirlpool Insulation
19	Wire (14 Ga. 150 c Brown)
19	Wire (14 Ga. 150 c Blue)
19	242831 Whirlpool Oven Wire
19	WP3196925 Whirlpool Clip Assembly
19	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
19	Paint, Spray 13 Oz. (Avocado)
19	paint, spray 13 oz. (coffee)
19	Paint, Touch-Up 1/2 Oz. (Coffee)
19	72109 Whirlpool Dacor Avocado Touch-Up Paint
19	285006 Whirlpool Spray
19	Wire, 25“ Roll (White 14 GA.)
19	Wire, 25` Roll (Red 14 Ga.)
19	Wire, 25` Roll (Black 14 Ga.)
19	FOIL, ALUMINUM OVEN (18“ X 25 )
19	350930 Whirlpool White Spray Paint
