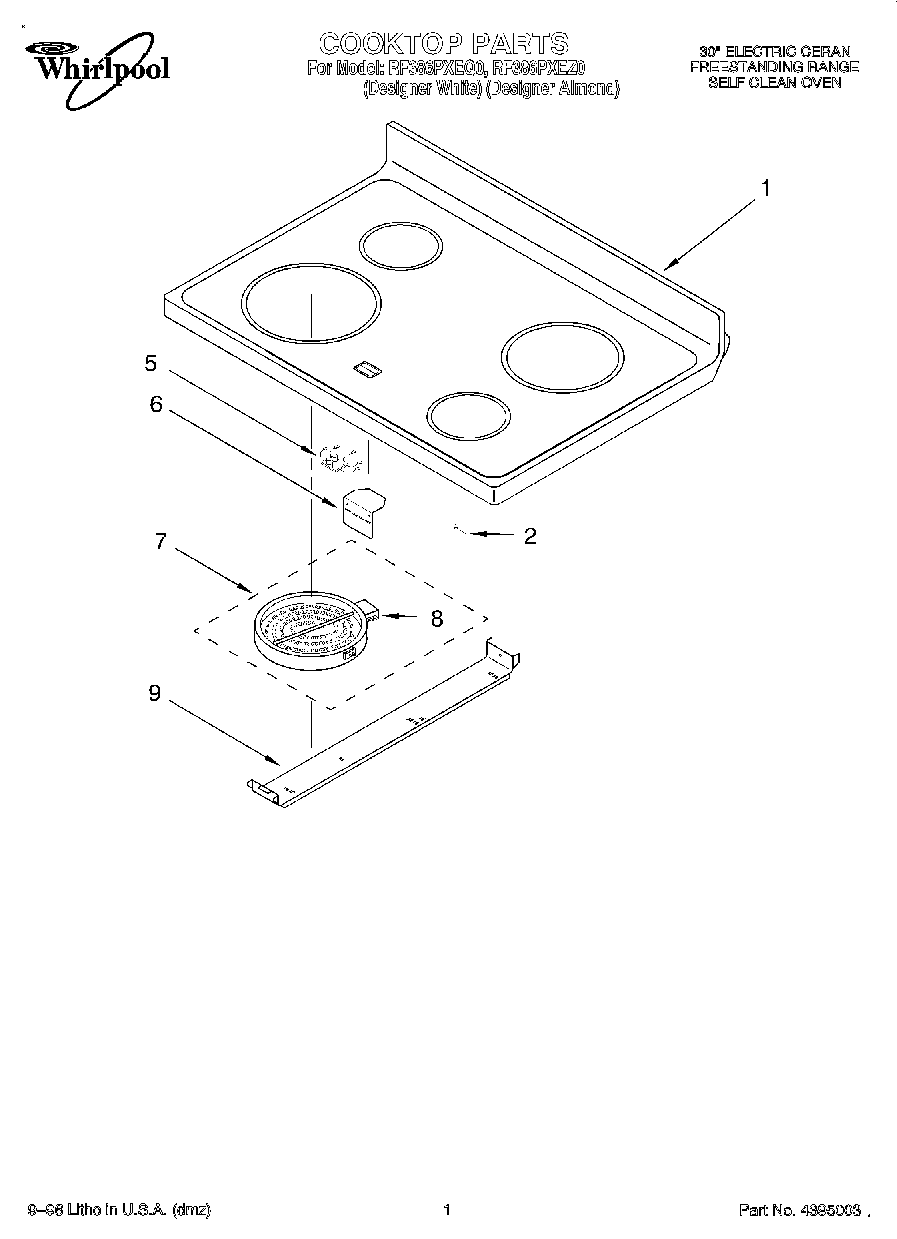

RF386PXEQ0 01 – COOKTOP

Products

PositionProduct
1Cooktop (Almond)
1Cooktop (White)
2Spring, Locator
2WP3196170 Whirlpool Screw
5Light, Indicator (Hot Surface)
6Bracket, Ind Light
7W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
7Element, Surface (7“ R.F. 1700W)
7Element, Surface (9“ L.F. 2400W)
8Limiter, Temp (1700W – RF)
8Switch, Limiter (Use W/3189893 Element)
8Limiter, Temp. (2400 W – LF)
9Bracket, Element
9WP3196175 Whirlpool Screw
