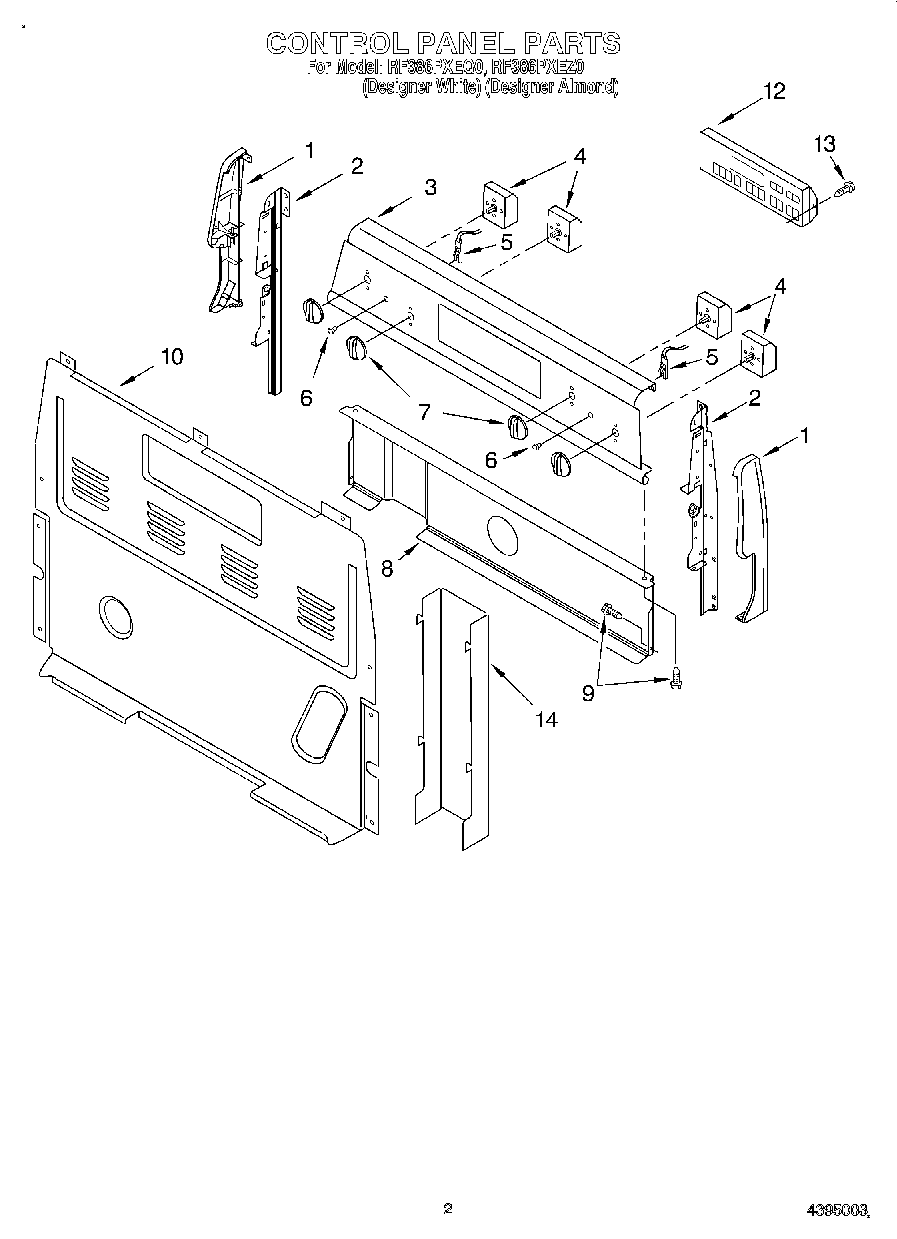

RF386PXEQ0 02 – CONTROL PANEL

RF386PXEQ0 02 – CONTROL PANEL

Written by

in

RF386PXEQ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Almond Left Hand)
1Endcap (Almond Right Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard
3Support, Endcap (Almond)
4Switch, Infinite (Screw (8))
4WP3148955 Whirlpool Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
4WP3149404 Whirlpool Oven Surface Element Switch
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7Knob, Infinite (4) (Almond)
7WP3196232 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
12Control, Range (White)
12Control, Range (Almond)
14WPW10326122 Whirlpool Black Cover
14SCREW
