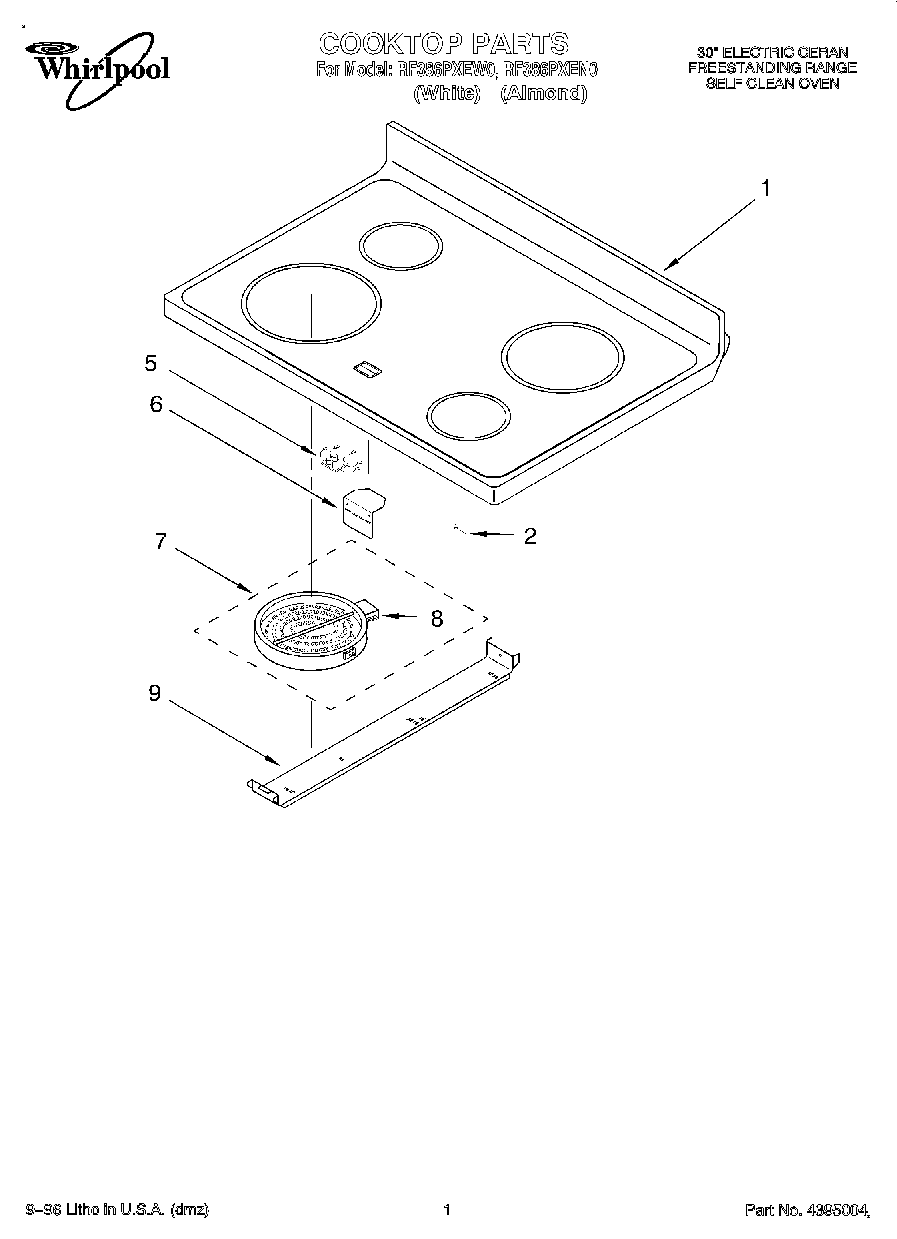

RF386PXEW0 01 – COOKTOP

Products

Position	Product
1	Cooktop (Almond)
1	Cooktop (White)
2	Spring, Locator
2	WP3196170 Whirlpool Screw
5	Light, Indicator (Hot Surface)
6	Bracket, Ind Light
7	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
7	Element, Surface (7“ R.F. 1700W)
7	Element, Surface (9“ L.F. 2400W)
8	Limiter, Temp (1700W – RF)
8	Switch, Limiter (Use W/3189893 Element)
8	Limiter, Temp. (2400 W – LF)
9	Bracket, Element
9	WP3196175 Whirlpool Screw
