RF386PXEW0 05 – DOOR, LIT/OPTIONAL

RF386PXEW0 05 – DOOR, LIT/OPTIONAL

Written by

in

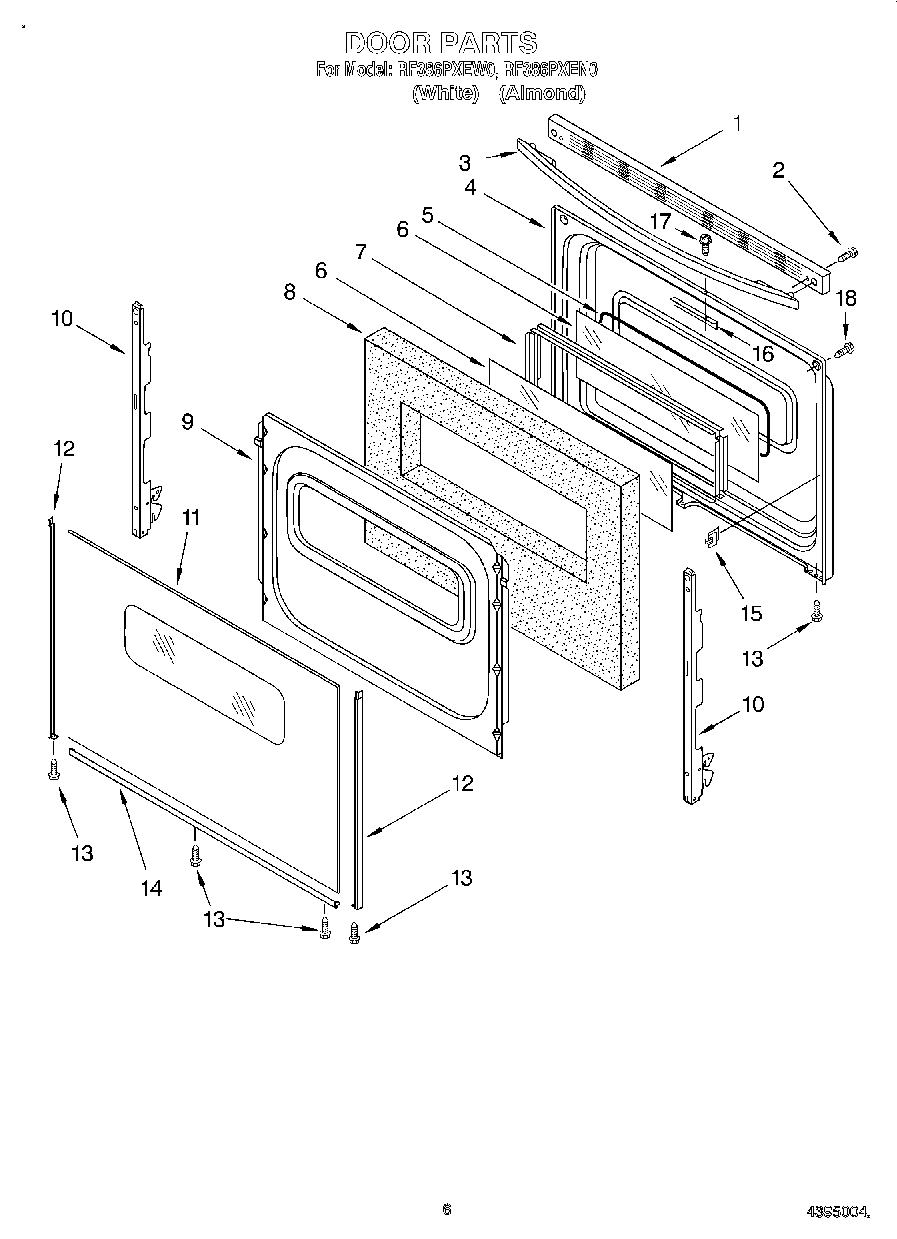

RF386PXEW0 05 – DOOR, LIT/OPTIONAL

Products

PositionProduct
Literature (Installation, Instructions (Template))
3184020 Whirlpool Oven Wire
Harness, Wire (Door Switch)
WP3196154 Whirlpool Screw Assembly
W11244557 Whirlpool Screw
3400964 Whirlpool Oven Clip
WPL LIT3195944
Clip, Ground Wire
WPL LIT3196077
WPL 3196387
WPL LIT3196278
WPL 3195153
3196696 Whirlpool Clip
1238614 Whirlpool Bumper Hinge
1Trim, Top
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
4Liner, Door
58522415 Whirlpool Oven Wind Gasket
6WP9758164 Whirlpool Door Glass
7Frame, Glass
8Insulation, Door
99761499 Whirlpool Oven Retainer
10WP8053807 Whirlpool Oven Door Hinge
11WP9762477 Whirlpool Glass Door
13W10491985 Whirlpool Screw
148184858 Whirlpool Door Trim
15Clip, Glass (4)
16Bracket, Latch
17WP3400832 Whirlpool Screw
1818 Ga. 80~c Rating (Red)
18Wire (12 Ga. 150 c Black)
18Wire (14 Ga. 200 c Brown)
181
18Paint, Touch-Up 1/2 Oz. (Coffee)
188212471 Whirlpool Oven Paint
18Golden Harvest
18Grease
188273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
18Wire (14 Ga. 150 c Yellow)
18Wire (14 Ga. 150 c Orange)
18350942 Whirlpool Spray Paint
18WPL 72112
18Platinum (Uncut)
18Enamal, Toast (1 Qt. Uncut)
18Paint, Spray (13 Oz.) (Platinum)
18Toast
18Golden Harvest (Uncut)
1872113 Whirlpool Touch-Up Paint
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18Almond (Uncut)
18WP72107 Whirlpool Touchup
18799344 Whirlpool Refrigerator Paint
1872017 Whirlpool Appliance Touch-Up Paint White
18350956 Whirlpool Spray Assembly
18511873 Whirlpool Refrigerator Paint
18WPL 799832
18WPW10208653 Whirlpool Insulation
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18242831 Whirlpool Oven Wire
18WP179051 Whirlpool Screw
18W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
18Paint, Spray 13 Oz. (Avocado)
18paint, spray 13 oz. (coffee)
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18285006 Whirlpool Spray
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18FOIL, ALUMINUM OVEN (18“ X 25 )
18350930 Whirlpool White Spray Paint
