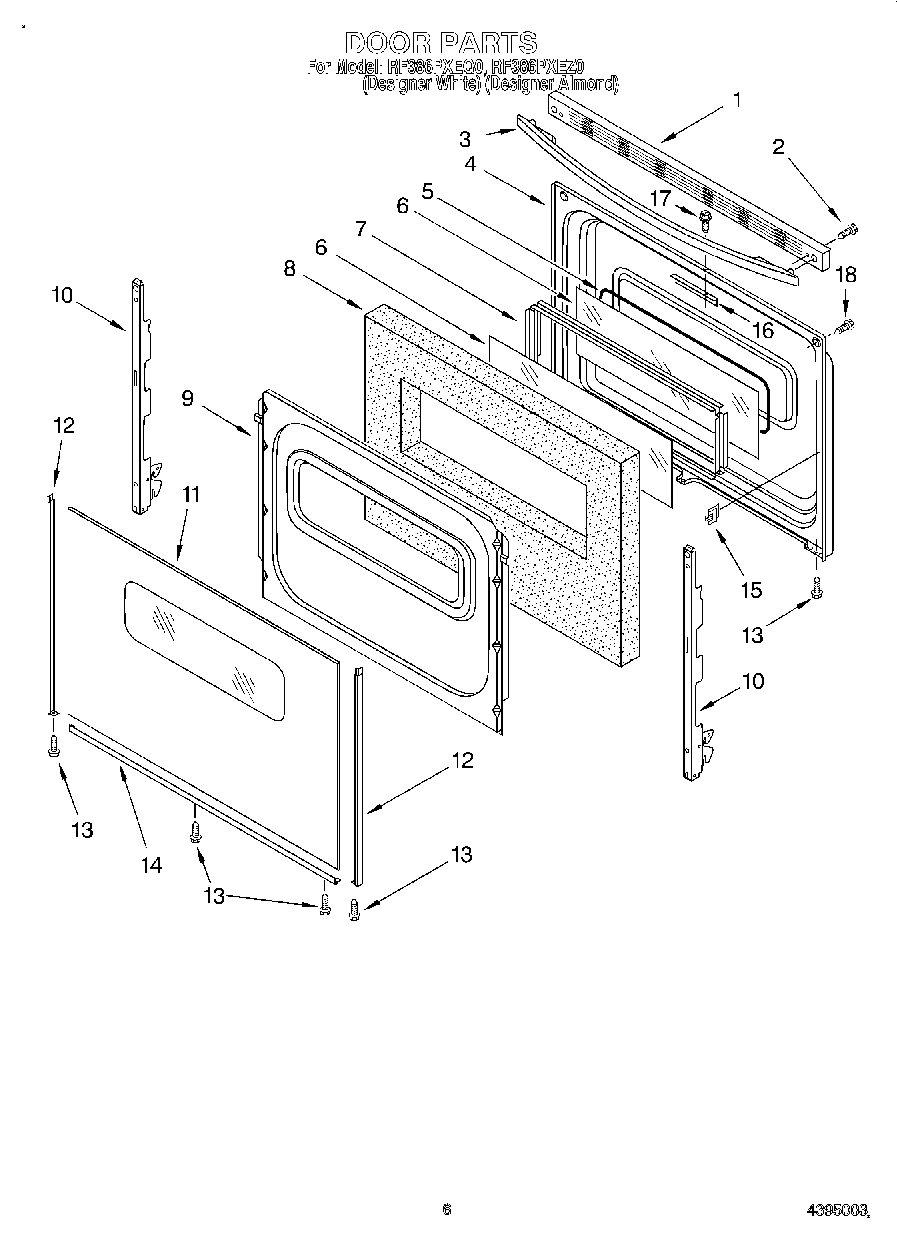

RF386PXEZ0 05 – DOOR, LIT/OPTIONAL

RF386PXEZ0 05 – DOOR, LIT/OPTIONAL

Written by

in

RF386PXEZ0 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	WP3196154 Whirlpool Screw Assembly
	3196696 Whirlpool Clip
	WPL LIT3196077
	3184020 Whirlpool Oven Wire
	3400964 Whirlpool Oven Clip
	Clip, Ground Wire
	W11244557 Whirlpool Screw
	Harness, Wire (Door Switch)
	Literature (Installation, Instructions (Template))
	WPL LIT3195944
	WPL 3196387
	WPL 3195153
	WPL LIT3196278
1	238614 Whirlpool Bumper Hinge
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Almond)
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Almond)
4	Liner, Door
5	WP9758164 Whirlpool Door Glass
6	8522415 Whirlpool Oven Wind Gasket
7	Frame, Glass
8	Insulation, Door
9	9761499 Whirlpool Oven Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	Glass, Outer (Almond)
11	WP9762476 Whirlpool Door Glass
13	W10491985 Whirlpool Screw
14	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
14	8184860 Whirlpool Oven Door Trim
15	Clip, Glass (4)
16	Bracket, Latch
17	WP3400832 Whirlpool Screw
18	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
18	Wire (14 Ga. 200 c Brown)
18	1
18	8212471 Whirlpool Oven Paint
18	Golden Harvest
18	Grease
18	18 Ga. 80~c Rating (Red)
18	Wire (12 Ga. 150 c Black)
18	Wire (14 Ga. 150 c Yellow)
18	511873 Whirlpool Refrigerator Paint
18	350942 Whirlpool Spray Paint
18	WPL 72112
18	Platinum (Uncut)
18	Enamal, Toast (1 Qt. Uncut)
18	Paint, Spray (13 Oz.) (Platinum)
18	Toast
18	Golden Harvest (Uncut)
18	72113 Whirlpool Touch-Up Paint
18	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18	Almond (Uncut)
18	WP72107 Whirlpool Touchup
18	799344 Whirlpool Refrigerator Paint
18	72017 Whirlpool Appliance Touch-Up Paint White
18	350956 Whirlpool Spray Assembly
18	WPL 799832
18	WPW10208653 Whirlpool Insulation
18	FOIL, ALUMINUM OVEN (18“ X 25 )
18	Wire (14 Ga. 150 c Orange)
18	Wire (14 Ga. 150 c Green)
18	Wire (14 Ga. 150 c Brown)
18	Wire (14 Ga. 150 c Blue)
18	242831 Whirlpool Oven Wire
18	WP179051 Whirlpool Screw
18	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
18	Paint, Spray 13 Oz. (Avocado)
18	paint, spray 13 oz. (coffee)
18	Paint, Touch-Up 1/2 Oz. (Coffee)
18	72109 Whirlpool Dacor Avocado Touch-Up Paint
18	285006 Whirlpool Spray
18	Wire, 25“ Roll (White 14 GA.)
18	Wire, 25` Roll (Red 14 Ga.)
18	Wire, 25` Roll (Black 14 Ga.)
18	350930 Whirlpool White Spray Paint
