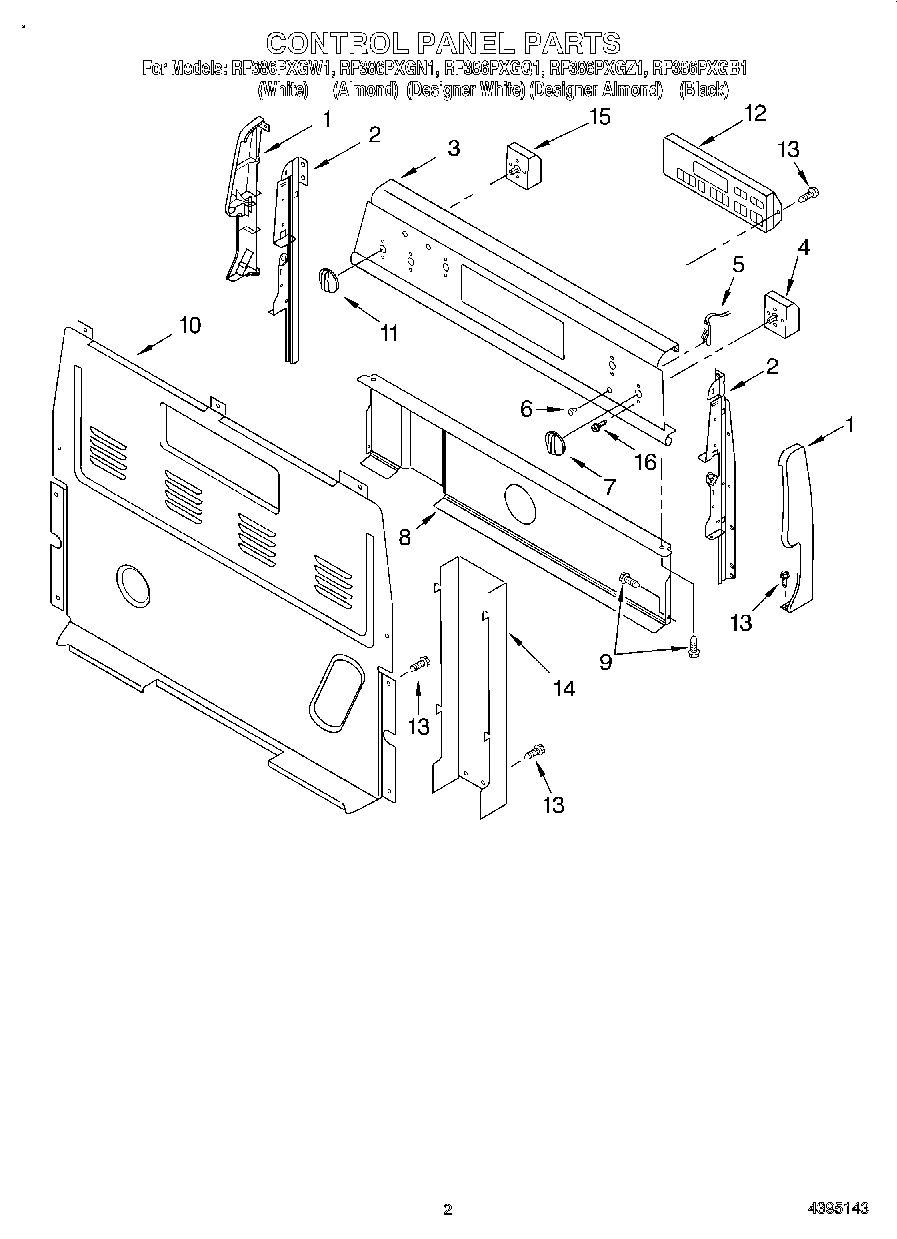

RF386PXGB1 02 – CONTROL PANEL

RF386PXGB1 02 – CONTROL PANEL

Written by

in

RF386PXGB1 02 – CONTROL PANEL

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (Almond Right Hand)
1Endcap (Almond Left Hand)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
1Endcap (Black Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Almond)
3Panel, Backguard (Black)
3Panel, Backguard (White)
4WP3149404 Whirlpool Oven Surface Element Switch
4WP3148952 Whirlpool Oven Infinite Switch
4WP3149400 Whirlpool Oven Infinite Switch
5Light, Indicator (Surface Unit (2))
5Light, Indicator (Accusimmer)
6WP3196068 Whirlpool Light Lens
7Knob, Infinite (4) (Almond)
7WP3196232 Whirlpool Knob
7WP3196231 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Knob, Accusimmer (White)
11Knob, Accusimmer (Almond)
11Knob, Accusimmer (Black)
12Control, Range (Black)
12Control, Range (White)
12Control, Range (Almond)
13SCREW
14WPW10326122 Whirlpool Black Cover
15Switch, Rotary
16WP3400882 Whirlpool Screw
