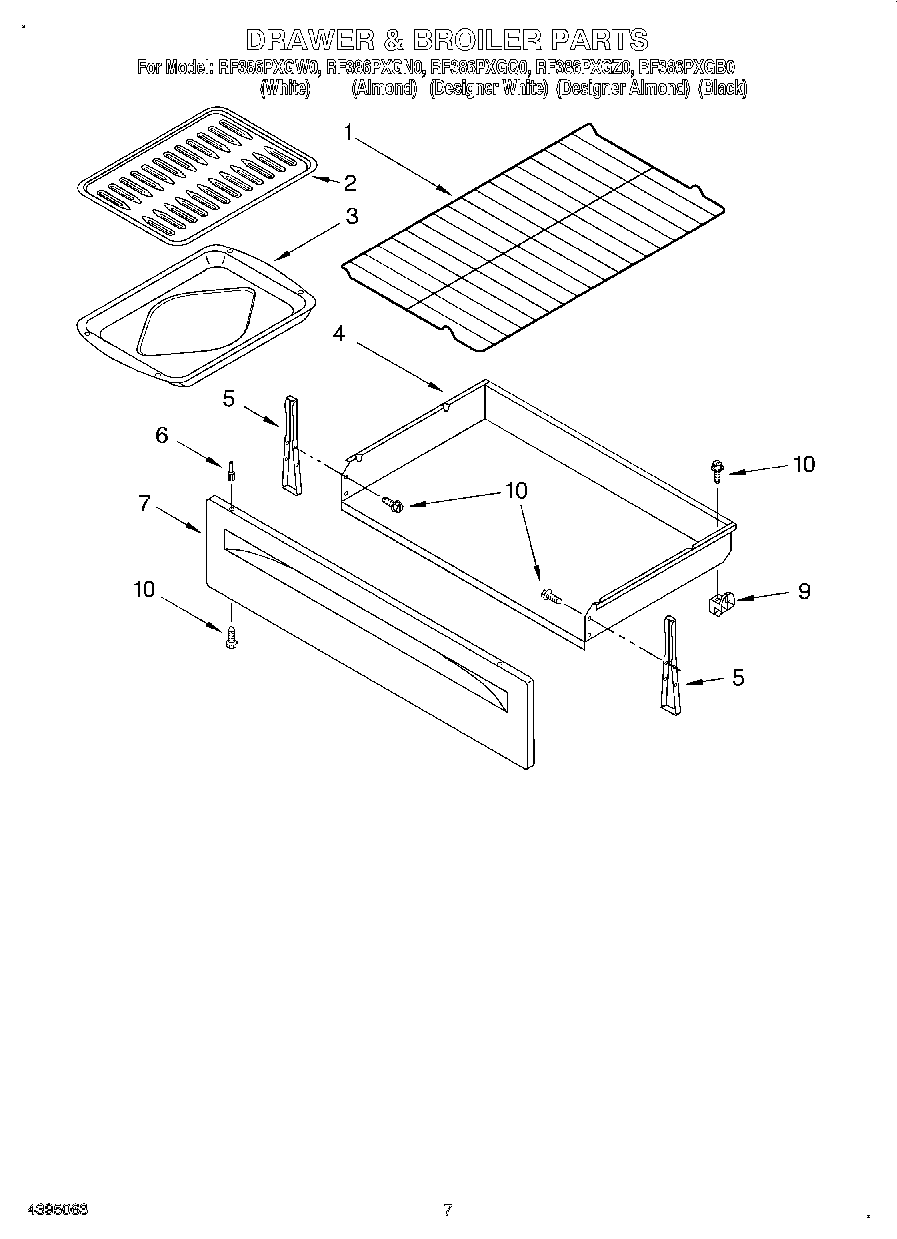

RF386PXGN0 05 – DRAWER & BROILER, LIT/OPTIONAL
Written by
in
RF386PXGN0 05 – DRAWER & BROILER, LIT/OPTIONAL
Products
Position
Product
WPL LIT8053401
Harness, Wire (Door Switch)
WP3196154 Whirlpool Screw Assembly
814381 Whirlpool Pin
W11244557 Whirlpool Screw
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
Clip, Ground Wire
3400964 Whirlpool Oven Clip
Literature (Installation, Instructions (Template))
WPL 8053514
Safer Cooking Tips
Literature Parts (Tech Sheet)
WPL 8053721
Literature (Instruction, Installation)
1
WPW10256908 Whirlpool Oven Range Rack
2
WP3195996 Whirlpool Pan Grid
3
WP3196076 Whirlpool Broil Pan
4
Drawer, Storage
5
W10838990 Whirlpool Mounting Bracket
6
WP3196813 Whirlpool Rivet
6
WP3196814 Whirlpool Rivet
6
3196815 Whirlpool Oven Rivet
7
W11230488 Whirlpool Drawer Panel
7
W11219377 Whirlpool Drawer Panel
7
Panel, Drawer Front (Almond)
9
WP8053334 Whirlpool Drawer Glide
10
Wire (14 Ga. 150 c Brown)
10
Wire (14 Ga. 150 c Blue)
10
Wire (14 Ga. 150 c Green)
10
Wire (14 Ga. 150 c Orange)
10
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
10
8212471 Whirlpool Oven Paint
10
Grease
10
WP3400832 Whirlpool Screw
10
1
10
Wire (14 Ga. 200 c Brown)
10
18 Ga. 80~c Rating (Red)
10
Wire (12 Ga. 150 c Black)
10
Wire (14 Ga. 150 c Yellow)
10
72113 Whirlpool Touch-Up Paint
10
242831 Whirlpool Oven Wire
10
Platinum (Uncut)
10
Enamal, Toast (1 Qt. Uncut)
10
Paint, Spray (13 Oz.) (Platinum)
10
Toast
10
Golden Harvest (Uncut)
10
Golden Harvest
10
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
10
Almond (Uncut)
10
WP72107 Whirlpool Touchup
10
799344 Whirlpool Refrigerator Paint
10
72017 Whirlpool Appliance Touch-Up Paint White
10
350956 Whirlpool Spray Assembly
10
WPL 72112
10
350942 Whirlpool Spray Paint
10
511873 Whirlpool Refrigerator Paint
10
paint, spray 13 oz. (coffee)
10
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
10
Paint, Spray 13 Oz. (Avocado)
10
Paint, Touch-Up 1/2 Oz. (Coffee)
10
72109 Whirlpool Dacor Avocado Touch-Up Paint
10
285006 Whirlpool Spray
10
Wire, 25“ Roll (White 14 GA.)
10
Wire, 25` Roll (Red 14 Ga.)
10
Wire, 25` Roll (Black 14 Ga.)
10
FOIL, ALUMINUM OVEN (18“ X 25 )
10
WPW10208653 Whirlpool Insulation
10
WPL 799832
10
350930 Whirlpool White Spray Paint
←
