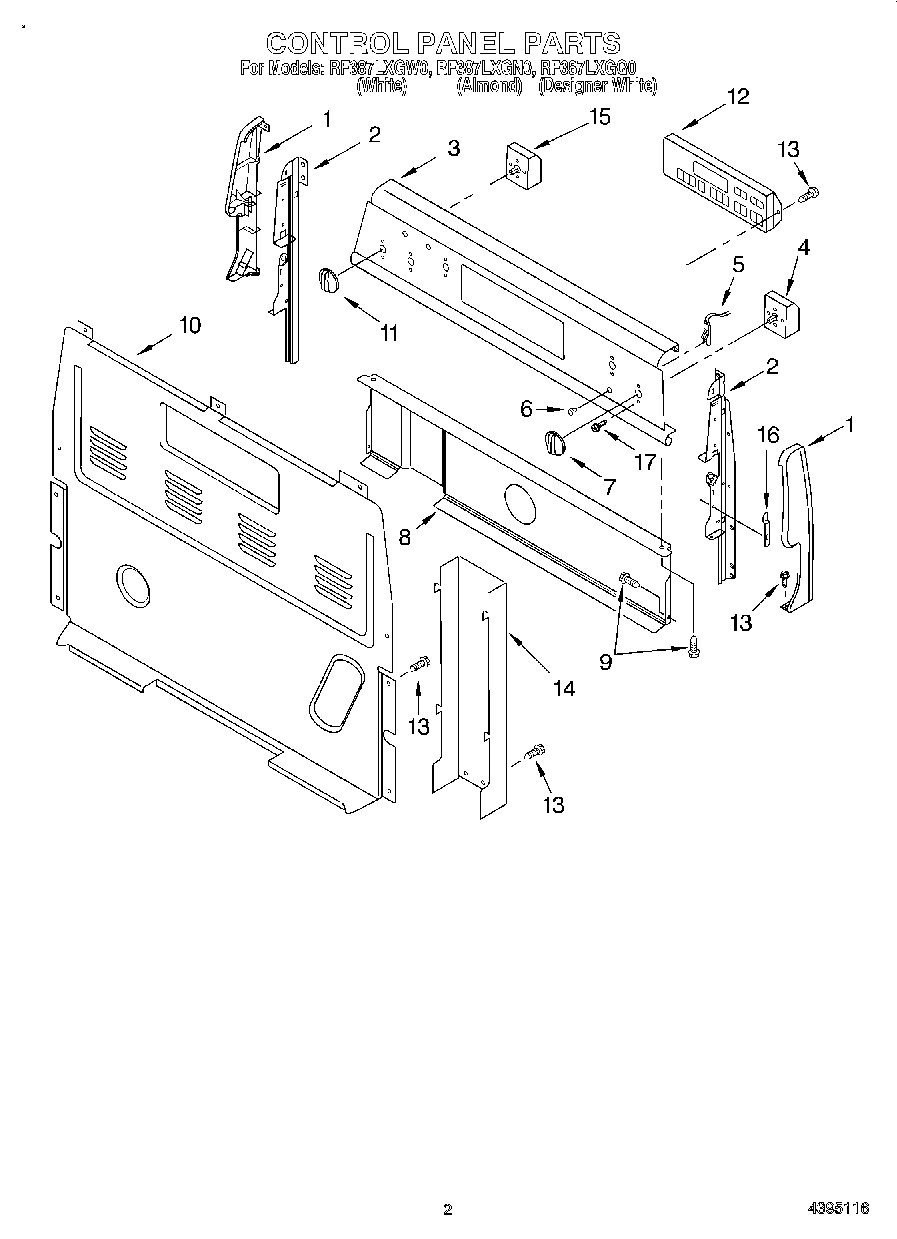

RF387LXGQ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Black)
3Panel, Backguard (White)
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5Light, Indicator (Surface Unit (2))
5Light, Indicator (Accusimmer)
6WP3196068 Whirlpool Light Lens
7WP3196231 Whirlpool Knob
7WP3196232 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Knob, Accusimmer (Black)
11Knob, Accusimmer (White)
12Control, Range (White)
12Control, Range (Black)
13SCREW
14WPW10326122 Whirlpool Black Cover
15Switch, Rotary
163196200 Whirlpool Clip
17WP3400882 Whirlpool Screw
