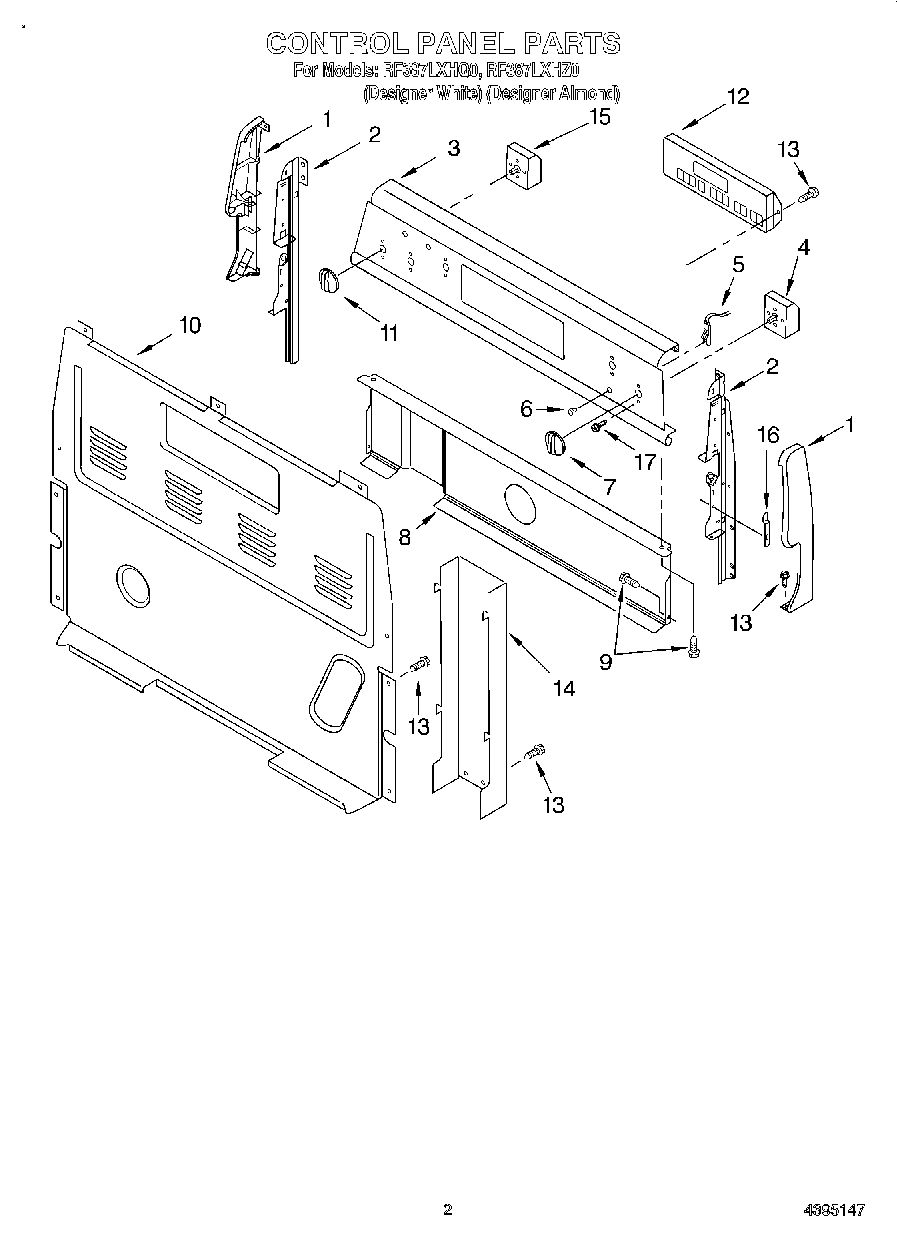

RF387LXHZ0 02 – CONTROL PANEL

RF387LXHZ0 02 – CONTROL PANEL

Written by

in

RF387LXHZ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Almond Right Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Almond Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Almond)
3Panel, Backguard (White)
4WP3148952 Whirlpool Oven Infinite Switch
4WP3149400 Whirlpool Oven Infinite Switch
5Light, Indicator (Surface Unit (2))
5Light, Indicator (Accusimmer)
6WP3196068 Whirlpool Light Lens
7Knob, Infinite (4) (Almond)
7WP3196232 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Knob, Accusimmer (White)
11Knob, Accusimmer (Almond)
12Control, Range (White)
12Control, Range (Almond)
13SCREW
14WPW10326122 Whirlpool Black Cover
15Switch, Rotary
163196200 Whirlpool Clip
17WP3400882 Whirlpool Screw
