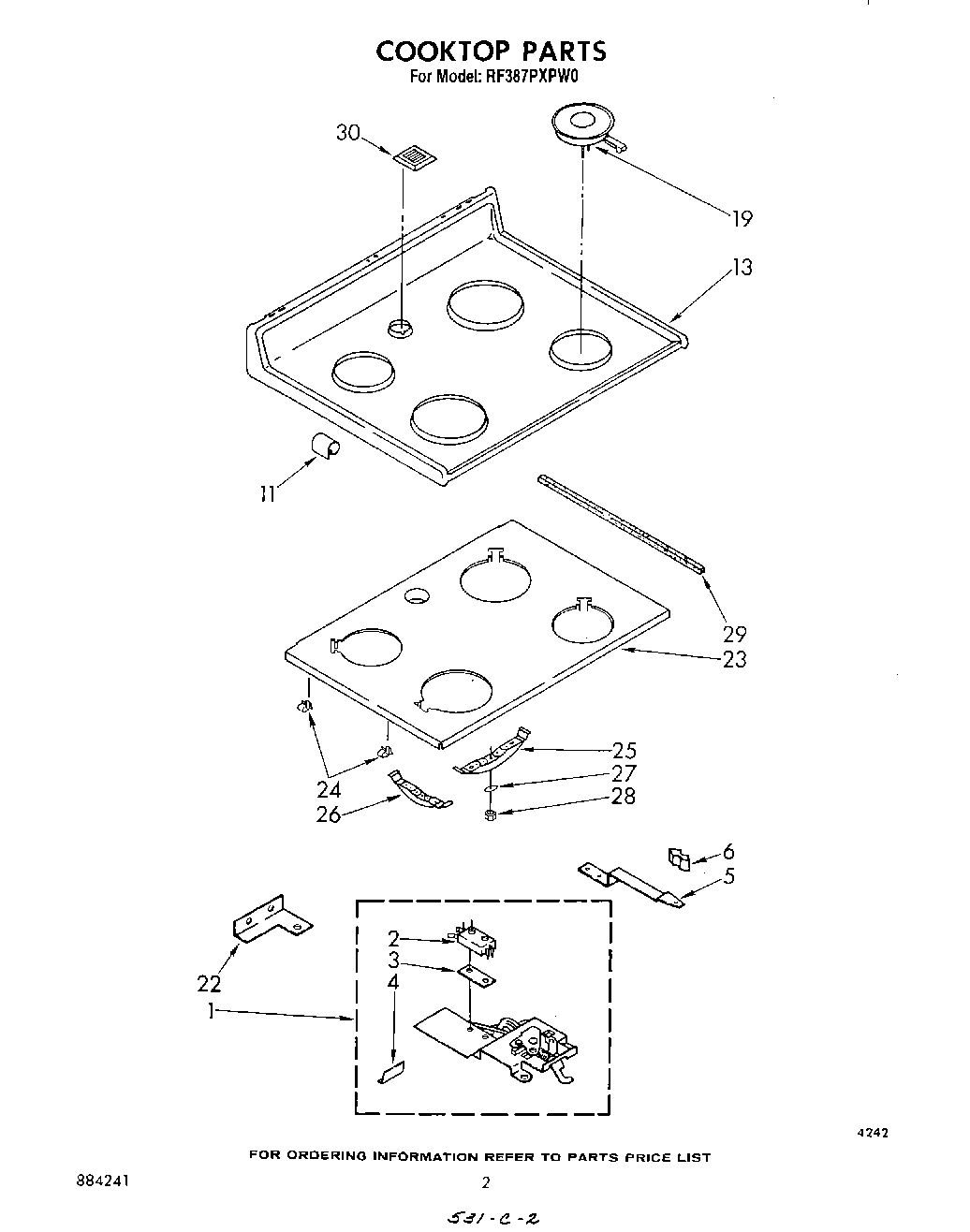

RF387PXPW0 02 – COOKTOP

Products

PositionProduct
1Latch Assembly
2Screw
2Safety Switch
3Insulator, Switch
4Screw
4Shield, Latch
5Handle, Latch
5Screw
5Screw (3)
5WP488627 Whirlpool Refrigerator Screw
6Knob, Latch
11SCREW
11Bracket, Cooktop (2)
13Cooktop (White)
13WP313808 Whirlpool Screw
13Cooktop (Almond)
13Cooktop (Harvest Gold)
13Cooktop (Platinum)
13Cooktop (Toast)
19WP3147132 Whirlpool Surface Element
19WP3147131 Whirlpool Surface Element
22Screw, 10A x 1/2 (2) (Black)
22WPL 312320
23Cooktop, Support
24Clip
25bracket, element (1.5 KW)
26bracket, element (2.0 KW)
27Spring, Leaf
28hex nut (8)
29Seal, Air Duct
30Cover, Vent
