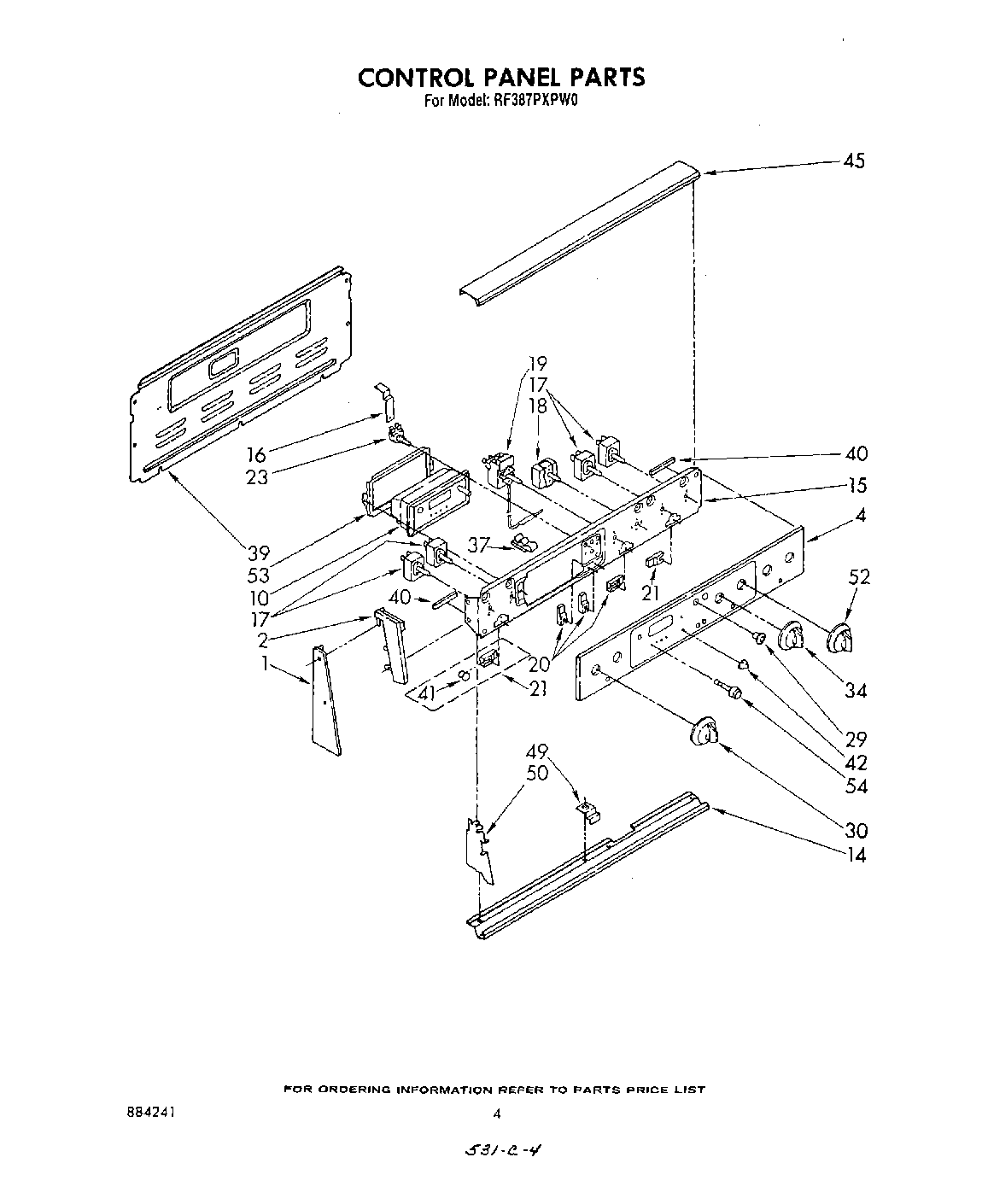

RF387PXPW0 03 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Washer
1	End Trim L.H.
2	End Cap R.H.
2	End Cap L.H.
2	W11693756 Whirlpool Screw Assembly
4	Control Panel, Glass
10	Timer, Digital
14	Bottom Trim
15	Bracket, Control
15	Washer
16	Brace, Control Bracket
16	Screw,
17	W10900107 Whirlpool Oven Surface Element Switch
18	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector
19	WP313808 Whirlpool Screw
19	Thermostat, Oven Pyro
20	Light, Indicator (Oven, Lock, Clean) (Includes Illus. 41)
21	Light, Indicator (Surface Unit) (2) (Includes Illus. 41)
23	Switch, Oven Light
23	Lockwasher
29	Bezel Switch (1)
30	Knob, Control (4)
34	Knob, Control (2)
34	Screw
37	Clip, Tube
39	SCREW
39	Harness-Conduit Asm.
40	Seal, Foam
41	Lens (4)
42	Knob, Bit Generator (Black)
45	Trim, Top
49	Screw
49	Support, Wedge
50	WP965173 Whirlpool Dishwasher Screw
50	Shield, Glass (2)
52	KNOB, CONTROL
52	WP688805 Whirlpool Spring Clip
53	Bracket, Timer
54	Sleeve-Igniter Wire (Lt. or Rt.)
