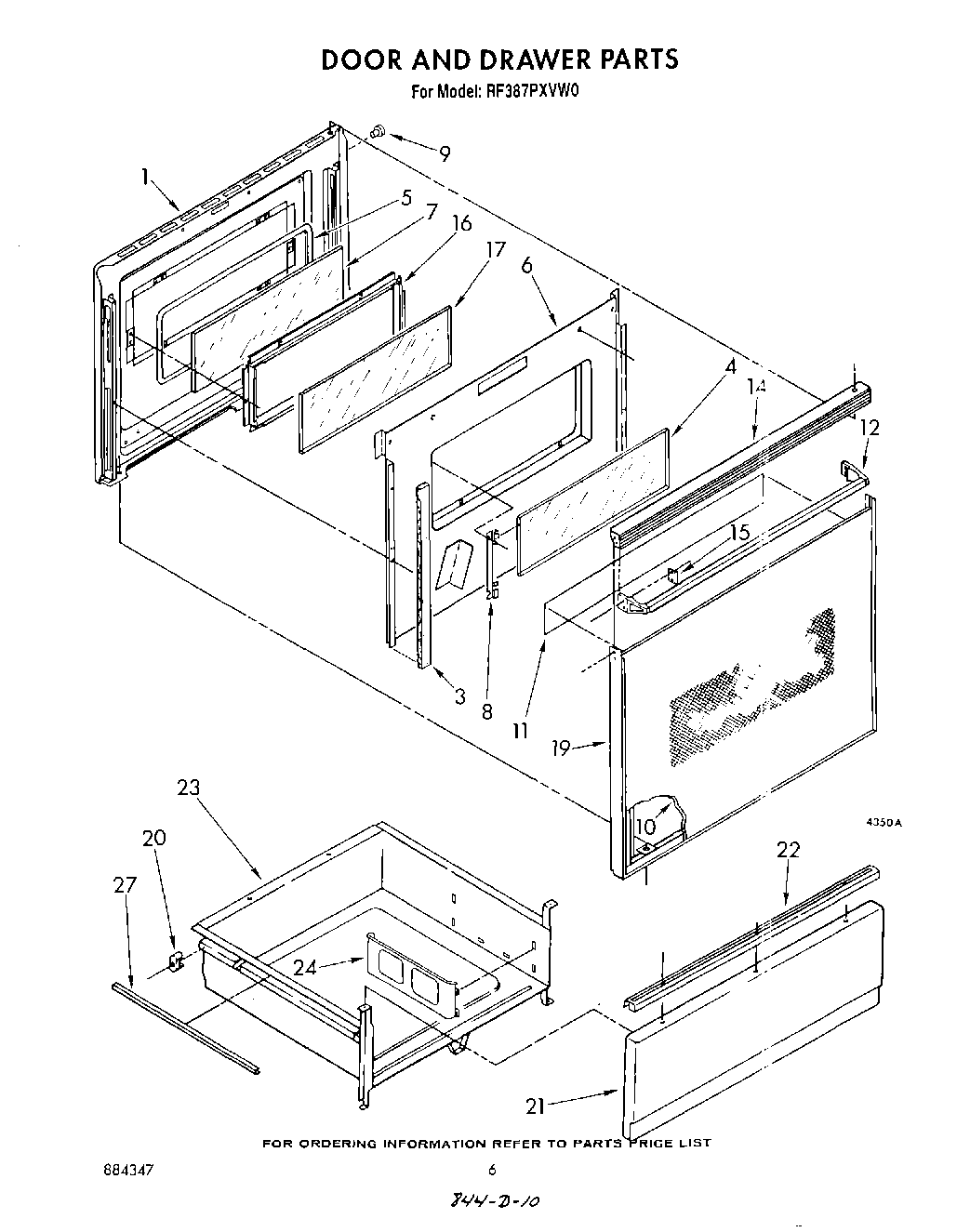

RF387PXVG0 05 – DOOR AND DRAWER

Products

Position	Product
1	Back Splash (Screw (4) 10AB x 1/2“)
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Door
12	WP355515 Whirlpool Screw
14	Top, Door (Black Model)
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
19	Frame, Door
20	Screw, 10A x 1/2 (2) (Black)
20	Glide, Rear (2)
21	Panel, Drawer (Almond)
21	Panel Drawer (White)
21	Panel, Drawer (Toast)
21	Panel, Drawer (Platinum)
21	WP488787 Whirlpool Refrigerator Screw
21	Panel Drawer (Harvest Gold)
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
23	Drawer, Utility
24	Rack, Literature
27	Protector, Drawer (2)
