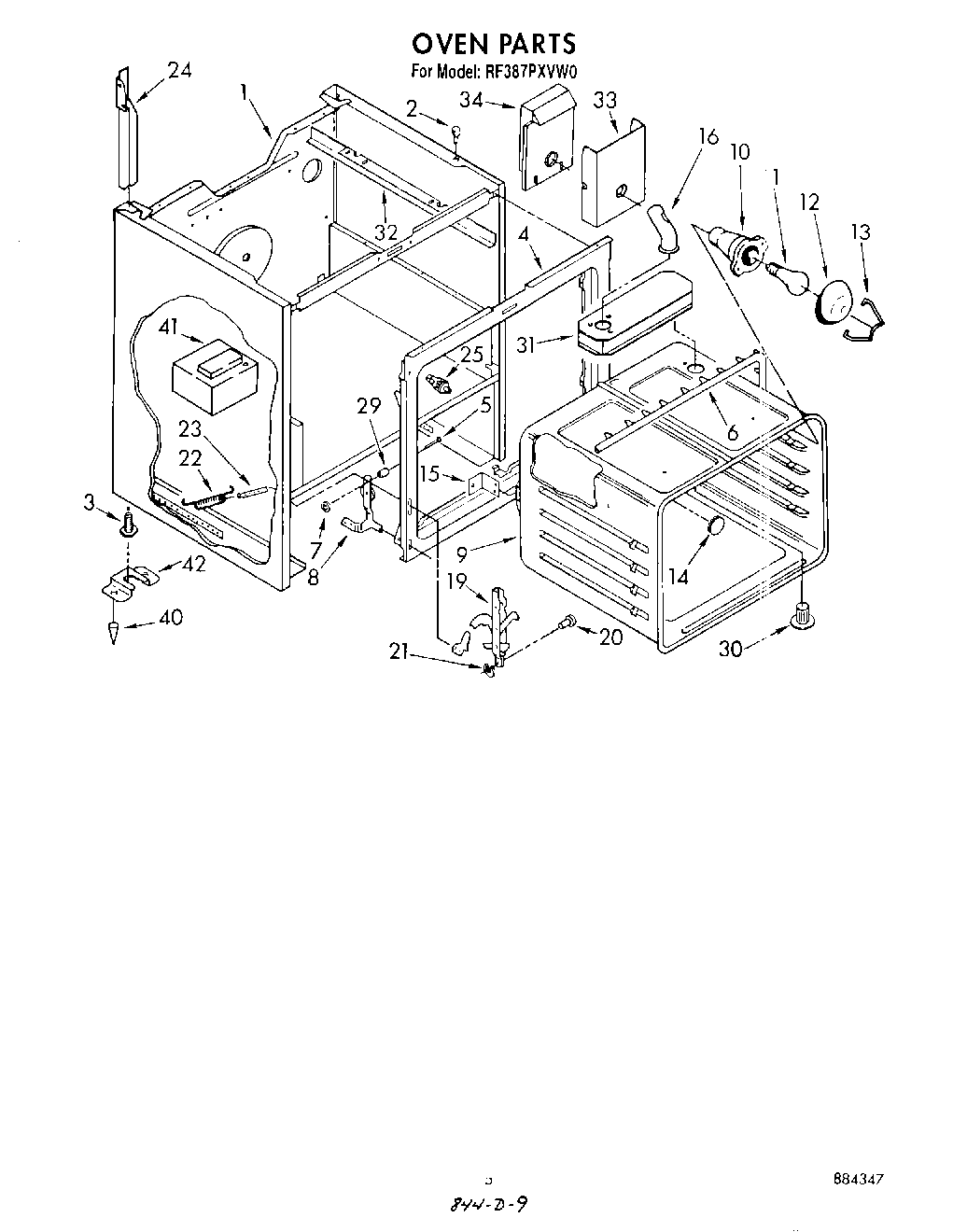

RF387PXVM0 04 – OVEN

Products

Position	Product
	Screw (10-12 x .875)
1	Main Chassis (White)
1	Main Chassis (Harvest Gold)
1	Main Chassis (Platinum)
1	Main Chassis (Almond)
1	Screw
1	Main Chassis (Toast)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	WP313808 Whirlpool Screw
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
9	Screw (3)
9	Oven (30“ Pyro)
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light
11	RANGE ONLY 40W 120V APPL BULB
12	Cover, Light
13	Retainer, Light
14	Plug Button
15	Bracket, Oven (Mounting)
16	WP308685 Whirlpool Microwave Screw
16	Vent, Oven
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	WP308126 Whirlpool Door Spring
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover
24	Wire Cover-Controls (Right)
24	SCREW
25	Switch, Door
29	Snubber, Door (2)
30	Eliminator, Smoke
31	Box, Vent
32	panel, top (screw, 10a x 3/8 (3))
32	Support, Chassis
33	Shield, Vent
33	Screw (2)
34	WP488627 Whirlpool Refrigerator Screw
34	Vent, Box
40	Anchor, Plastic
41	Block, Balance
42	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
42	Screw
