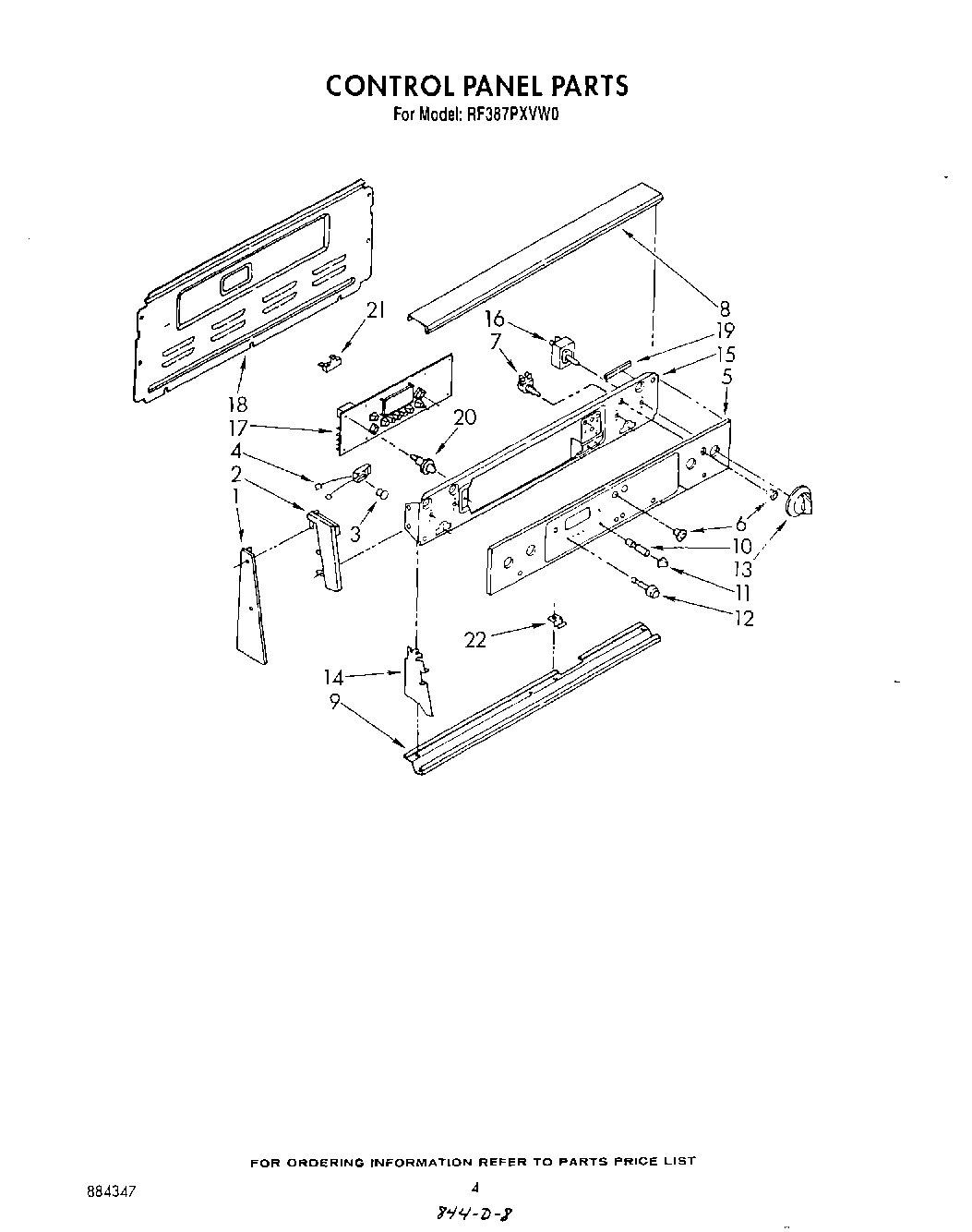

RF387PXVW0 03 – CONTROL PANEL

RF387PXVW0 03 – CONTROL PANEL

Written by

in

RF387PXVW0 03 – CONTROL PANEL

Products

PositionProduct
1SCREW
1Washer
1End Trim L.H.
2End Cap R.H.
2End Cap L.H.
3Lens (4)
4Light, Indicator (Locked)
4Light, Indicator (Surface Unit) (2) (Includes Illus. 41)
5Glass, Panel
6Bezel Switch (1)
7Lockwasher
7Switch, Oven Light
7nut, 3/8 x 27
8Screw,
8Trim, Top
9Bottom Trim
10Shaft, Bit Generator
11Knob, Bit Generator (Black)
12WPL 313958
13Knob, Control (4)
14W11693756 Whirlpool Screw Assembly
14Shield, Glass (2)
15Bracket, Control Panel
16Switch, Infinite (8“ Unit (2))
16W10900107 Whirlpool Oven Surface Element Switch
16WP486579 Whirlpool Air Conditioner Screw
17Control, Timer
18Harness-Conduit Asm.
19Seal, Foam
20WPL 313087
21Screw
21WP3196548 Whirlpool Thermal Fuse
22WP965173 Whirlpool Dishwasher Screw
22Support, Wedge
