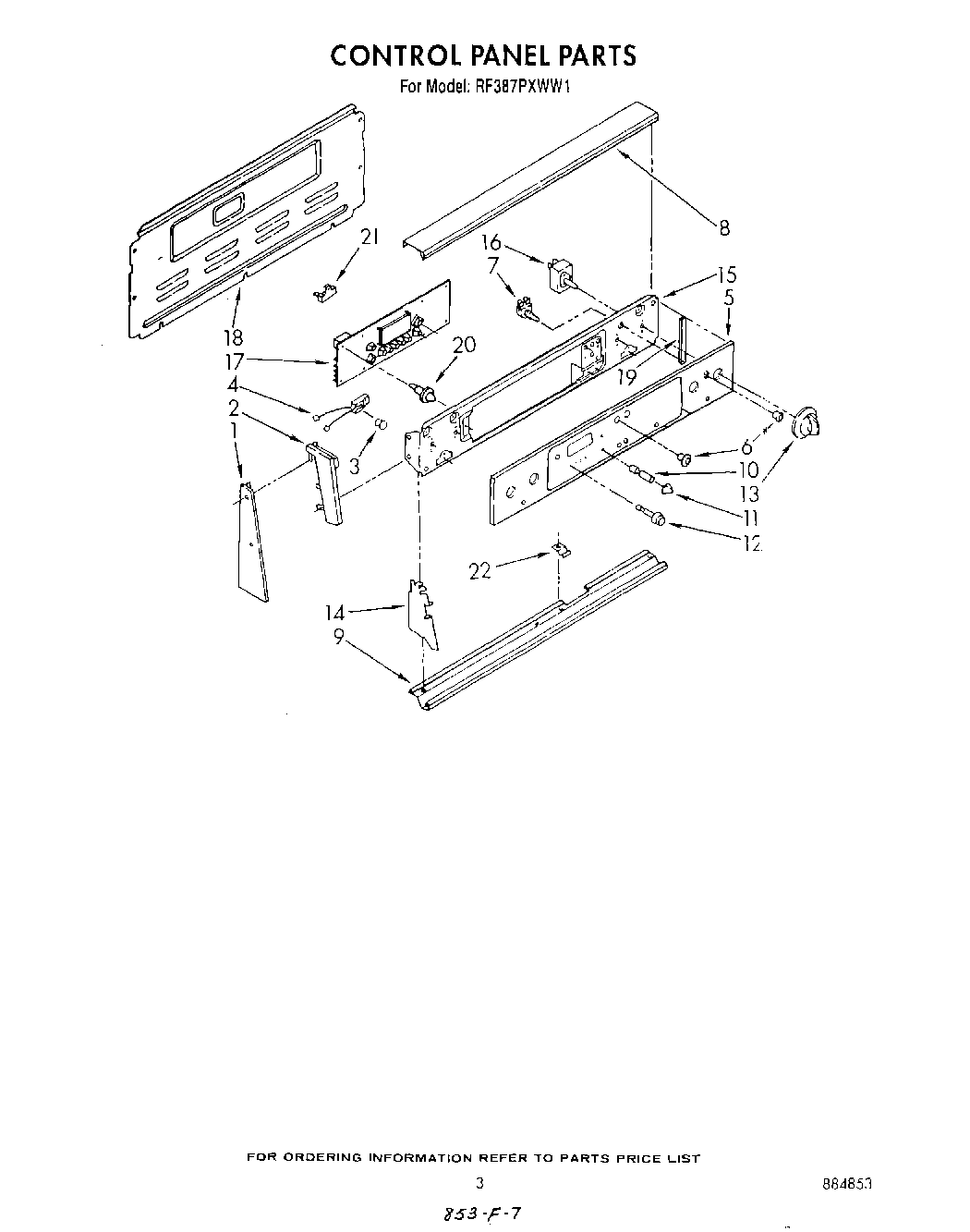

RF387PXWN1 03 – CONTROL PANELadmin2025-04-26T12:47:11+00:00RF387PXWN1 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Washer |
| 1 | SCREW |
| 1 | End Trim L.H. |
| 2 | End Cap L.H. |
| 2 | End Cap R.H. |
| 3 | Lens (4) |
| 4 | Light, Indicator (Surface Unit) (2) (Includes Illus. 41) |
| 4 | Light, Indicator (Locked) |
| 5 | Glass, Panel |
| 6 | Bezel Switch (1) |
| 7 | Switch, Oven Light |
| 7 | Lockwasher |
| 7 | nut, 3/8 x 27 |
| 8 | Top Trim, Black |
| 8 | Screw, |
| 9 | Bottom Trim |
| 10 | Shaft, Bit Generator |
| 11 | Knob, Bit Generator (Black) |
| 12 | WPL 313958 |
| 13 | WP3149983 Whirlpool Knob |
| 14 | W11693756 Whirlpool Screw Assembly |
| 14 | Shield, Glass (2) |
| 15 | Bracket, Control Panel |
| 16 | Switch, Infinite (8`` Unit (2)) |
| 16 | WP486579 Whirlpool Air Conditioner Screw |
| 16 | W10900107 Whirlpool Oven Surface Element Switch |
| 17 | Control, Timer |
| 18 | Harness-Conduit Asm. |
| 19 | Seal, Foam (4) |
| 20 | WPL 313087 |
| 21 | WP3196548 Whirlpool Thermal Fuse |
| 21 | Screw |
| 22 | WP965173 Whirlpool Dishwasher Screw |
| 22 | Support, Wedge |
