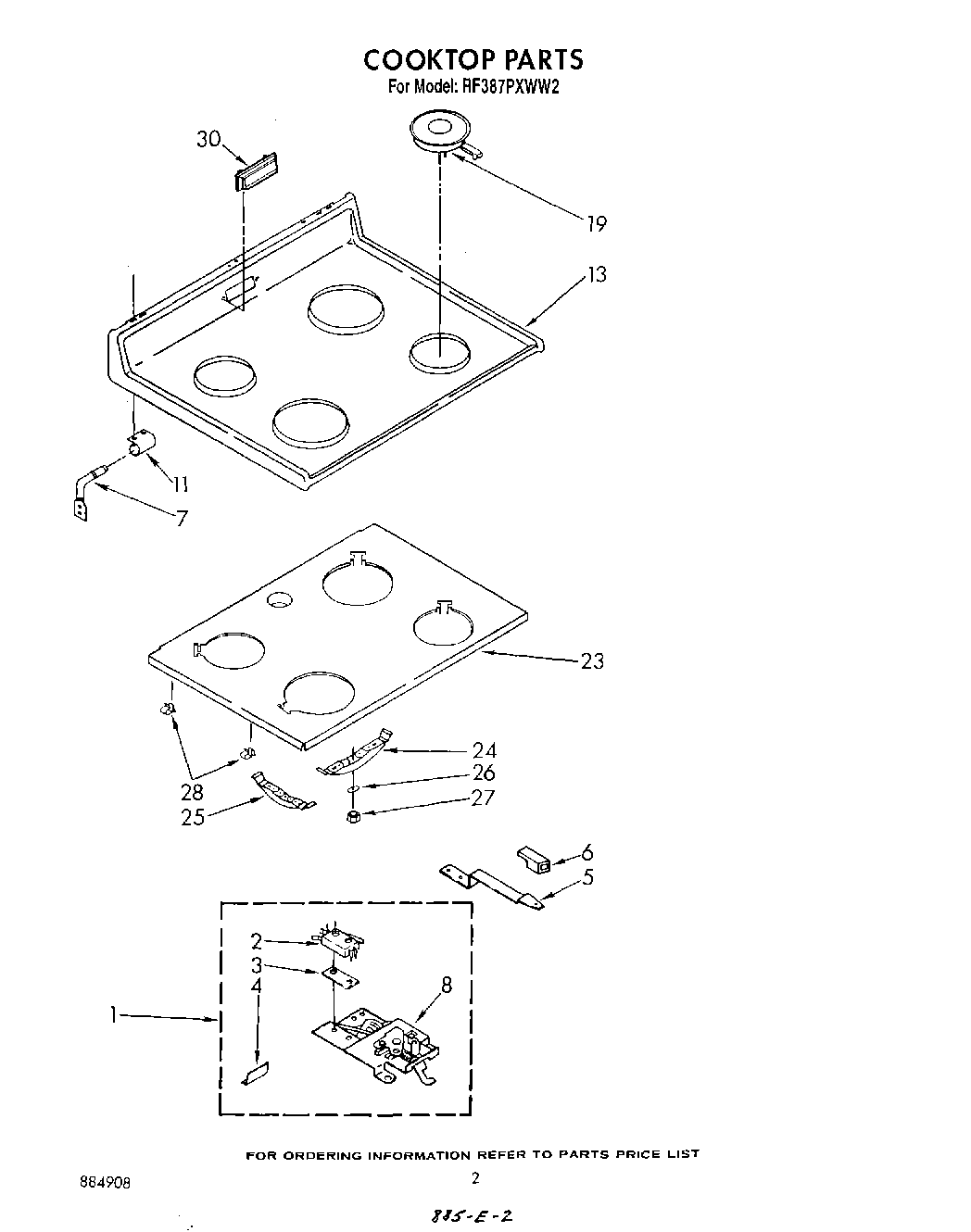

RF387PXWN2 02 – COOKTOP

Products

Position	Product
1	Latch Assembly (Pyro)
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Screw (3)
5	Screw
5	WP488627 Whirlpool Refrigerator Screw
5	Handle, Latch
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
7	Pin, Cooktop (2)
8	WPL 3149270
11	Bracket, Cooktop (2)
11	SCREW
13	Cooktop (Almond)
13	Cooktop (White)
19	WP3147131 Whirlpool Surface Element
19	WP3147132 Whirlpool Surface Element
23	Cooktop Support
24	bracket, element (1.5 KW)
25	bracket, element (2.0 KW)
26	Spring, Leaf
27	hex nut (8)
28	Clip
30	cover, vent (almond)
30	Clip, Vent Cover
30	Cover, Vent (White)
