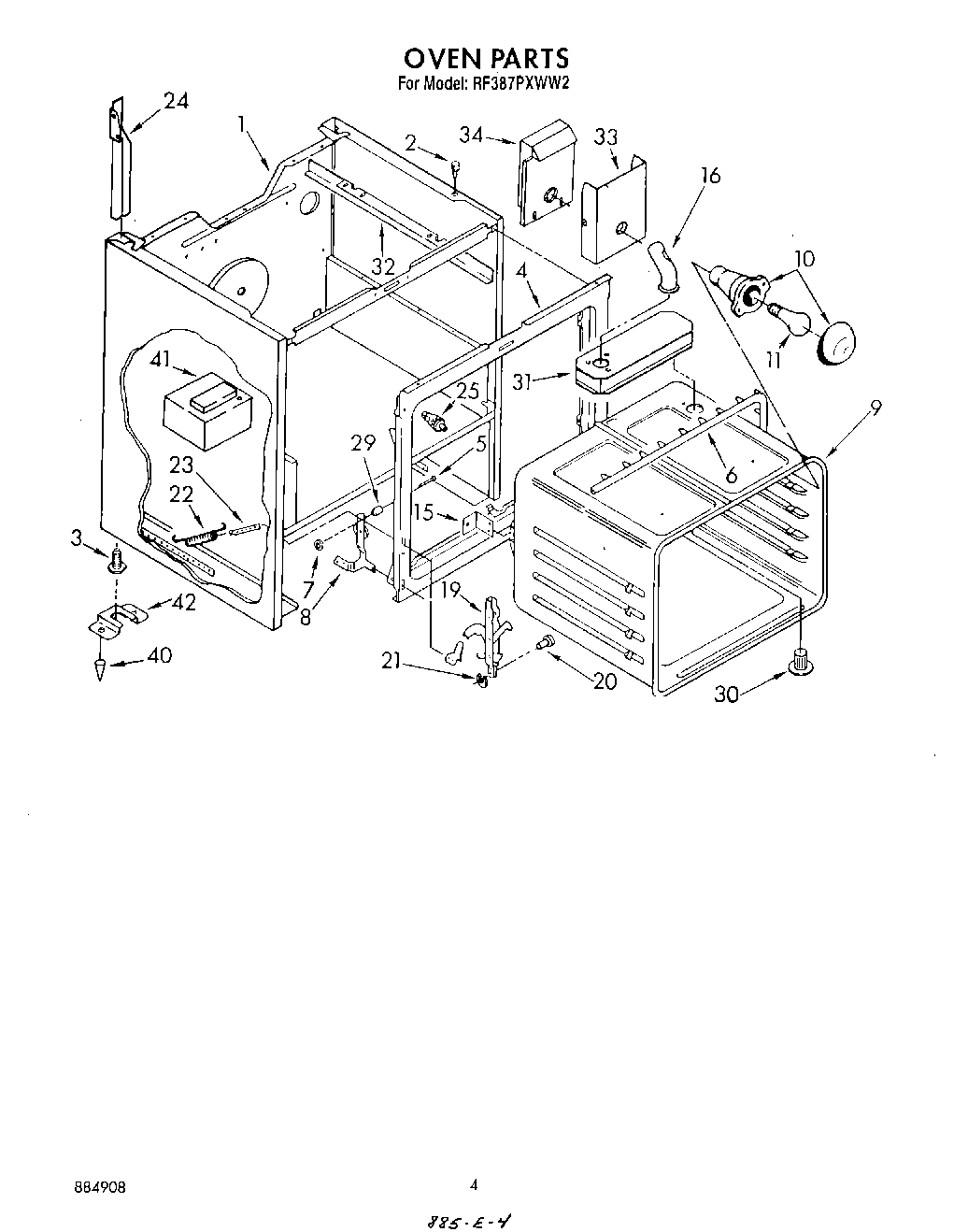

RF387PXWN2 04 – OVEN

Products

Position	Product
1	Main Chassis (Almond)
1	Main Chassis (White)
1	Screw
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge (R.H.)
8	Hinge (L.H.)
9	Oven (30“ Pyro)
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
11	RANGE ONLY 40W 120V APPL BULB
15	Bracket, Oven (Mounting)
16	WP308685 Whirlpool Microwave Screw
16	Vent, Oven
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	WP308126 Whirlpool Door Spring
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover-Controls (Right)
24	Wire Cover
24	SCREW
25	Switch, Door
29	Snubber, Door (2)
30	Eliminator, Smoke
31	Box, Vent
32	Support, Chassis
32	panel, top (screw, 10a x 3/8 (3))
33	Shield, Vent
33	Screw (2)
34	Vent, Box
34	WP488627 Whirlpool Refrigerator Screw
40	Anchor, Plastic
41	Block, Balance
42	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
42	WPL 310433
42	Screw
