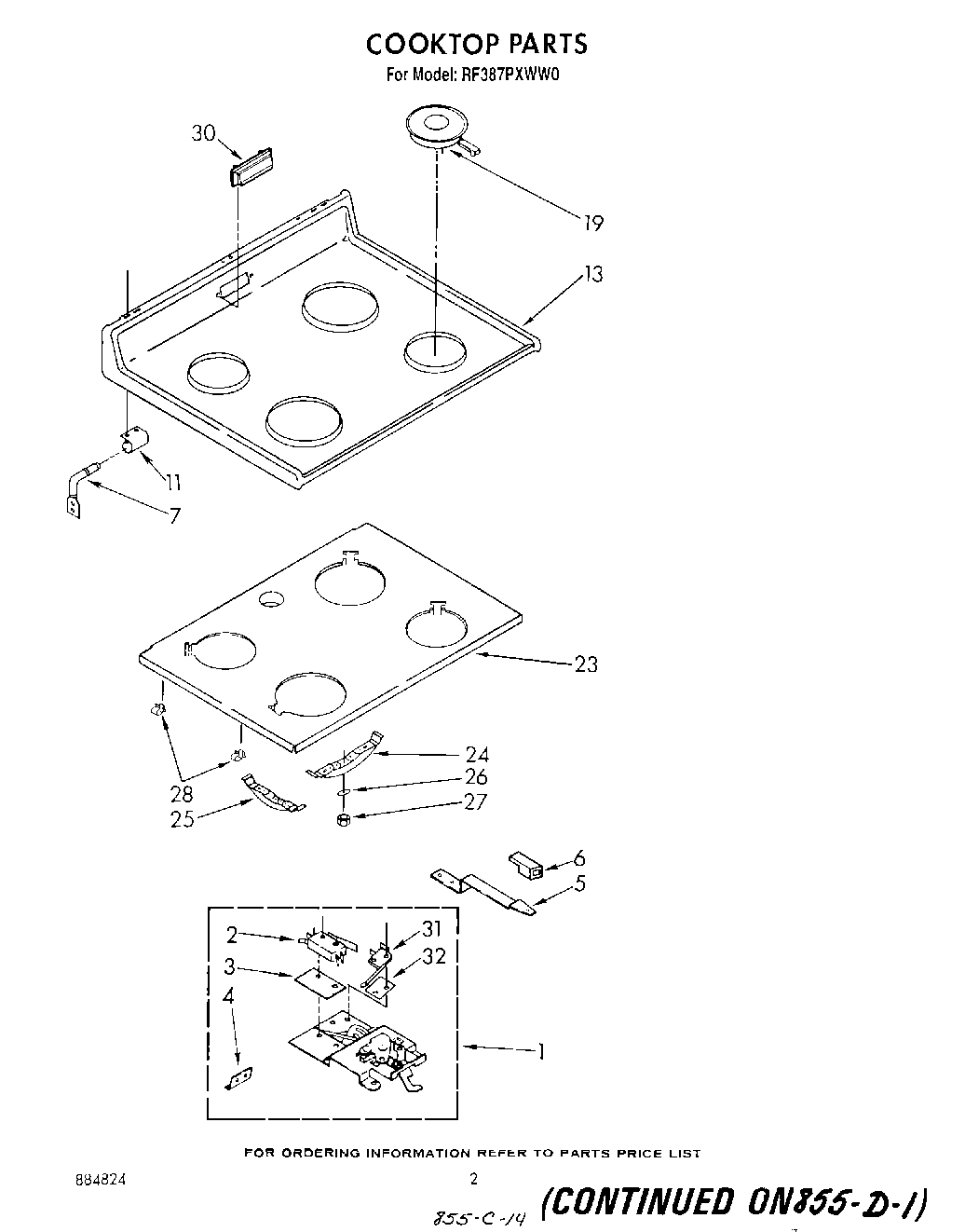

RF387PXWW0 02 – COOKTOP

Products

PositionProduct
1Latch Assembly (Pyro)
2Safety Switch
2Screw
3Insulator, Switch
4Shield, Latch
4Screw
5Screw (3)
5Screw
5WP488627 Whirlpool Refrigerator Screw
5Handle, Latch
6WP486579 Whirlpool Air Conditioner Screw
6Knob, Latch
7Pin, Cooktop (2)
11SCREW
11Bracket, Cooktop (2)
13Cooktop (Almond)
13Cooktop (White)
19WP3147131 Whirlpool Surface Element
19WP3147132 Whirlpool Surface Element
23Cooktop Support
24bracket, element (1.5 KW)
25bracket, element (2.0 KW)
26Spring, Leaf
27hex nut (8)
28Clip
30Cover, Vent (White)
30cover, vent (almond)
30Clip, Vent Cover
31Switch, Lock
32WPL 3147864
