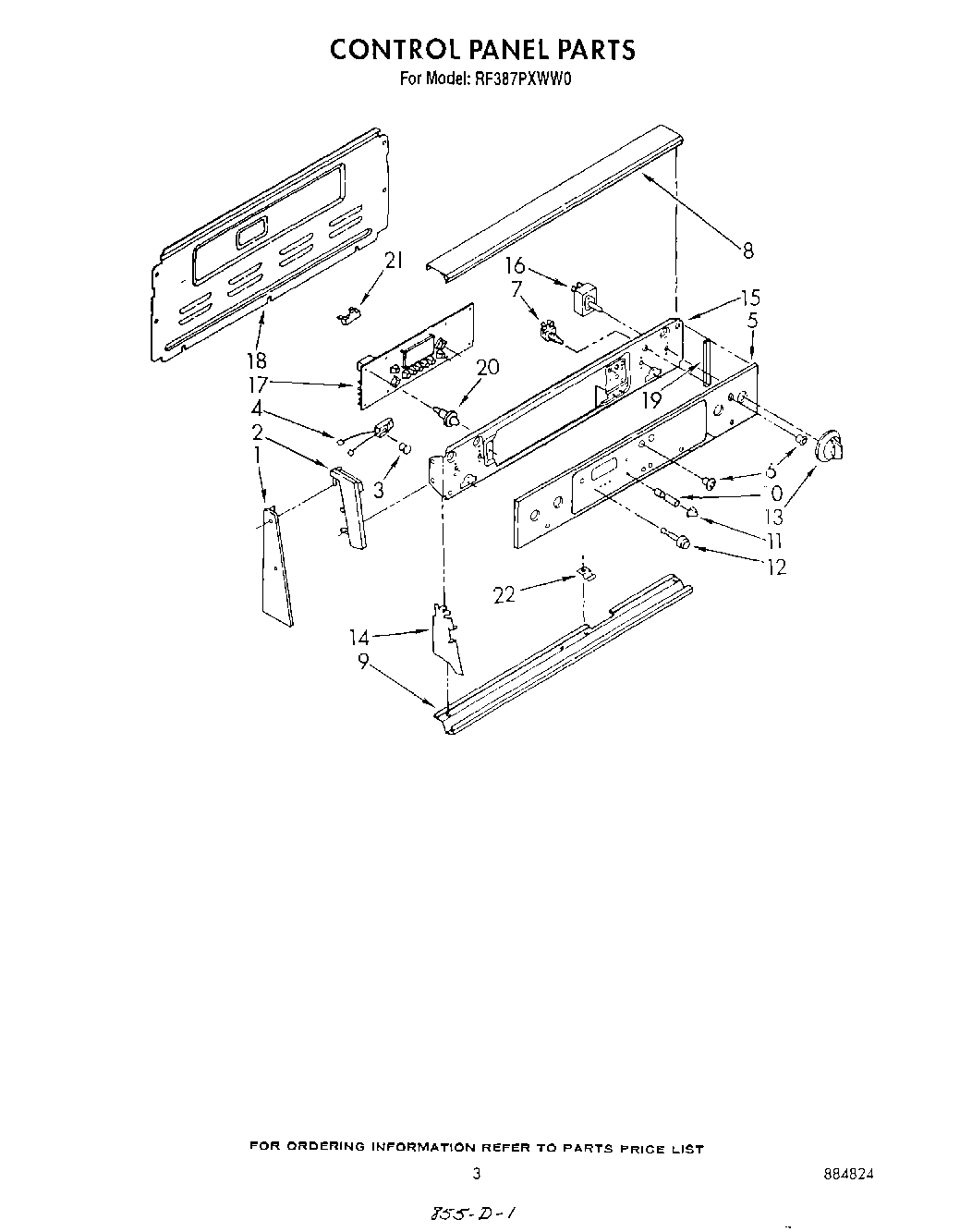

RF387PXWW0 03 – CONTROL PANEL

RF387PXWW0 03 – CONTROL PANEL

Written by

in

RF387PXWW0 03 – CONTROL PANEL

Products

PositionProduct
1Washer
1SCREW
1End Trim L.H.
2End Cap L.H.
2End Cap R.H.
3Lens (4)
4Light, Indicator (Surface Unit) (2) (Includes Illus. 41)
4Light, Indicator (Locked)
5Glass, Panel
6Bezel Switch (1)
7Switch, Oven Light
7Lockwasher
7nut, 3/8 x 27
8Top Trim, Black
8Screw,
9Bottom Trim
10Shaft, Bit Generator
11Knob, Bit Generator (Black)
12WPL 313958
13WP3149983 Whirlpool Knob
14W11693756 Whirlpool Screw Assembly
14Shield, Glass (2)
15Bracket, Control Panel
16Switch, Infinite (8“ Unit (2))
16WP486579 Whirlpool Air Conditioner Screw
16W10900107 Whirlpool Oven Surface Element Switch
17Control, Timer
18Harness-Conduit Asm.
19Seal, Foam (4)
20WPL 313087
21WP3196548 Whirlpool Thermal Fuse
21Screw
22WP965173 Whirlpool Dishwasher Screw
22Support, Wedge
