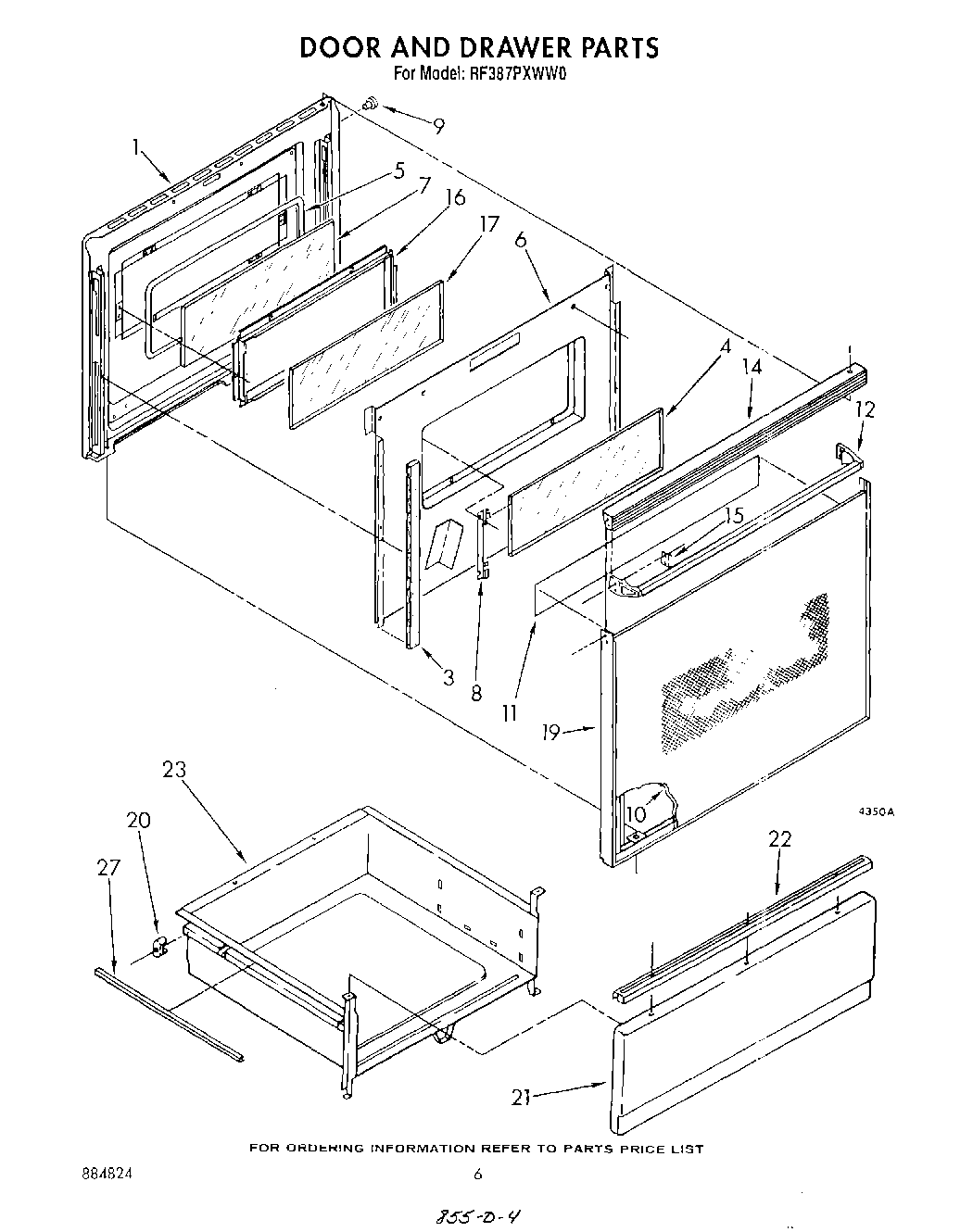

RF387PXWW0 06 – DOOR AND DRAWER, LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT3149918
	511873 Whirlpool Refrigerator Paint
	WPL LIT884824
	WPL LIT313358
	WPL LIT3148614
	WPL LIT3149775
	WPL LIT3149507
1	Back Splash (Screw (4) 10AB x 1/2“)
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
11	Foil, Door
12	WP355515 Whirlpool Screw
12	Handle, Oven Door
14	Top, Door (Black Model)
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
19	Frame, Door
20	Glide, Rear (2)
20	Screw, 10A x 1/2 (2) (Black)
21	Panel, Drawer (Almond)
21	Panel Drawer (White)
21	WP488787 Whirlpool Refrigerator Screw
22	WP488627 Whirlpool Refrigerator Screw
22	Handle, Drawer
23	Drawer, Utility
24	Pad, Sound
27	799344 Whirlpool Refrigerator Paint
27	Protector, Drawer (2)
27	Almond (Uncut)
27	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
27	Grease
27	72113 Whirlpool Touch-Up Paint
27	Golden Harvest
27	Paint, Touch-Up 1/2 Oz. (Coffee)
27	18 Ga. 80~c Rating (Red)
27	72109 Whirlpool Dacor Avocado Touch-Up Paint
27	285006 Whirlpool Spray
27	350930 Whirlpool White Spray Paint
27	350956 Whirlpool Spray Assembly
27	dressing, element
27	72017 Whirlpool Appliance Touch-Up Paint White
27	Rotisserie Kit (RCK 81)
27	Wire, 25` Roll (Red 14 Ga.)
27	WP72107 Whirlpool Touchup
27	Golden Harvest (Uncut)
27	Wire, 25“ Roll (White 14 GA.)
27	Toast
27	Paint, Spray (13 Oz.) (Platinum)
27	Enamal, Toast (1 Qt. Uncut)
27	Wire (14 Ga. 150 c Green)
27	Wire (14 Ga. 150 c Brown)
27	WPL 72112
27	Wire (14 Ga. 150 c Blue)
27	350942 Whirlpool Spray Paint
27	WPL 799832
27	242831 Whirlpool Oven Wire
27	WPW10208653 Whirlpool Insulation
27	FOIL, ALUMINUM OVEN (18“ X 25 )
27	Wire (14 Ga. 150 c Orange)
27	Wire (14 Ga. 150 c Yellow)
27	Wire (12 Ga. 150 c Black)
27	8212471 Whirlpool Oven Paint
27	Leveler (Thinner) (2oz.)
27	paint, spray 13 oz. (coffee)
27	Enamel, New Avocado (1 Qt. Uncut)
27	Platinum (Uncut)
27	Enamel, Coffee (1 Qt. Uncut)
27	1
27	Wire (14 Ga. 200 c Brown)
27	Paint, Spray 13 Oz. (Avocado)
27	Wire, 25` Roll (Black 14 Ga.)
