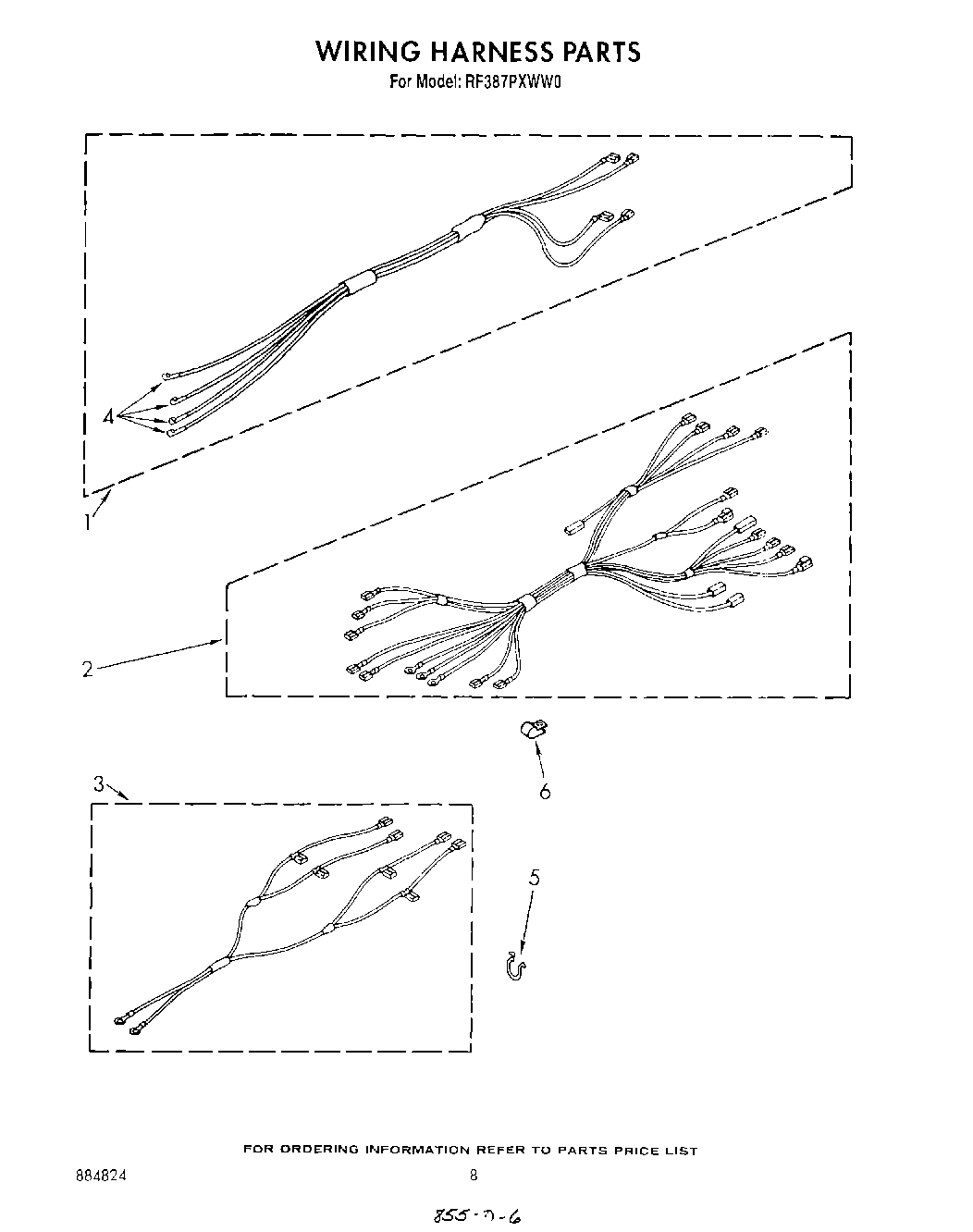

RF387PXWW0 07 – WIRING HARNESS

Written by

Products

Position	Product
1	Harness, Supply
2	Harness, Wire (Oven)
3	Harness, Wire (Oven Light)
3	Harness, Wire (Lock Switch)
4	Sleeve
5	16515 Whirlpool Clip
6	488946 Whirlpool Air Conditioner Clamp
