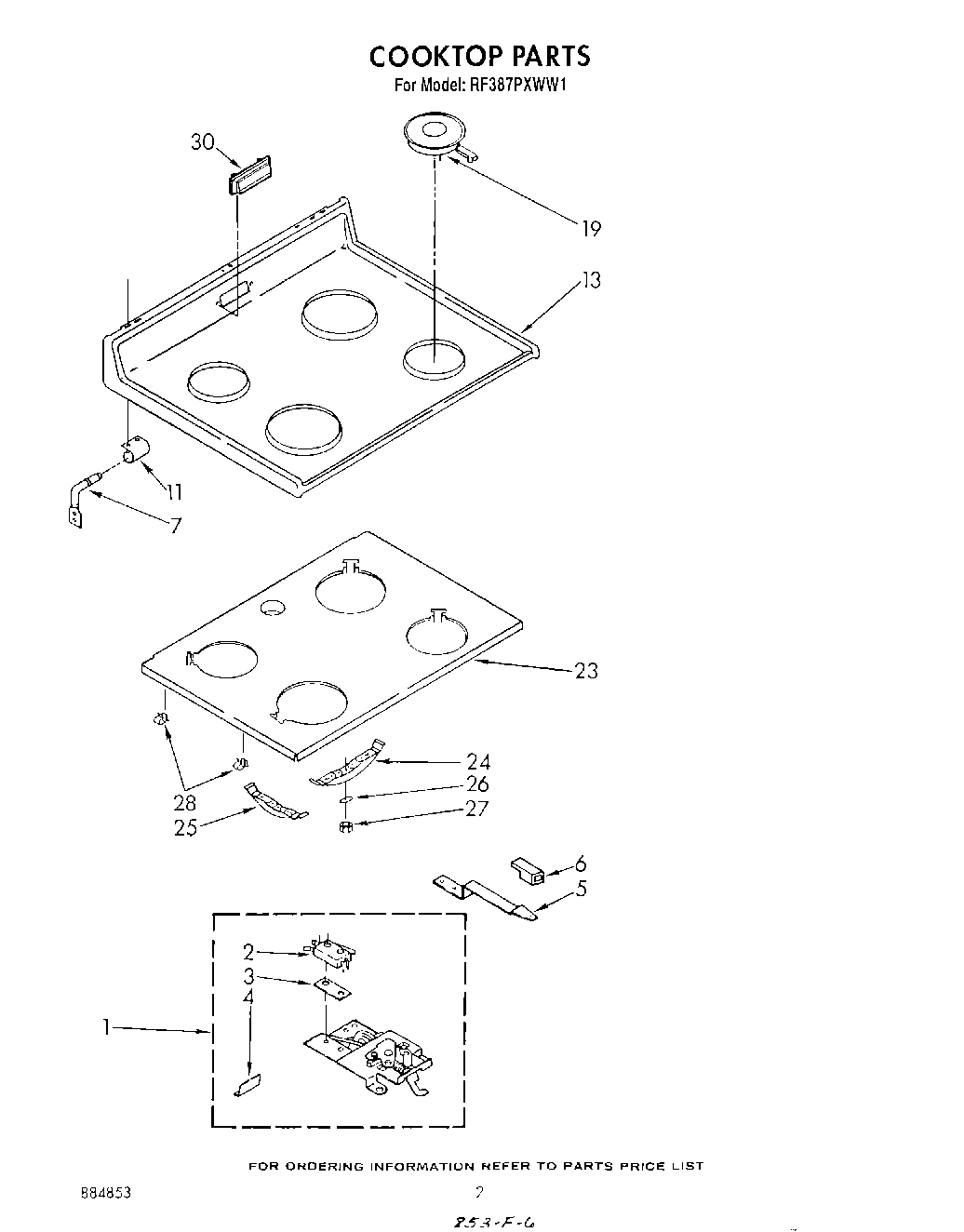

| 1 | Latch Assembly (Pyro) |
| 2 | Safety Switch |
| 2 | Screw |
| 3 | Insulator, Switch |
| 4 | Shield, Latch |
| 4 | Screw |
| 5 | Screw (3) |
| 5 | Screw |
| 5 | WP488627 Whirlpool Refrigerator Screw |
| 5 | Handle, Latch |
| 6 | WP486579 Whirlpool Air Conditioner Screw |
| 6 | Knob, Latch |
| 7 | Pin, Cooktop (2) |
| 8 | WPL 3149270 |
| 11 | Bracket, Cooktop (2) |
| 11 | SCREW |
| 13 | Cooktop (Almond) |
| 13 | Cooktop (White) |
| 19 | WP3147131 Whirlpool Surface Element |
| 19 | WP3147132 Whirlpool Surface Element |
| 23 | Cooktop Support |
| 24 | bracket, element (1.5 KW) |
| 25 | bracket, element (2.0 KW) |
| 26 | Spring, Leaf |
| 27 | hex nut (8) |
| 28 | Clip |
| 30 | cover, vent (almond) |
| 30 | Clip, Vent Cover |
| 30 | Cover, Vent (White) |
