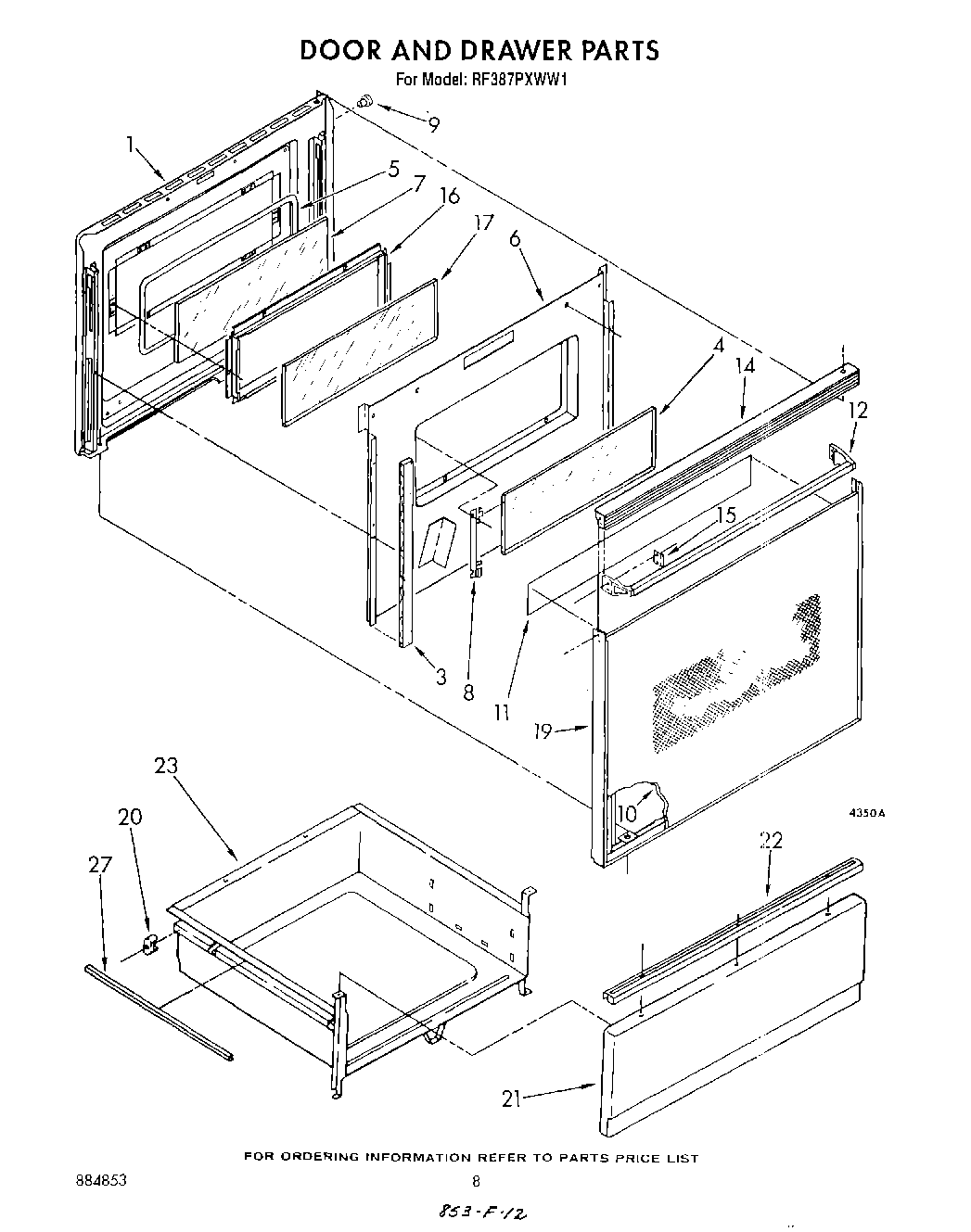

RF387PXWW1 06 – DOOR AND DRAWER , LITERATURE AND OPTIONAL

RF387PXWW1 06 – DOOR AND DRAWER , LITERATURE AND OPTIONAL

Written by

in

RF387PXWW1 06 – DOOR AND DRAWER , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT884853
WPL LIT3149918
WPL LIT3149775
511873 Whirlpool Refrigerator Paint
WPL LIT3149507
WPL LIT3148614
1Back Splash (Screw (4) 10AB x 1/2“)
1Liner, Door
3Seal, Flange (2)
4Glass, Reflective
5Seal, Door
6Retainer,
7WP3169203 Whirlpool Door Glass
8Retainer, Glass (2)
9Bumper (4)
10Glass, Panel (Black Model)
11Foil, Door
12Handle, Oven Door
12WP355515 Whirlpool Screw
14Top, Door (Black Model)
15Clip, Mtg (2)
16Frame, Inner
16Screw
19Frame, Door
20Screw, 10A x 1/2 (2) (Black)
20Glide, Rear (2)
21WP488787 Whirlpool Refrigerator Screw
21Panel, Drawer (Almond)
21Panel Drawer (White)
22WP488627 Whirlpool Refrigerator Screw
22Handle, Drawer
23Drawer, Utility
27Leveler (Thinner) (2oz.)
2718 Ga. 80~c Rating (Red)
27Wire (14 Ga. 200 c Brown)
271
27dressing, element
27Enamel, Coffee (1 Qt. Uncut)
27Rotisserie Kit (RCK 81)
27Enamel, New Avocado (1 Qt. Uncut)
27Golden Harvest (Uncut)
27Protector, Drawer (2)
27Grease
278212471 Whirlpool Oven Paint
27Wire (12 Ga. 150 c Black)
27Wire (14 Ga. 150 c Yellow)
27350942 Whirlpool Spray Paint
27WPL 72112
27Platinum (Uncut)
27Enamal, Toast (1 Qt. Uncut)
27Paint, Spray (13 Oz.) (Platinum)
27Toast
27Golden Harvest
2772113 Whirlpool Touch-Up Paint
2772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
27Almond (Uncut)
27WP72107 Whirlpool Touchup
27799344 Whirlpool Refrigerator Paint
2772017 Whirlpool Appliance Touch-Up Paint White
27350956 Whirlpool Spray Assembly
27WPL 799832
27WPW10208653 Whirlpool Insulation
27Wire (14 Ga. 150 c Orange)
27Wire (14 Ga. 150 c Green)
27Wire (14 Ga. 150 c Brown)
27Wire (14 Ga. 150 c Blue)
27Paint, Spray 13 Oz. (Avocado)
27242831 Whirlpool Oven Wire
27paint, spray 13 oz. (coffee)
27Paint, Touch-Up 1/2 Oz. (Coffee)
2772109 Whirlpool Dacor Avocado Touch-Up Paint
27285006 Whirlpool Spray
27Wire, 25“ Roll (White 14 GA.)
27Wire, 25` Roll (Red 14 Ga.)
27Wire, 25` Roll (Black 14 Ga.)
27FOIL, ALUMINUM OVEN (18“ X 25 )
27350930 Whirlpool White Spray Paint
