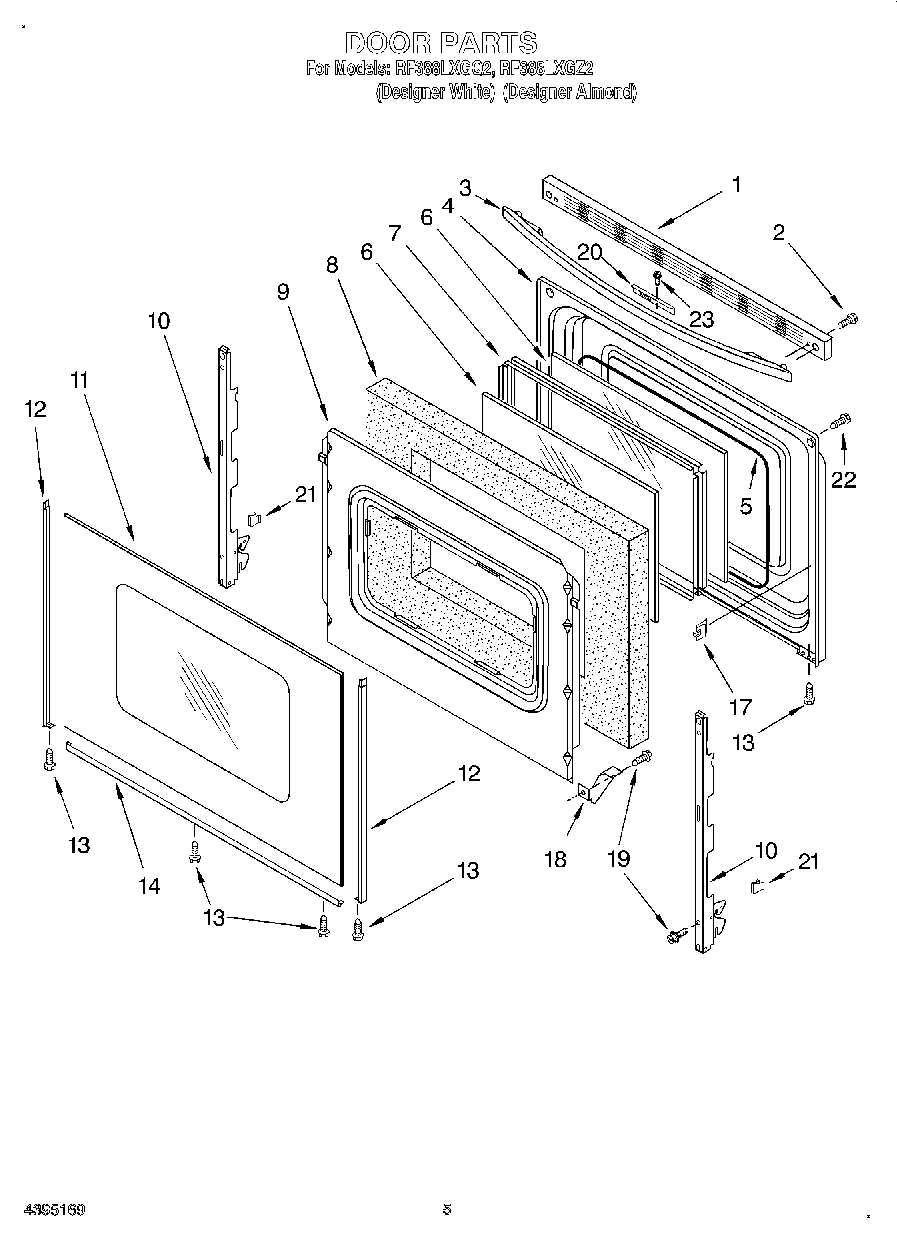

RF388LXGQ2 04 – DOOR

Products

Position	Product
1	Trim, Door Top (Almond)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	Handle, Door (Almond)
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	Glass, Outer Door (Almond)
11	WP8053834 Whirlpool Door Glass
13	W10491985 Whirlpool Screw
14	8184860 Whirlpool Oven Door Trim
14	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
17	Clip, Glass (4)
18	WP3196794 Whirlpool Glass Bracket
19	WP3196175 Whirlpool Screw
20	Bracket, Latch
21	WP3196925 Whirlpool Clip Assembly
22	WP179051 Whirlpool Screw
23	WP3400832 Whirlpool Screw
