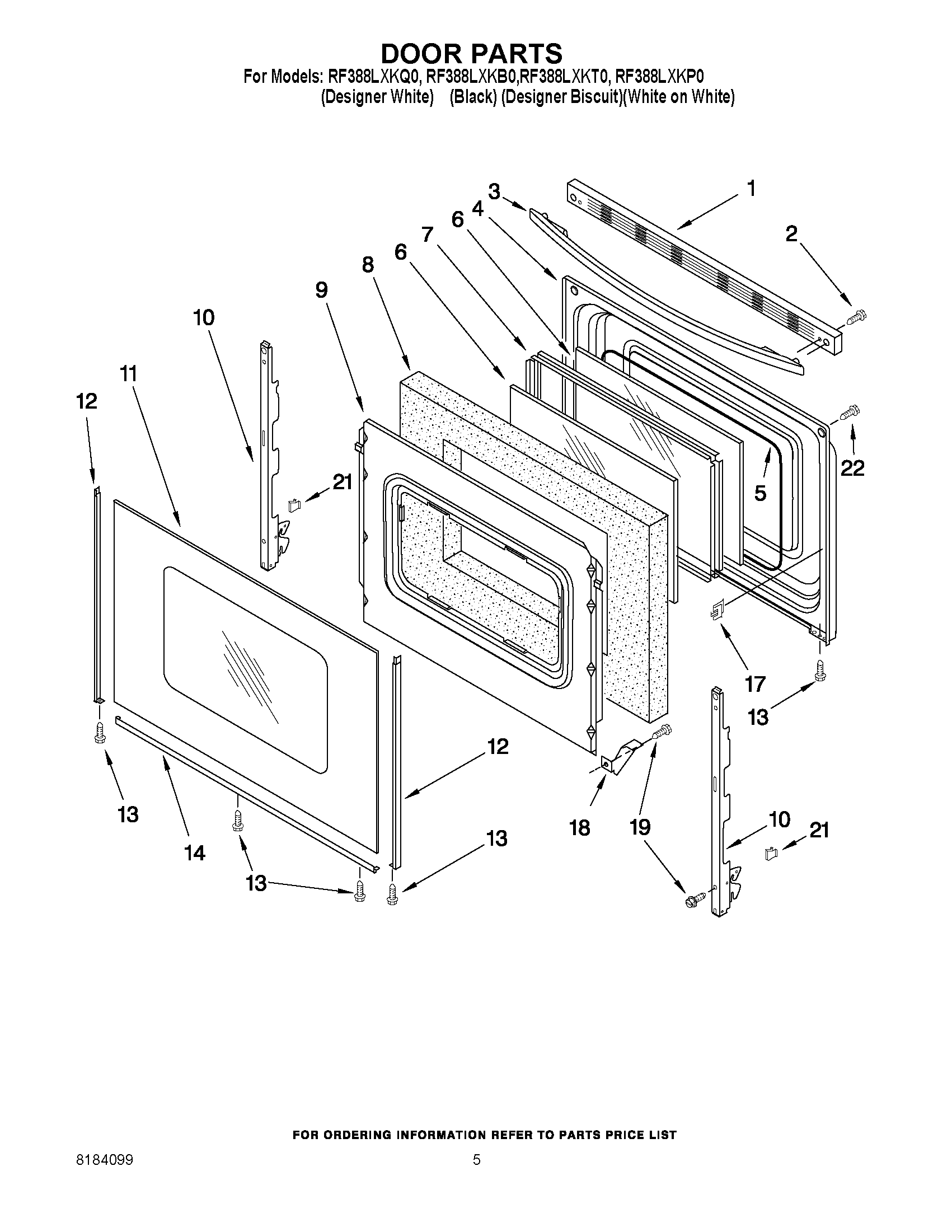

RF388LXKP0 04 – DOOR PARTS

RF388LXKP0 04 – DOOR PARTS

Written by

in

RF388LXKP0 04 – DOOR PARTS

Products

PositionProduct
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Black)
1Trim, Top (Biscuit)
2WP3196164 Whirlpool Screw
3WPW10202216 Whirlpool Door Handle
3WPW10202217 Whirlpool Door Handle
3Handle, Door (Biscuit)
4Liner, Door
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WP8053807 Whirlpool Oven Door Hinge
11WPW10118455 Whirlpool Door Glass Assembly
11WP8053834 Whirlpool Door Glass
11Glass, Outer Door (Biscuit)
13W10491985 Whirlpool Screw
148184858 Whirlpool Door Trim
148184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
148184860 Whirlpool Oven Door Trim
17Clip, Glass (4)
18WP3196794 Whirlpool Glass Bracket
19WP3196175 Whirlpool Screw
21WP3196925 Whirlpool Clip Assembly
22WP179051 Whirlpool Screw
