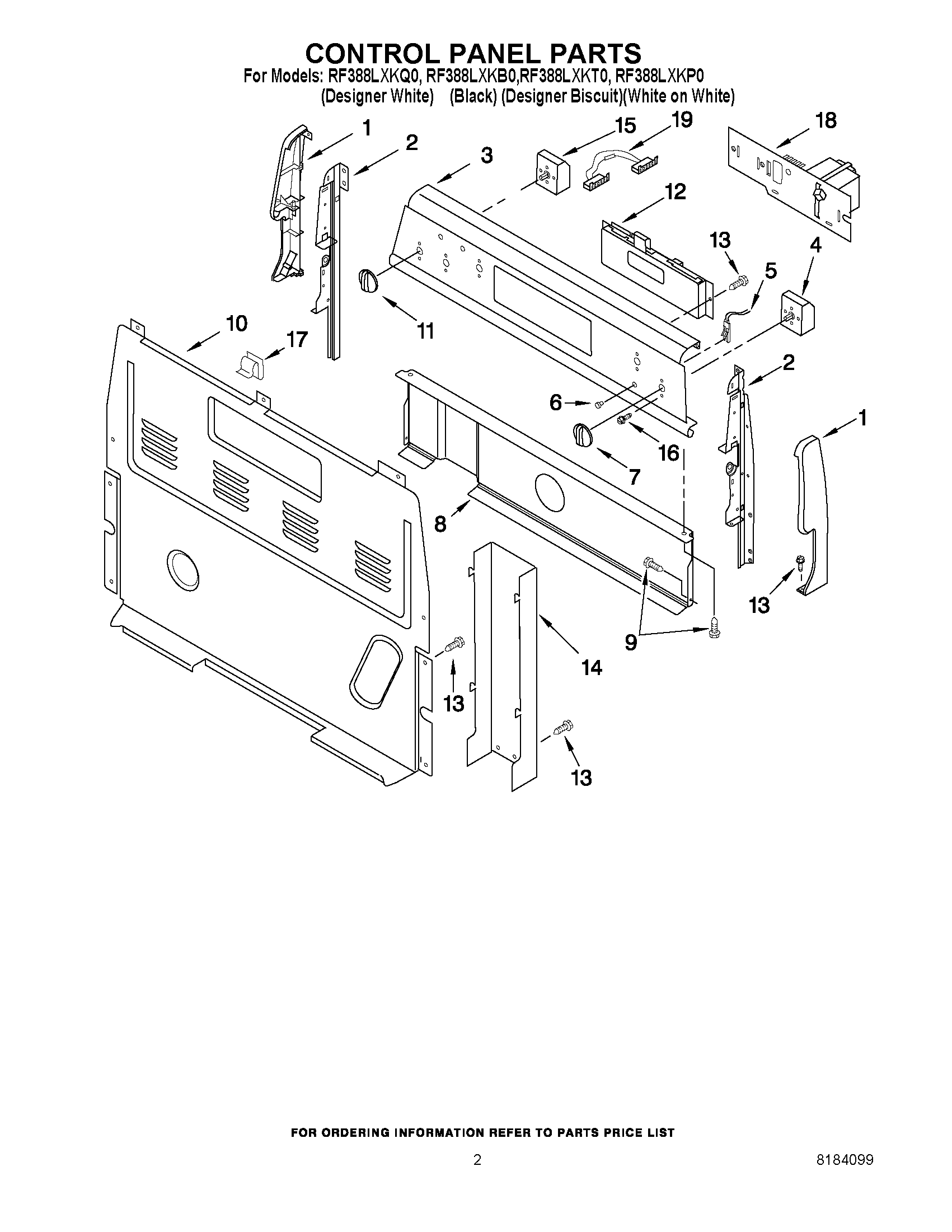

RF388LXKQ0 02 – CONTROL PANEL PARTS

RF388LXKQ0 02 – CONTROL PANEL PARTS

Written by

in

RF388LXKQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Biscuit Left Hand)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
1Endcap (Biscuit Right Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (White)
3Panel, Backguard (Black)
3Panel, Backguard (Biscuit)
4WP3148952 Whirlpool Oven Infinite Switch
4WP3149400 Whirlpool Oven Infinite Switch
4WP3149404 Whirlpool Oven Surface Element Switch
5Light, Indicator (Surface Unit (2))
5Light, Indicator (Accusimmer)
6WP3196068 Whirlpool Light Lens
7WP8522565 Whirlpool Knob
7Knob, Control (4) (Biscuit)
7WP8522566 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Knob, Accusimer (Biscuit)
11Knob, Accusimer (White)
11Knob, Accusimer (Black)
12Control, Range (Black)
12Control, Range (Biscuit)
12Control, Range (White)
13SCREW
14WPW10326122 Whirlpool Black Cover
15Switch, Rotary
16WP3400882 Whirlpool Screw
17WP8273564 Whirlpool Clip
18Power Supply, PCA
19Jumper w/ Fuse
