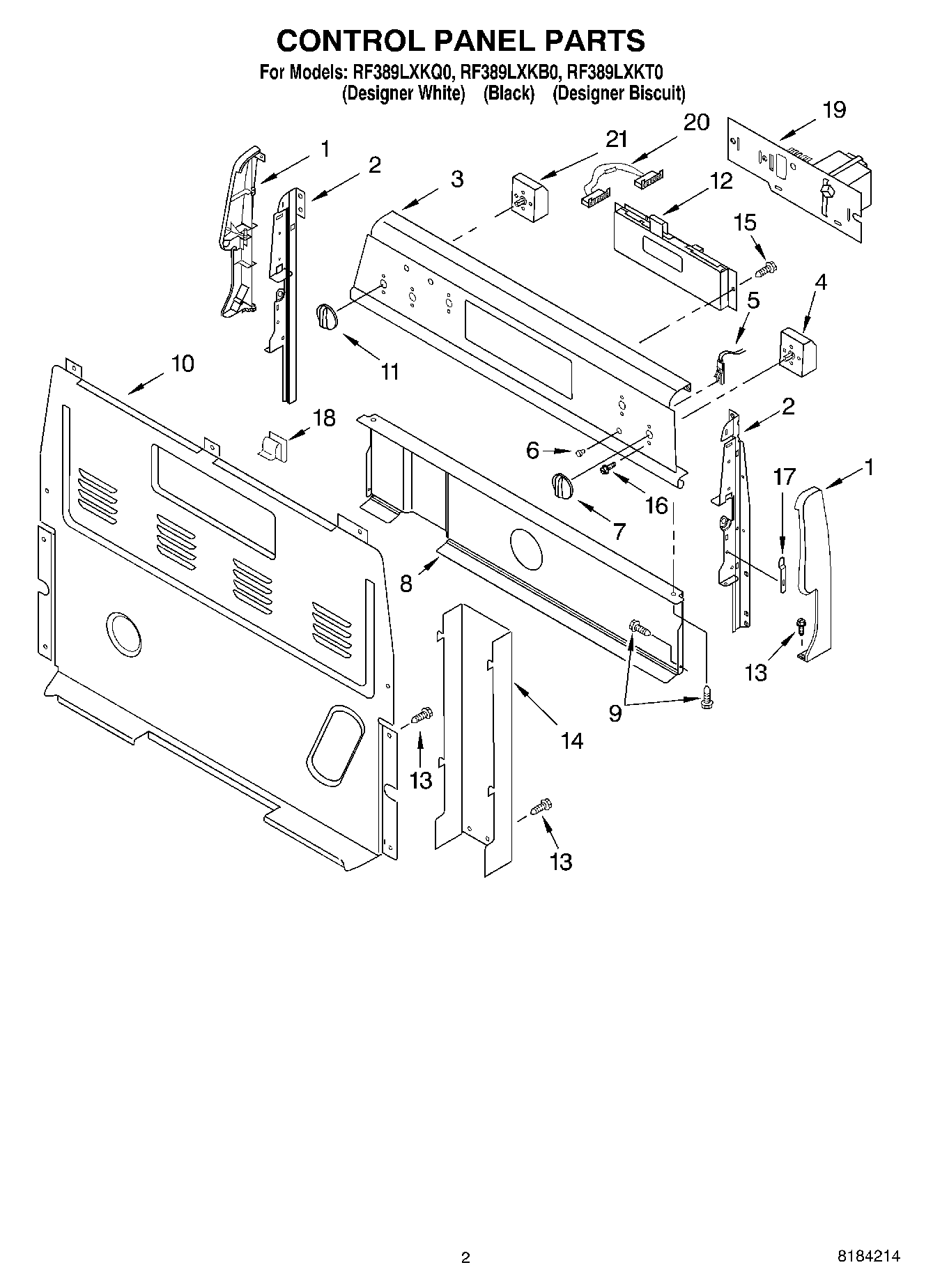

RF389LXKQ0 02 – CONTROL PANEL

RF389LXKQ0 02 – CONTROL PANEL

Written by

in

RF389LXKQ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Biscuit Left Hand)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
1Endcap (Biscuit Right Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Biscuit)
3Panel, Backguard (Black)
3Panel, Backguard (White)
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5Light, Indicator (Surface Unit (2))
5Light, Indicator (Accusimmer)
6WP3196068 Whirlpool Light Lens
7WP8522565 Whirlpool Knob
7Knob, Control (4) (Biscuit)
7WP8522566 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Knob, Accusimer (White)
12Control, Range (Biscuit)
12Control, Range (Black)
12Control, Range (White)
13SCREW
14WPW10326122 Whirlpool Black Cover
15WP3196170 Whirlpool Screw
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
18WP8273564 Whirlpool Clip
19Power Supply, PCA
20Jumper w/ Fuse
21Switch, Rotary
